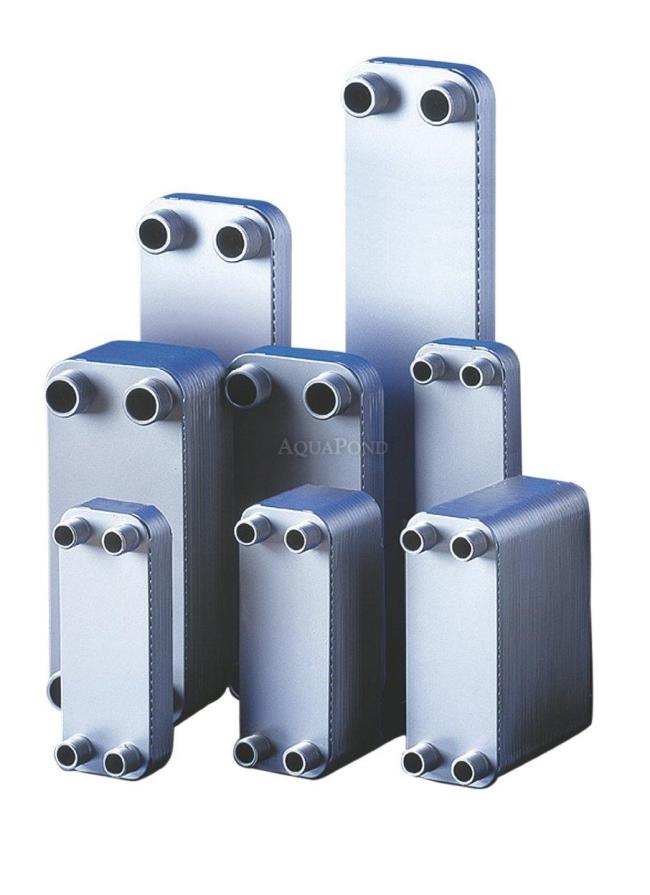

Secespol OVBD 62 Plate Heat Exchanger, 62 kW
Secespol OVBD 62 Plate Heat Exchanger, 62 kW
Description
Small dimensions, stainless steel connection, easy installation, suitable for various media Read more
-
Plate Heat Exchanger Secespol OVBD 62, 62 kW
It is suitable for both outdoor and indoor pools and hot tubs. The special plate design ensures high heating output in a compact size and high efficiency for quickly heating the pool. The heat exchangers achieve a temperature increase of up to 15°C between the inlet and outlet of the exchanger.
The exchanger is connected with an external ¾" thread for both heating water and pool water. OVBD exchangers must be connected to the pool circuit via a bypass. This is due to the smaller connection openings. On the other hand, thanks to the smaller openings, the water flows more slowly and the exchanger delivers higher performance.
OVBD Plate Heat Exchanger Design
The exchanger plates have special profiling that ensures a slower flow of the heating water, thereby increasing the exchanger’s performance.
The plates are pressed from corrosion-resistant AISI 316 stainless steel. The individual plates are vacuum-brazed with copper and nickel. The OVBD exchanger is a compact, non-separable unit.
Installation of the OVBD Plate Heat Exchanger
OVBD plate heat exchangers must be installed in a vertical position. Any other position prevents sufficient water flow and perfect heat transfer. The exchanger connection threads must not be subjected to any excessive pressure. If the supply piping is long and could place a load on the threads, the pipes must be supported.
Install the exchanger on a base plate or on a wall using brackets (not included). Smaller exchangers with fewer than 30 plates can be mounted directly on the pipes. For a specific installation, local conditions must be taken into account.
Technical Specifications
- Output: 62 kW
- Maximum heating medium temperature: 230°C
- Minimum heating medium temperature: -195°C
- Pool water connection: external thread 1“
- Pool water flow rate: 3.6 m3 / h
- Pressure drop: 17.9 kPa
- Heating water connection: external thread 1“
- Heating water flow rate: 3.7 m3 / h
- Heating water pressure drop: 17.3 kPa
- Maximum pressure: 30 bar
- Plate material: corrosion-resistant AISI 316 stainless steel
- Number of plates: 40
- Brazing material: copper, nickel
- Weight: 7 kg
-
