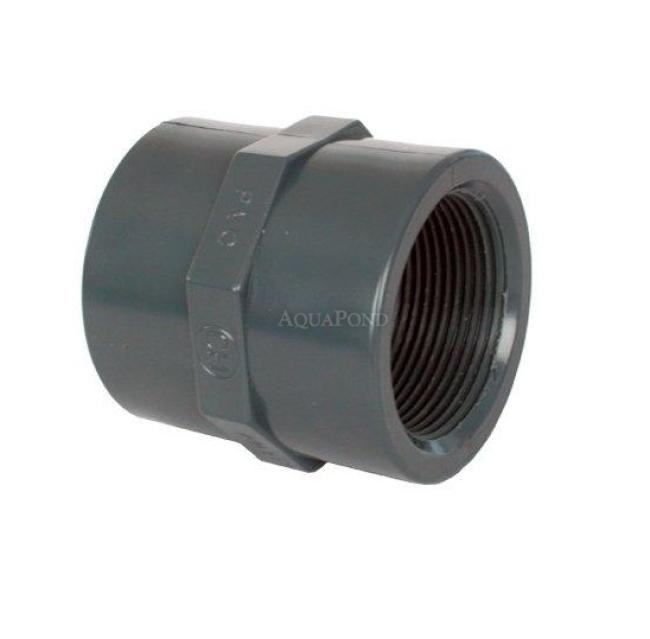

PVC fitting - Coupling 50 mm x 1 1/2", DN=50/40 mm, glue / internal thread
PVC fitting - Coupling 50 mm x 1 1/2", DN=50/40 mm, glue / internal thread
Description
PVC coupling 50 mm, connection - glue x internal thread, grey color. Read more
-
PVC Fitting - Coupling 50 mm x 1 1/2", DN=50/40 mm, solvent weld / internal thread
The advantage of PVC fittings is easy handling, simple installation, and chemical resistance.
This PVC-U pressure fitting is suitable for piping in filtration systems for swimming ponds, pools, ornamental ponds, fish farming tanks, and similar applications. The coupling with internal thread is designed to transition from a threaded connection to a standard PVC pipe or flexible hose with an outer diameter of 50 mm. It is most commonly used to connect equipment with a 1 1/2" external thread. Never glue the threaded connection. Use PTFE tape or sealing thread to seal the joint.
Before gluing, all joints must be thoroughly cleaned. Use Tangit or Griffon. Apply a thin layer of Tangit or Griffon adhesive to both the fitting and the pipe, then press the parts together. Allow at least 5 minutes to dry. Pool adhesives cure in 10–12 hours.
- Connection: solvent weld / threaded
- Solvent weld: internal
- Threaded (int.): 1 1/2"
- Use: for connecting pipes, hoses
- Outer diameter (d): 65 mm
- Inner diameter (DN): 50 mm / 40 mm
- Weight: 0.13 kg
- Color: gray
-
