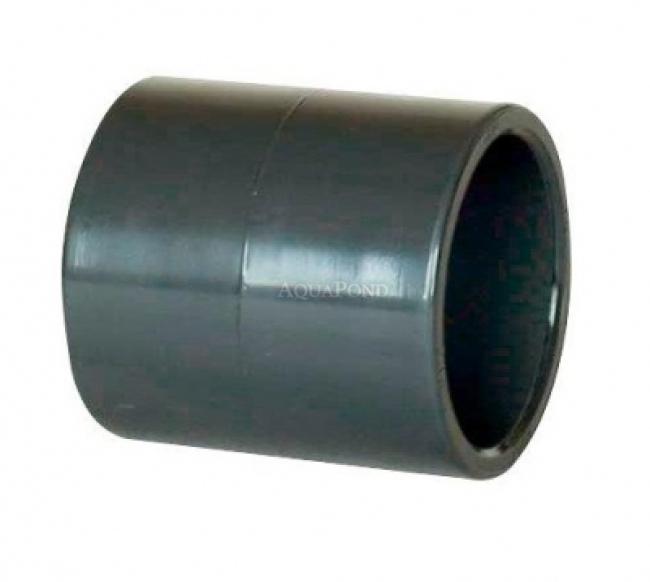

PVC Fitting - Coupling 20 mm, DN=20 mm, solvent weld/solvent weld, socket

The advantage of PVC fittings is easy handling, simple installation, and chemical resistance.

This pool PVC coupling – socket is used to connect a PVC pipe or flexible hose. The pipes are glued into the inside of the coupling. Do not glue the pipes to the outside of the coupling. It is not 100% straight, so the joints will not seal properly. Before gluing, all joints must be thoroughly cleaned. Use Tangit or Griffon. Apply a thin layer of Tangit or Griffon adhesive to both the coupling and the pipe, then press the joints together. Allow at least 5 minutes to dry. Pool adhesives cure in 10–12 hours.

• Connection: solvent weld/solvent weld
• Bonding: internal
• Use: for connecting pipes, hoses
• Outer diameter (d): 27 mm
• Inner diameter (DN): 20 mm
• Weight: 0.01 kg
• Color: gray
