Oase BioTec ScreenMatic² 90000 - pond flow-through filter

Description

With the new Biotec Screenmatic system, removing coarse debris is even easier and safer. Solid particles are removed from the filtration system via the separation screen, and through programmed cleaning ... Read more
Product code: 46178

  • Oase BioTec ScreenMatic² 90000 - pond flow-through filter

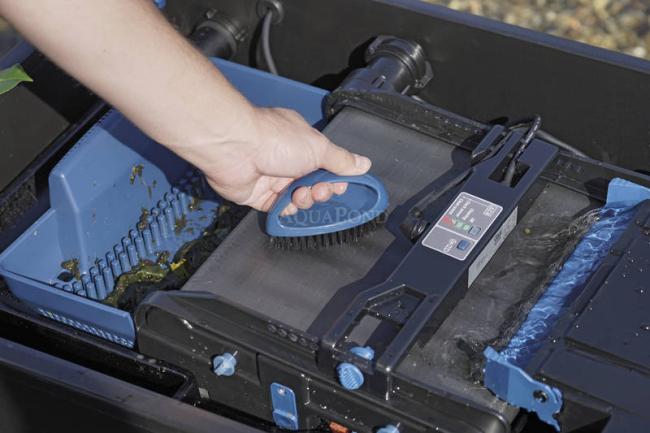

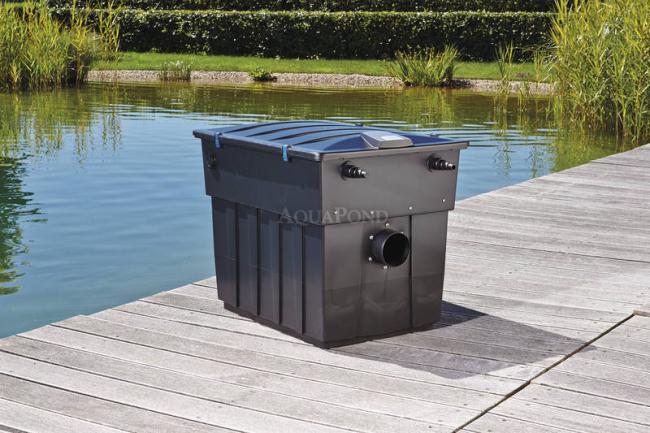

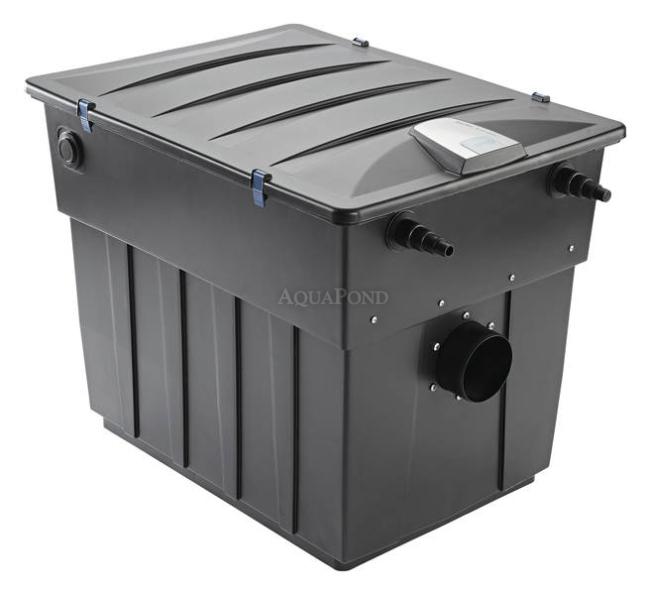

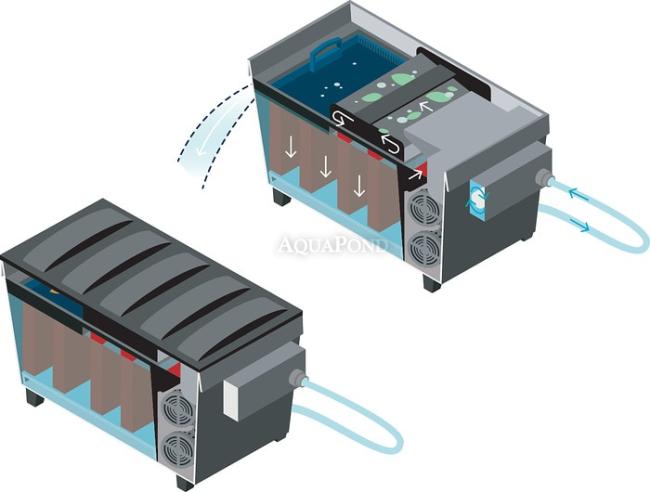

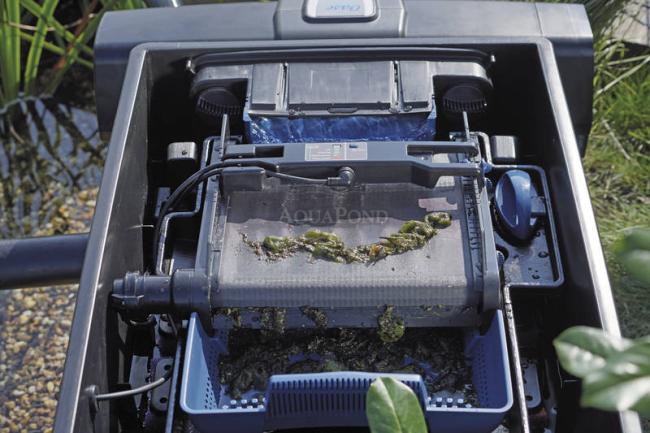

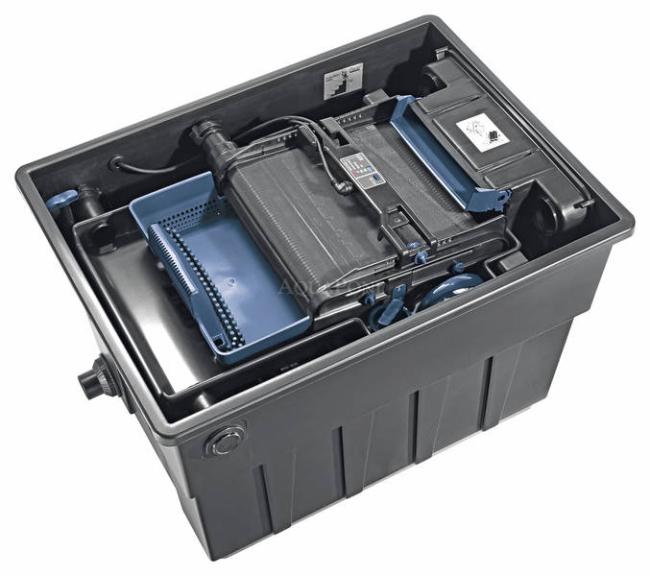

    A highly efficient, long-lasting flow-through filter for ponds up to 140 m3, requiring very little maintenance, as coarse debris is separated before entering the filter: the double-sealed motor ensures a much longer service life. The adjustable automatic cleaning system delivers highly effective debris separation. The water distributor without narrow points prevents clogging. Innovative debris barriers prevent the filter from being washed out. Cleaning is very convenient: the filter belt cleans itself and the filter foams are cleaned directly in the filter.

    Benefits

    • Includes the OASE crystal-clear water guarantee
    • Coarse debris separation before entering the filter

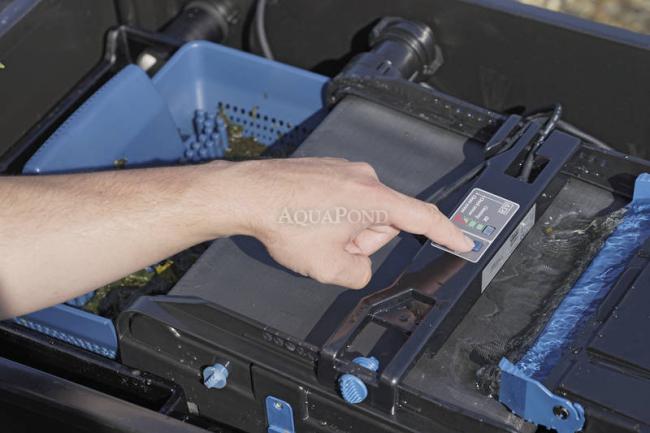

    • The filter belt is driven automatically; adjustable automatic cleaning system that controls the belt movement according to the level of contamination, including LED function control

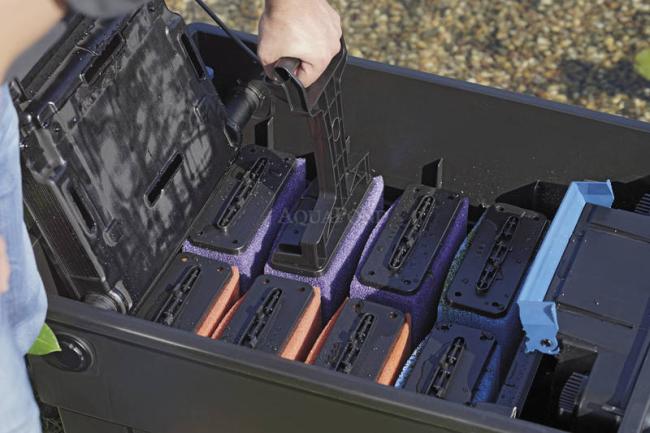

    • Filter foams can be cleaned directly in the filter
    • Bottom drain and slide gate for removing debris from the filter system
    • Various filter media for optimal development of filter biology
    • Use PhosLess filter columns as needed to reduce filamentous algae (optional accessory)

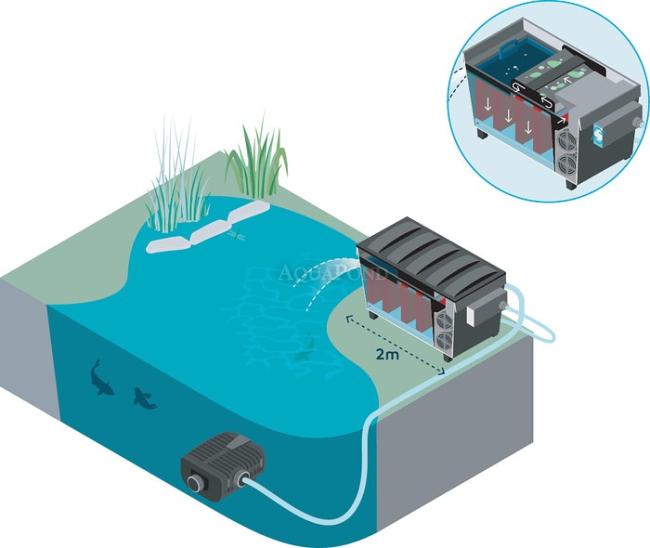

    • Optimally matched to OASE AquaMax Eco filter pumps
    • Direct connection option for Bitron C and Eco UVC clarifiers
    • Even water distribution across the filter belt

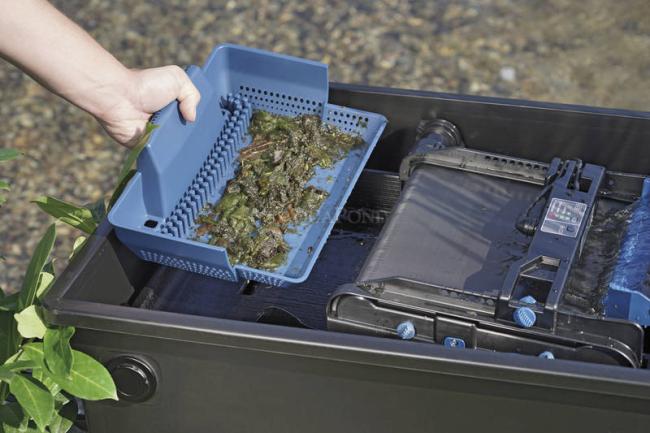

    • Large-capacity debris basket and simplified handling

    Details

    Technical specifications

    • Dimensions: 788 x 590 x 645 mm
    • Voltage: 230 V / 50 Hz, 12 V / AC
    • Power consumption: 5 W
    • 12 V cable length: 2.10 (mains section) + 5.00 m
    • Weight: 27 kg
    • Warranty: 2+1 years
    • Number of blue filter foams: 4
    • Number of red filter foams: 6
    • Number of purple filter foams: 6
    • Special filter granulate: 5 kg
    • Temperature indicator: No
    • Coarse debris filtration: 300 µm
    • Inlet connections DN - (inner diameter): 25 / 32 / 38 mm
    • Connection: Bitron C 36 - 110 W, Bitron Eco 120 - 240 W
    • Outlet DN - (inner diameter): 110 mm
    • Drain DN - (inner diameter): 50 mm
    • Min-max water flow: 8000 l/h - 12500 l/h
    • Pond volume without fish: 90 m3
    • Pond volume with fish: 45 m3
    • Pond volume with breeding fish: 22.5 m3



    Click here to view the video

    BioTec ScreenMatic²  - flow-through filters

    Spare parts list



    You can find the complete spare parts list here:



    Spare parts for Oase BioTec ScreenMatic² 90000 - pond flow-through filter
