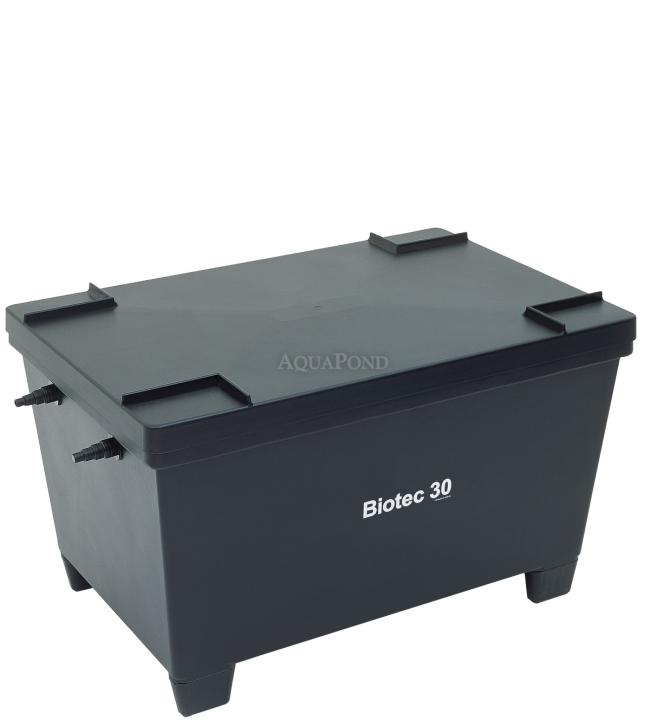

Oase BioTec 30 - pond flow-through filter - DISCONTINUED


Oase BioTec 30 - pond flow-through filter - DISCONTINUED
Oase BioTec 30 - pond flow-through filter - DISCONTINUED
Oase BioTec 30 - pond flow-through filter - DISCONTINUED
Oase BioTec 30 - pond flow-through filter - DISCONTINUED
Oase BioTec 30 - pond flow-through filter - DISCONTINUED
Oase BioTec 30 - pond flow-through filter - DISCONTINUED
Oase BioTec 30 - pond flow-through filter - DISCONTINUED

Oase BioTec 30 - pond flow-through filter - DISCONTINUED

Description

Mechanical-biological flow-through filter developed for cleaning large ornamental ponds (up to 120 m3 without fish), KOI ponds and ponds with larger fish (up to 60 m3)  DISCONTINUED - replaced ... Read more
Product code: 55421

  • Oase BioTec 30 - Pond Flow-Through Filter

    DISCONTINUED - replacement Oase BioTec ScreenMatic² 145000 - Pond Flow-Through Filter

    A highly efficient, long-lasting flow-through filter with a large surface area for the settlement of filter biological media, ensuring the breakdown of pollutants and nutrients through highly effective mechanical-biological technology. It features a bottom drain for separating coarse debris and is suitable for garden ponds up to 120 m³.

    Advantages

    • Large surface areas for the settlement of filter biology
    • Low-maintenance multi-zone filtration system with long operating times
    • For large ponds with a volume of up to 120 m³

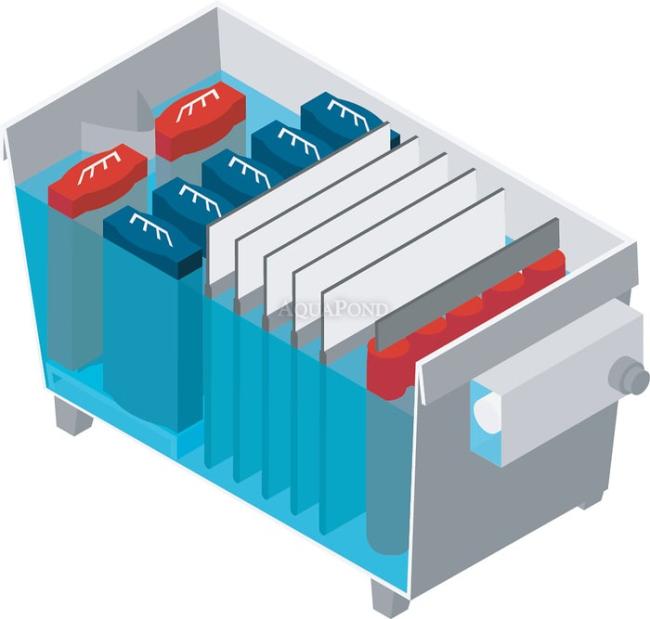

    • Multi-zone filter with special filter sponges
    • Mechanical-biological reduction of pollutants and nutrients
    • Large filter settlement areas

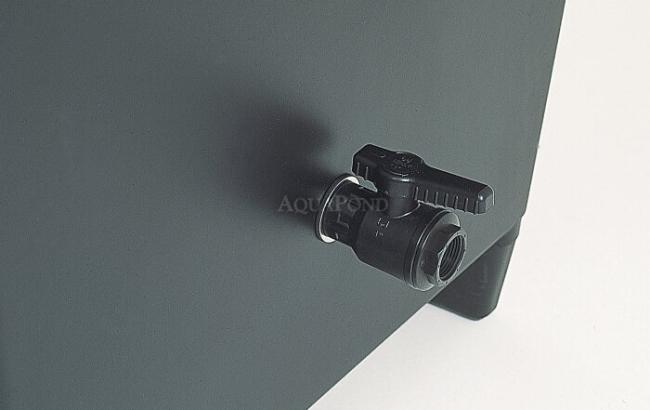

    • Bottom drain for flushing out coarse debris
    • Easy cleaning and maintenance
    • Can be connected to an OASE UVC Bitron clarifier
    • Robust GRP material and premium workmanship
    • Includes the OASE crystal-clear water guarantee
    Photogallery

    Details

    Photogallery

    Photogallery

    Photogallery



    Technical Specifications

    • Dimensions: 1200 x 800 x 730 mm
    • Weight: 81.5 kg
    • Warranty: 3 years

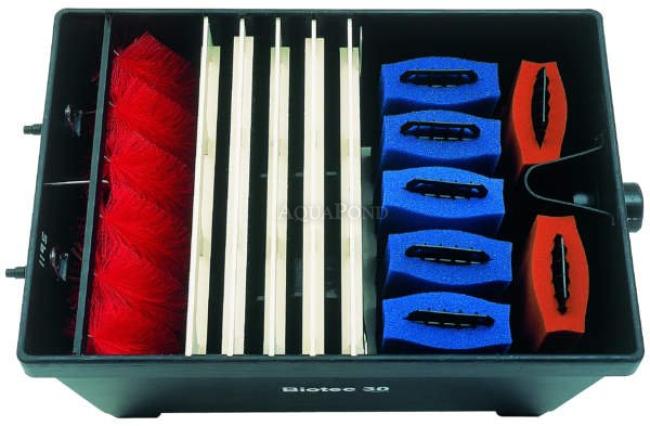

    • Number of blue filter foams: 10
    • Number of red filter foams: 4
    • Inlet connections DN - (inner diameter): 25 / 32 / 38 / 50 mm - 1", 1 ¼", 1 ½", 2"
    • Connection: Bitron C 72 - 110 W, Bitron Eco 120 - 240 W

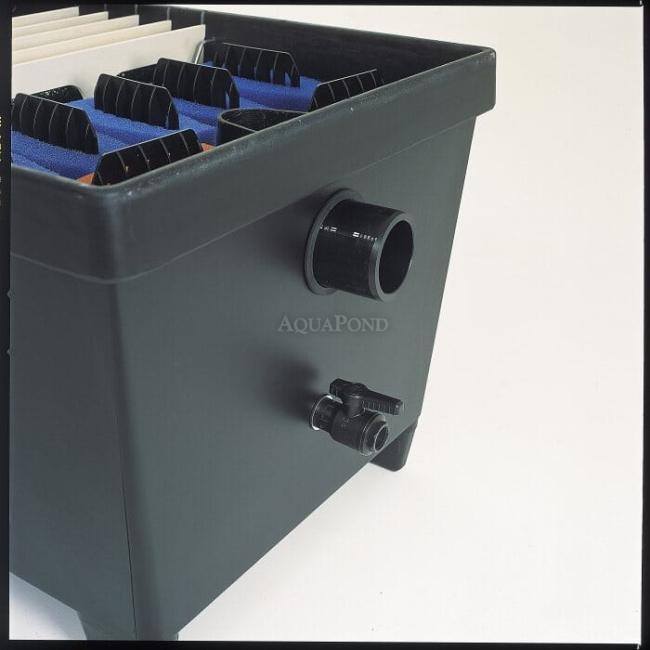

    • Outlet DN - (inner diameter): 110 mm
    • Drain DN - (inner diameter): 75 mm
    • Max. flow rate: 23000 l / h
    • Pond volume without fish: 120 m3
    • Pond volume with fish: 60 m3
    • Pond volume with breeding fish : 30 m3



    Photogallery

    Spare Parts List



    The complete list of spare parts can be found here:



    Spare parts for Oase BioTec 30 - Pond Flow-Through Filter


    Photogallery
