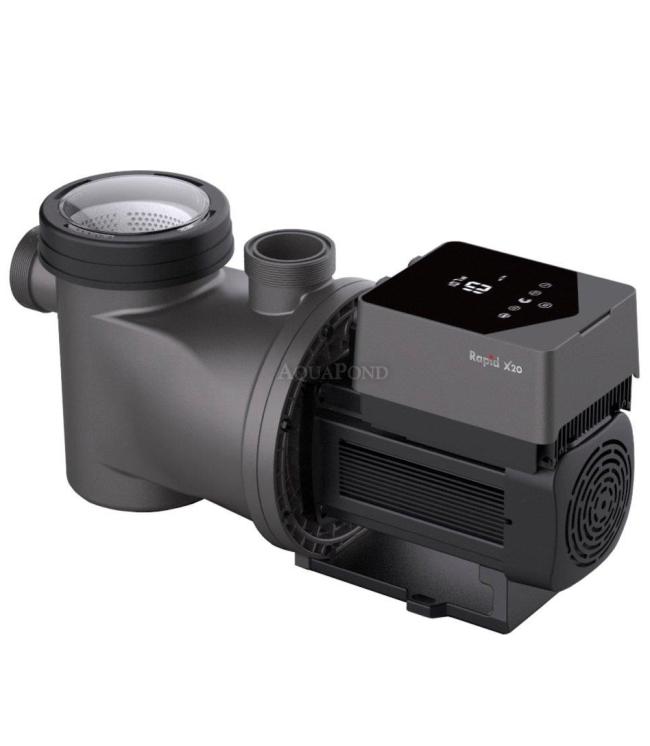

Inverter Pump iWP 22 - iGarden Fairland X20 1.2 kW, with Wi-Fi Module 5 - 23 m3/h - for Pools up to 70 m3
|
 |
Inverter Pump iWP 22 - iGarden Fairland X20 1.2 kW, with Wi-Fi Module 5 - 23 m3/h - for Pools up to 70 m3
Description
Inverter pump equipped with a frequency converter, PM motor, and touch display. It is suitable for fresh water as well as salt water with a salt concentration of up to 5 g/l. Read more
-
Inverter Pump iWP 22 - iGarden Fairland X20 1.2 kW, with Wi-Fi Module 5 - 23 m3/h - for Pools up to 70 m3
Inverter pump equipped with a frequency converter, PM motor, and touch display. The pump output can be automatically adjusted according to the set flow rate or motor speed, including up to 4 timers. The permanent magnet motor with variable output maximizes efficiency, extends service life, and at the same time minimizes operating costs and pump noise. Also suitable for saltwater pools. The self-priming X20 pump is suitable for both fresh and salt water treatment. Operation and parameter setting are very simple and intuitive thanks to the large touch panel.
Pump operation:
- Auto Inverter mode - automatic motor speed adjustment according to the required flow rate
- Manual Inverter mode – manual output setting in the range of 30 - 120 %
- Selection of operating modes with the press of 1 button (day/night/washing)
- Skimming function - regular cleaning of the water surface in a skimmer pool
- Wi-Fi application
External control:
- Analog input (0-10 V)
- Digital input
- Modbus communication - RS485
- Compatible with the VArio control system - control via DIN PUMPS module
Extremely quiet operation
The built-in smart inverter not only allows the product to operate in the range of 30% ~ 100% to handle various tasks such as backwashing and proper filtration, but also provides precise control of the motor and inverter drive for optimally quiet operation. As a result, noise levels are reduced from a high 60-70 dBA to a historically low level, up to 30x quieter than conventional pumps.
What is iGarden?
iGarden is a modern brand focused on smart solutions for gardens and pools, bringing automation and convenience to outdoor spaces. The core idea behind iGarden is to connect technology with design and lifestyle - the goal is to make pool or garden maintenance simple, efficient, and as low-maintenance as possible. iGarden products include robotic vacuums, smart filtration systems, pumps, heat pumps, salt chlorinators, and robotic lawn mowers, all of which together create an integrated ecosystem. Overall, iGarden combines IoT technologies, artificial intelligence, and smart sensors to turn your garden or pool into a comfortable, clear, and automated environment. The user stays in control through an app that serves as the central control point for all devices. Through the app, it is possible to monitor the pool water condition, start or schedule the robotic cleaner, set the lawn mowing schedule, regulate heat and filtration units as well as salt chlorinators, and even track energy consumption or the status of individual devices. The app also allows you to receive maintenance alerts and automatically optimize device operation according to current conditions - for example, weather or pool usage intensity. This interconnected system significantly simplifies garden and pool care, saves time and energy, and at the same time increases the comfort and aesthetics of the outdoor environment. This way, the user can relax and enjoy their outdoor space without unnecessary manual work.
Our product range from iGarden
Adjustable Flow Rate
On the control display and in the app, you can set the desired water flow rate of the pump. This flow rate is real, because the pump is equipped with a pressure gauge to measure the flow.
This option brings several additional benefits:
- If you are unsure which output is right for your pool, you can adjust the pump output as needed.
- The option to increase output, for example when water quality is worse - you can quickly filter the pool.
After setting the desired flow rate, the pump displays the current power consumption in Watts.
Control via Touch Display
Using the large display located on the pump motor, you can set all necessary parameters.
Displayed data:
- Current power input, which the pump measures at that moment
- Current output in m3 / h, the actual pump flow at that moment (can be switched to display the value in % of the pump’s maximum output, i.e. 30 - 100%)
- Currently set timer
- Timer number - up to 4 start intervals can be set, with a different output assignable to each
- Touch buttons for unlocking the display, starting, and setting
Control via the InterFlow App over Wi-Fi
For remote control away from home, you can use the InverFlow app. The pump connects to your home network, so it needs to be within range. All parameters can be set and viewed just like on the display, and consumption statistics are also available.
Package Contents
- Pump
- Cover with gasket
- Key for loosening or tightening the cover
- Internal debris basket
- Two 63 mm fittings for suction and discharge
- 3 m power cable without plug
- 1 m grounding cable
- Connecting cable for external control
- User manual
Technical Specifications
- Product type: Inverter pump with frequency converter
- Dimensions (L x W x H): 610 x 252 x 302 mm
- Output: 0.98 kW
- Speed: 880 - 3220 rpm
- Flow rate: 23 m3 / h
- Power input: 1.2 kW
- For pools up to 70 m3
- Voltage: 230 V
- Suction / discharge connection - glued: 63 / 63 mm
- Impeller material: Plastic
- Max. operating temperature: 50 °C
- Max. operating pressure: 3 bar
- Pre-filter: Yes
- Use: Suitable for both fresh and salt water with salt concentration up to 5 g / l
- For salt water up to 5 g / l (<0.5%): Yes
- Weight: 19 kg
List of Spare Parts
The complete list of spare parts can be found here:
Spare Parts - Inverter Pump iWP 22 - X20 1.2 kW, with Wi-Fi Module 5 - 23 m3/h
-
