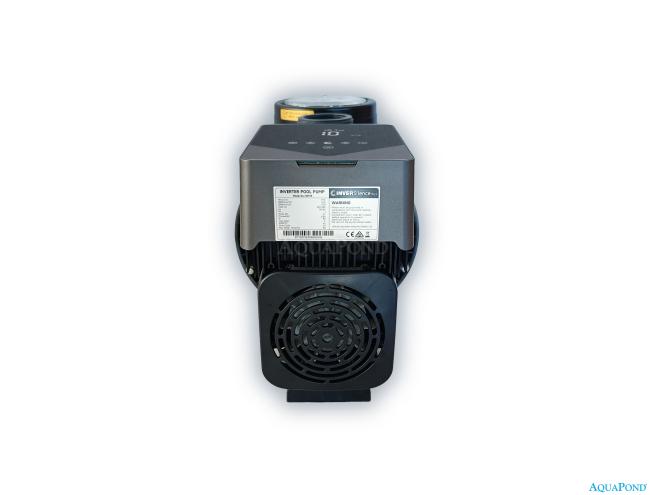

Inverter Pump iWP 15 - iGarden Fairland X20 0.8 kW, with Wi-Fi Module 5 - 14.5 m3/h - for Pools up to 50 m3

Description

Inverter pump equipped with a frequency converter, PM motor, and touch display. It is suitable for both fresh water and salt water with a salt concentration of up to 5 g/l. Read more

Product code: 573IWP015

Description
Related products

iWP 15 Inverter Pump - iGarden Fairland X20 0.8 kW, with Wi-Fi Module 5 - 14.5 m3/h - for Pools up to 50 m3

Inverter pump equipped with a frequency converter, PM motor, and touch display. The pump output can be automatically adjusted according to the set flow rate or motor speed, including up to 4 timers. The permanent magnet motor with variable output maximizes efficiency, extends service life, and at the same time minimizes operating costs and pump noise. Suitable also for saltwater pools. The self-priming X20 pump is suitable for both fresh and saltwater treatment. Operation and parameter setting are very simple and intuitive thanks to the large touch panel.

Pump operation:

Auto Inverter mode - automatic adjustment of motor speed according to the required flow rate
Manual Inverter mode – manual output setting in the range of 30 - 120%
Selection of operating modes with the press of 1 button (day/night/washing)
Skimming function - regular surface cleaning of the skimmer pool
Wi-Fi app

External control:

Analog input (0-10 V)
Digital input
Modbus communication - RS485
Compatible with the VArio control system - control via DIN PUMPS module

Extremely quiet operation

The built-in smart inverter allows not only operation of the product in the range of 30% ~ 100% to handle various tasks such as backwashing and proper filtration, but also precise control of the motor and inverter drive for optimally quiet operation. As a result, noise levels are reduced from a high 60-70 dBA to a historically low level, up to 30 times quieter than conventional pumps.

What is iGarden?

iGarden is a modern brand focused on smart solutions for gardens and pools, bringing automation and convenience to outdoor spaces. The core idea behind iGarden is to connect technology with design and lifestyle - the goal is to make pool or garden maintenance simple, efficient, and minimally demanding in terms of manual work. iGarden products include robotic cleaners, smart filtration systems, pumps, heat pumps, salt chlorinators, and robotic lawn mowers, all of which together create an integrated ecosystem. Overall, iGarden combines IoT technologies, artificial intelligence, and smart sensors to turn the garden or pool into a comfortable, clear, and automated environment. The user has control and overview through an app that serves as the central control point for all devices. Through the app, it is possible to monitor the pool water condition, start or schedule the robotic cleaner, set the lawn mowing schedule, regulate heating and filtration units as well as salt chlorinators, and even track energy consumption or the status of individual devices. The app also allows you to receive maintenance alerts and automatically optimize device operation according to current conditions - for example, weather or pool usage intensity. This interconnected system significantly simplifies garden and pool care, saves time and energy, and at the same time increases the comfort and aesthetics of the outdoor environment. The user can thus relax and enjoy their outdoor space without unnecessary manual effort.

Our product range from iGarden

Adjustable flow rate

On the control display and in the app, you can set the desired water flow rate of the pump. This flow rate is real, because the pump is equipped with a pressure gauge to measure the flow.

This option brings several additional benefits:

If you are unsure which output is right for your pool, you can adjust the pump output as needed.
The option to increase output, for example when water quality worsens - you can quickly filter the pool.

After setting the desired flow rate, the pump displays the current power consumption in Watts.

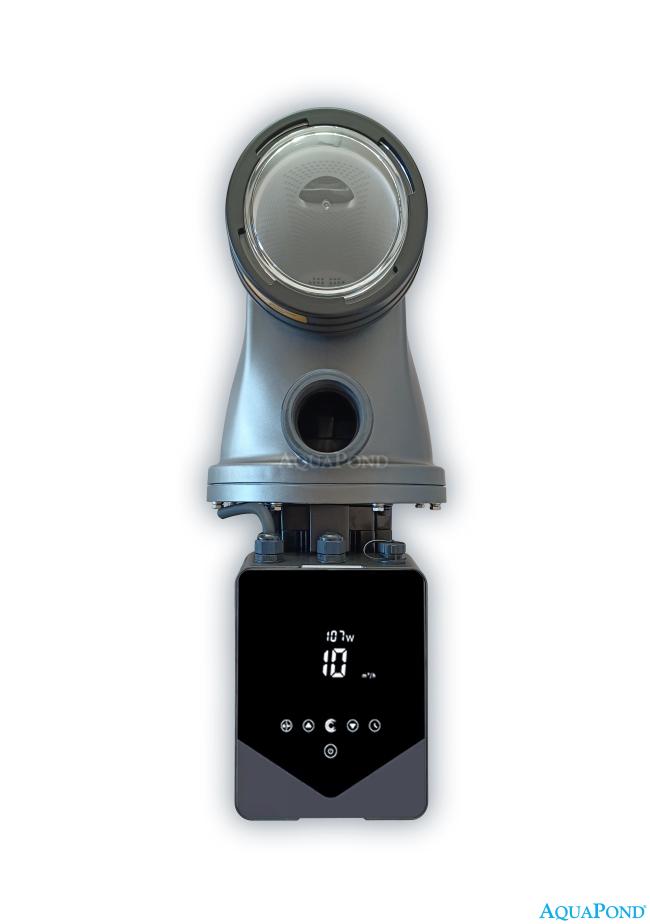

Control via touch display

Using the large display located on the pump motor, you can set all the necessary parameters.

Displayed data:

Current power input, which the pump measures at that moment
Current output in m³ / h, the actual pump flow rate at that moment (can be switched to display the information in % of the pump's maximum output, i.e. 30 - 100%)
Currently set timer
Timer number - up to 4 start intervals can be set, each with a different output assigned
Touch buttons for unlocking the display, starting, and setting

Control via the InterFlow app over Wi-Fi

For remote control away from home, you can use the InverFlow app. The pump connects to your home network, so it needs to be within range. All parameters can be set and viewed just like on the display, and consumption statistics are also available.

You can download the app for Android and iOS.

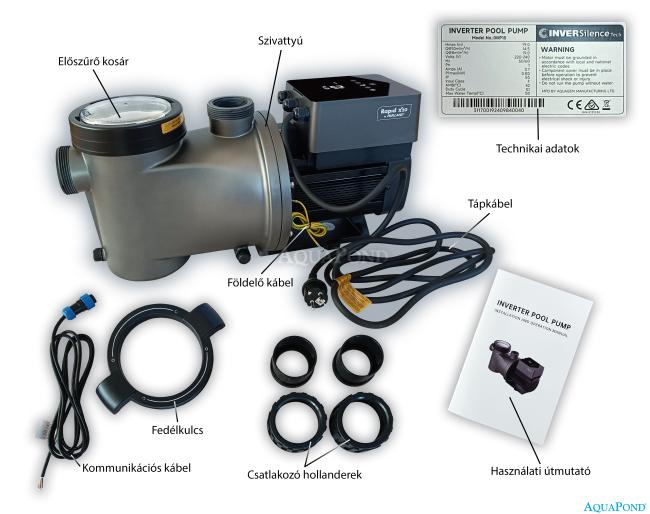

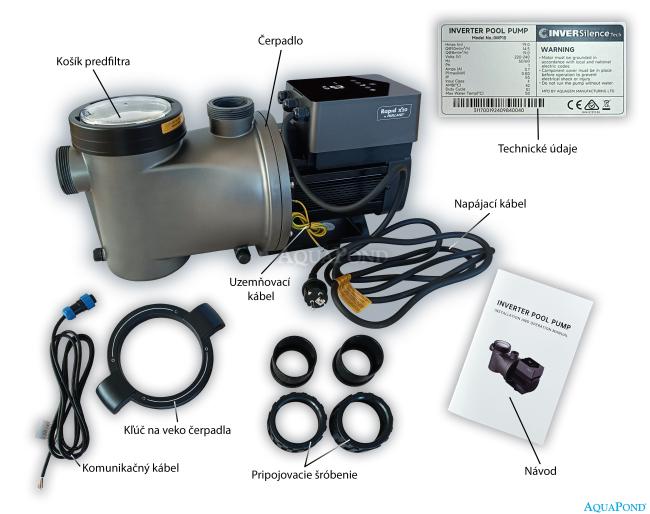

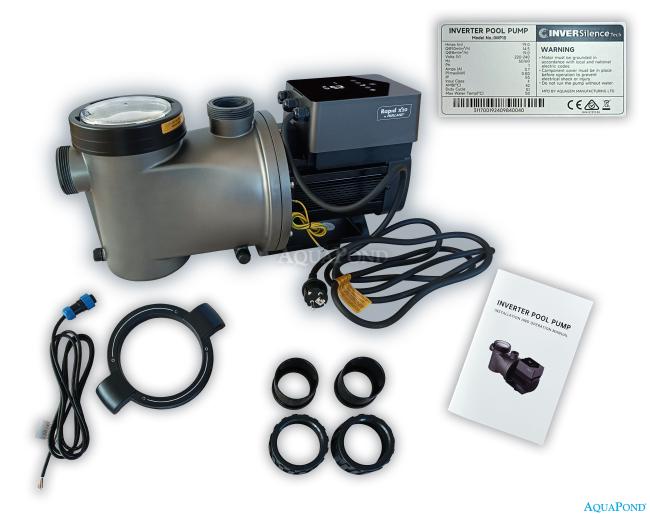

Package contents

Pump
Cover with gasket
Key for loosening or tightening the cover

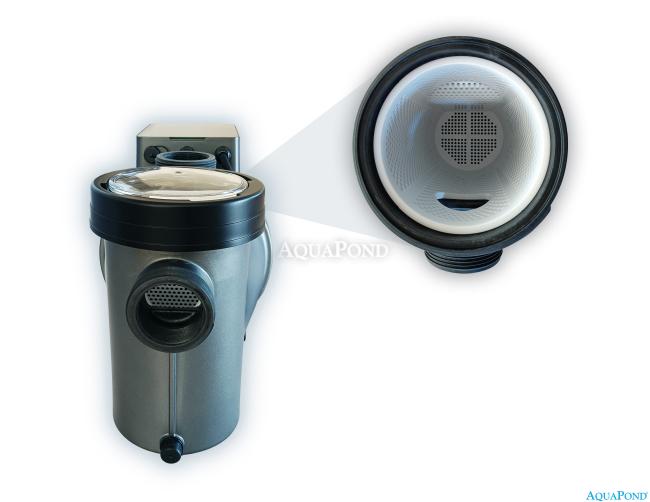

Internal debris basket
Two 63 mm unions for suction and discharge
3 m power cable without plug
1 m grounding cable
Connecting cable for external control
Instruction manual

Technical specifications

Product type: Inverter pump with frequency converter
Dimensions (L x W x H): 610 x 252 x 302 mm
Output: 0.65 kW
Speed: 880 - 3220 rpm
Flow rate: 14.5 m³ / h
Power input: 0.8 kW
For pools up to 50 m³
Voltage: 230 V
Suction / discharge connection - glued: 63 / 63 mm
Impeller material: Plastic
Max. operating temperature: 50 °C
Max. operating pressure: 3 bar
Pre-filter: Yes
Use: Suitable for both fresh and salt water with salt concentration up to 5 g / l
For salt water up to 5 g / l (<0.5%): Yes
Weight: 19 kg
