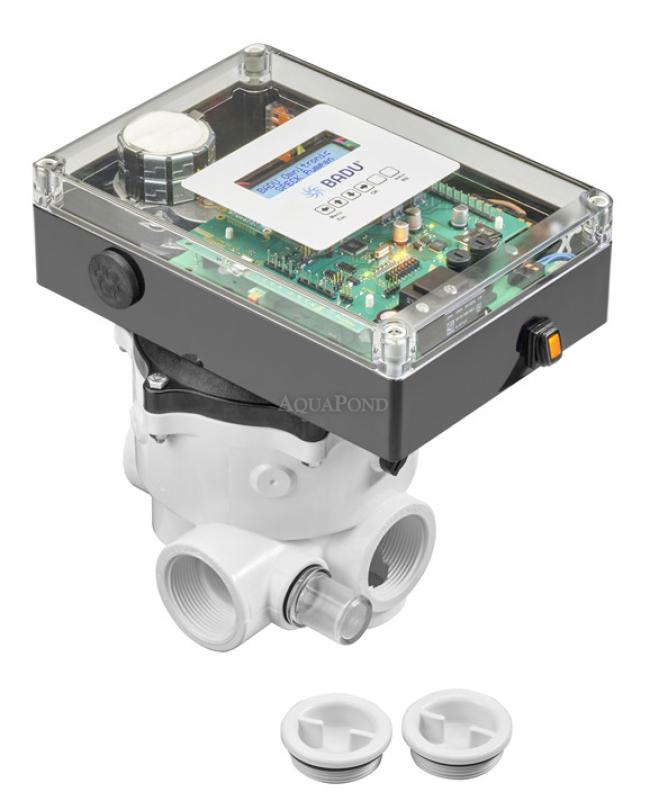

Badu OmniTronic automatic multiport valve 230 V / 50 Hz, connection 1 1/2"

Fully automatic electric valve. Using a microprocessor and programmable functions, it switches to the backwash, filtration and filter operation positions, or starts the filter pump. Possibility of a potential-free contact with a maximum load of 4 A – 250 V.

Preset filtration or backwash cycles can be started automatically, manually or remotely. This electric valve can be connected directly to the BADU Prime ECO-VS.

WARNING: Do not install lower than 3 m below the water level.

Technical parameters

• Protection rating: IPX4
• Connection (int): 1 1/2"
• Power supply: 230 V / 50 Hz

We recommend purchasing the connection set for automatic valves:

• Connection set for automatic valve SPECK 1.5" - Lisboa (code: 212020)
• Connection set for automatic valve SPECK 2" - Lisboa (code: 212021)
• Connection set for automatic valve SPECK 1.5" - Triton (code: 212012)

Downloads
