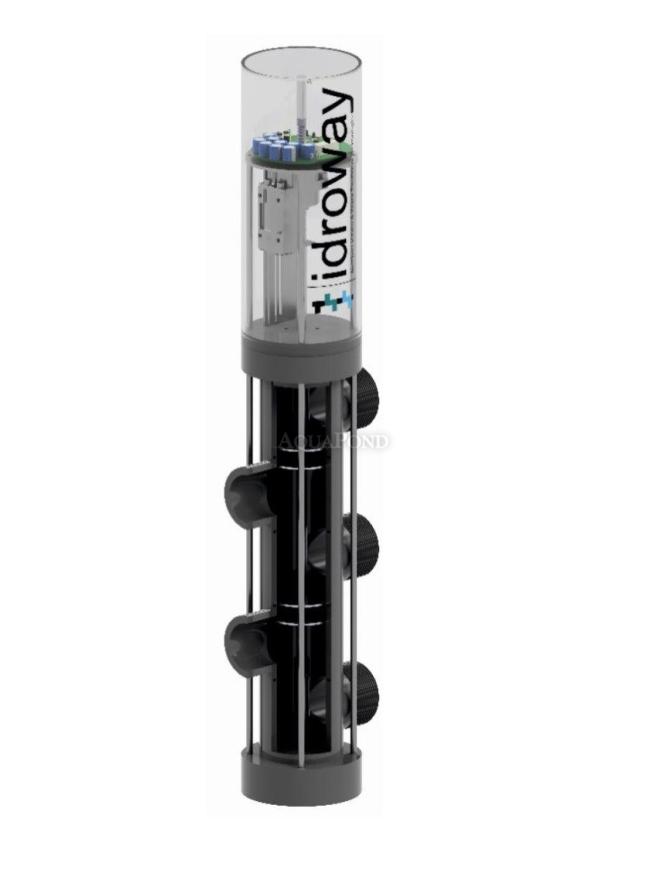

STARWAY motorized 5-way backwash valve Ø50 mm, spacing 125 mm

STARWAY is a motorized 5-way valve for automatic backwashing of sand filtration systems. For proper operation, we recommend purchasing the automatic filtration and backwash controller DIN MODULE ZELIO STARWAY.

Features:

• Easy installation
• High operational reliability
• Very low pressure loss
• Fully motorized
• 24 V DC power supply
• 1 volt-free contact
• The valve is supplied in various connection versions for the water circuit: from 50 mm to 140 mm
• Minimum filtration connection spacing – 125 mm
• Operating pressure up to 2.5 bar
• In the event of a power outage, the valve automatically switches to filtration mode
• AISI316L material and VITON seal

 Technical parameters

• Product type: Motorized backwash valve
• Connection: 50 mm
• Spacing: 125 mm
• Max. operating pressure: 2.5 bar
• Voltage: 24 V
• Weight: 4.4 kg
