BADU Eco-Drive II, 5.5 kW - frequency converter
BADU Eco-Drive II, 5.5 kW - frequency converter
Description
The frequency inverter offers a wide range of control options, e.g. direct control via buttons, digital or analog inputs. Read more
-
BADU Eco-Drive II, 5.5 kW - frequency inverter
The frequency inverter offers a wide range of control options, such as direct control via buttons, digital or analog inputs. For efficient water treatment, it is necessary to observe certain conditions, including filtration and filter backwashing. For each of these steps, several operating points must be set on the filter pump. The individual operating points can be conveniently controlled using the BADU Eco-Drive II frequency inverter, which electronically adjusts the pump motor speed according to the current demand, ensuring optimal control with regard to operating efficiency. Thanks to the pump output, the BADU Eco Drive II is especially suitable for Badu Prime pumps.
The recirculation flow can be regulated by the frequency inverter according to current conditions, for example:
- Filtration - daily operation / night operation
- Filter washing
- Filter rinsing
- Filtration during lower visitor traffic
Technical parameters
- Product type: Frequency inverter
- Pump type: 3-phase
- Power supply: 340 - 480V AC
- Output: max. 5.5 kW
- Protection rating: IP55
- Weight: 10 kg

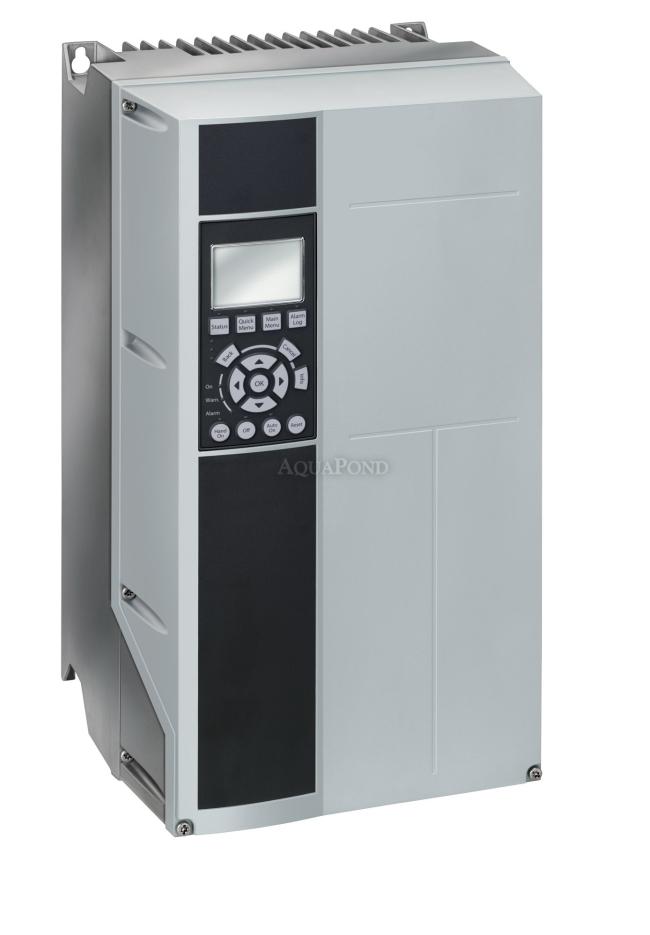

BADU Eco-Drive II frequency inverter
-
