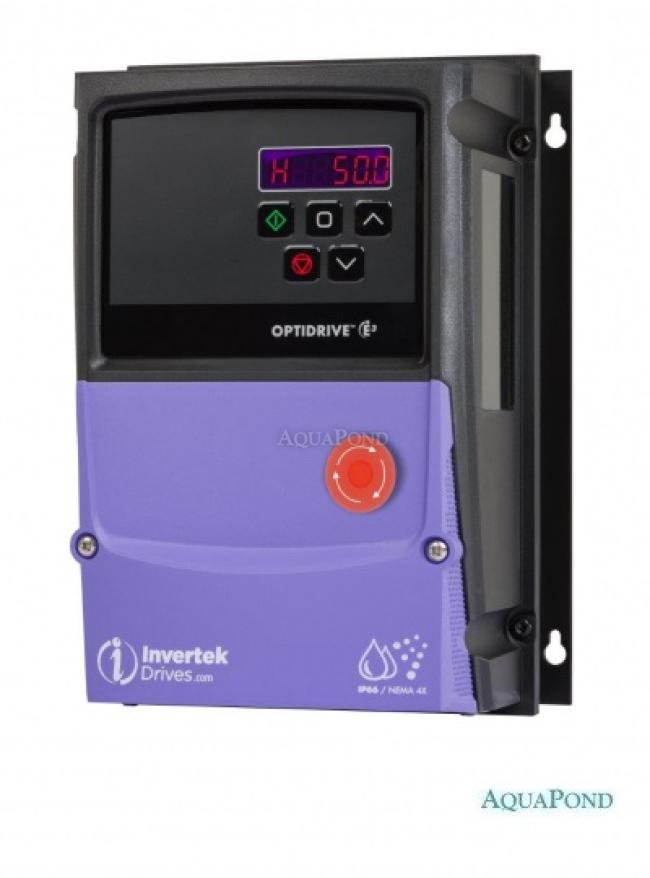

OPTIDRIVE E3 frequency inverter - 0.75 kW; 7A; 1x 230V / 1x 230V; IP66

OPTIDRIVE E3 frequency inverter - 0.75 kW; 7A; 1x 230V / 1x 230V; IP66

OPTIDRIVE E3 frequency inverter - 0.75 kW; 7A; 1x 230V / 1x 230V; IP66

Description

OPTIDRIVE E3 provides unbeatable simplicity in installation, connection, and commissioning. Thanks to these advantages, you can benefit from precise motor control and energy savings within just a few minutes. ... Read more
Product code: 57DODE312007011

  • OPTIDRIVE E3 frequency inverter - 0.75 kW; 7A; 1x 230V / 1x 230V; IP66

    OPTIDRIVE E3 delivers unbeatable simplicity in installation, connection, and commissioning. Thanks to these advantages, you can benefit from precise motor control and energy savings within just a few minutes.

    • IP66 / NEMA4X protection for outdoor use: Made from durable polycarbonate plastics specially selected to resist degradation from UV radiation, grease, oils, and acids. The materials and housing are designed and manufactured to be sufficiently robust and to prevent embrittlement even at -20°C
    • Dustproof design: Ensures protection against dust and dirt
    • IP66 waterproofing: The sealed ABS enclosure and corrosion-resistant heatsink allow the user to wash the Optidrive E3 unit with a high-pressure water jet

    OPTIDRIVE E3 frequency inverter in four power variants:

    • 0.75kW / 4.3A / 230V
    • 2.2kW / 10.5A / 230V
    • 4kW / 9.5A / 400V
    • 5.5kW / 14A / 400V

    Compatible motor types:

    • IE2
    • IE3
    • IE4

    Key features of the OPTIDRIVE E3 IP66 unit:

    • Integrated C1 EMC filter
    • Integrated PI controller
    • Operating temperature up to 50 °C
    • Integrated braking transistor
    • Bluetooth connectivity
    • Fire mode
    • Vector control

    • (1) - 2x RJ45 ports. No splitter required
    • (2) - Easy-access EMC disconnection (electromagnetic compatibility)
    • (3) - Very easy electrical wiring thanks to the large space in the installation cabinet and the removable cover.

    Technical parameters

    • Product type: Frequency inverter
    • Dimensions (height x width x depth): 232 x 161 x 162 mm
    • Weight: 2.5 kg
    • Pump type: Single-phase
    • Power supply: 1 x 230 V AC
    • Max input power: 0.75 kW (1 HP)
    • Output voltage: 1 x 230 V AC
    • Max. current: 7 A
    • Operating temperature: -20 to +50 °C
    • Protection rating: IP66 / NEMA 4X
    • Mounting: 4 x M4 screw
