Astralpool Victoria Plus Silent Pool Pump, 8.5 m3/h 230V with Single-Phase Motor
 |
 |
 |
Astralpool Victoria Plus Silent Pool Pump, 8.5 m3/h 230V with Single-Phase Motor
Description
Victoria Plus pumps are designed for pool circuits. They are suitable for fresh water, chlorine treatment, oxygen treatment, or biologically treated water in ponds. Read more
-
Astralpool Victoria Plus Silent Pool Pump, 8.5 m3/h 230V with Single-Phase Motor

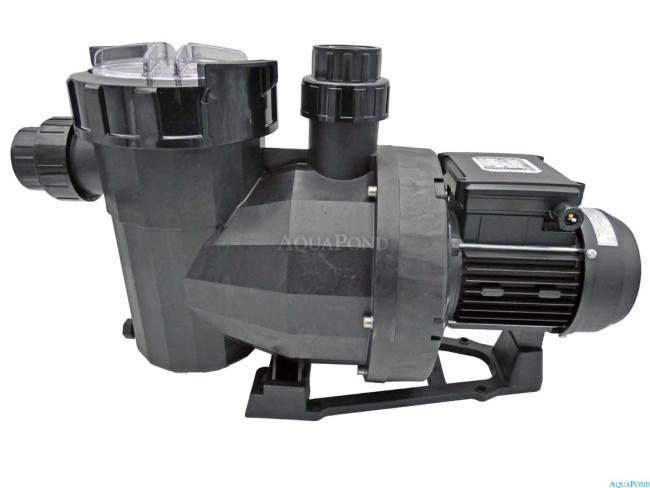

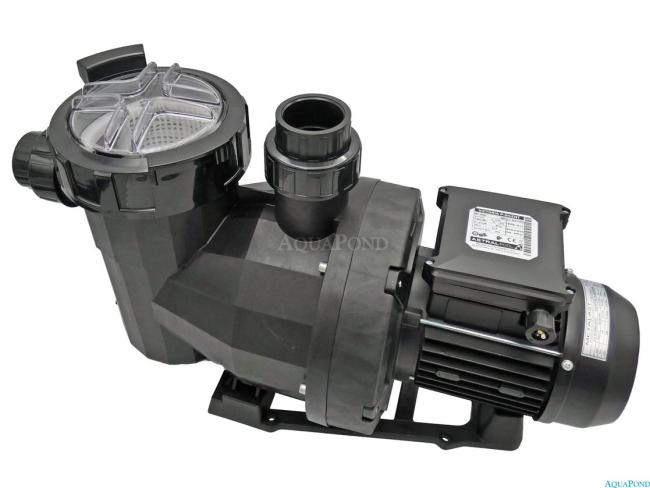

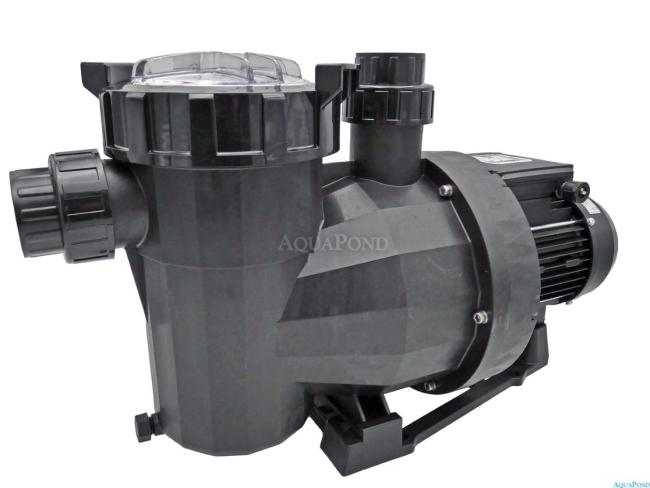

The new Victoria pump range is characterized by quiet operation and high performance. The pump body is made of next-generation thermoplastic. The pump is self-priming and is available with a single-phase or three-phase motor.
The pump includes a large prefilter basket that prevents foreign objects from entering the hydraulic parts of the pump, thereby protecting them from damage. The motors offered have IP 55 protection and are resistant to increased humidity and temperature. The high-quality front bearing is larger than the rear one to improve stability in the axial movement of the motor stator. Greater connection versatility. The filtration capacity of the pump in m3 / h is stated at a water column height of 10 m. Suitability of the pump for a given pool volume is based on the assumption that the filter pump runs 5 h / day.Victoria Plus Silent pumps are not suitable for pools with salt water treatment.
- large hair prefilter
- transparent prefilter lid
- reliable operation
- quiet operation
- installation: max. 2 m above water level
or max. 3 m below water level - 2-year warranty
Package Contents
- pump with motor
- debris basket
- lid with gasket
- lid fastening nut
- connection fittings
- gasket
- manual
Power cable is not included.
Technical Specifications
- Dimensions: 615 x 254 x 359 mm
- Flow rate: 8.5 m3/h
- Outlet: for gluing 50 mm (1½")
- Inlet: for gluing 50 mm (1½")
- Voltage: 230 V
- Input/Output: 0.58/0.43 kW
- Max. pressure: 2.5 bar
- Max. water temperature: 35°C
- Protection rating: IP 55
- Weight: 13 kg
- For pools up to: 35 m3
- Use: Suitable for fresh chlorine treatment, oxygen-based water treatment, or biologically treated water in ponds. Not suitable for salt chlorine treatment.
Spare Parts List
The complete list of spare parts can be found here:
Spare parts for Astralpool Victoria Plus Silent pump, 8.5 m3/h 230V
-
