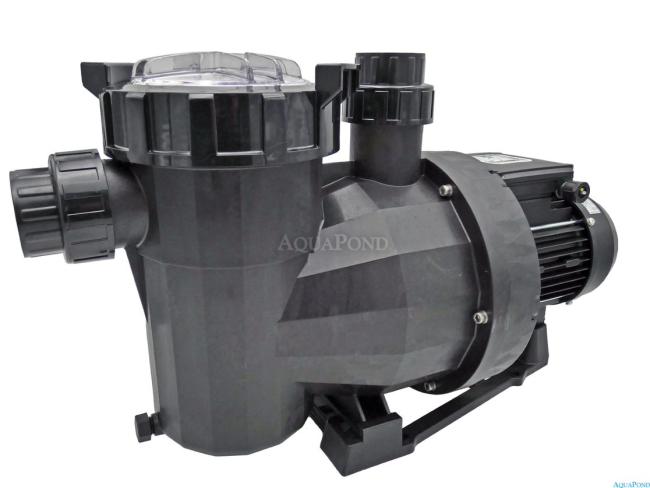

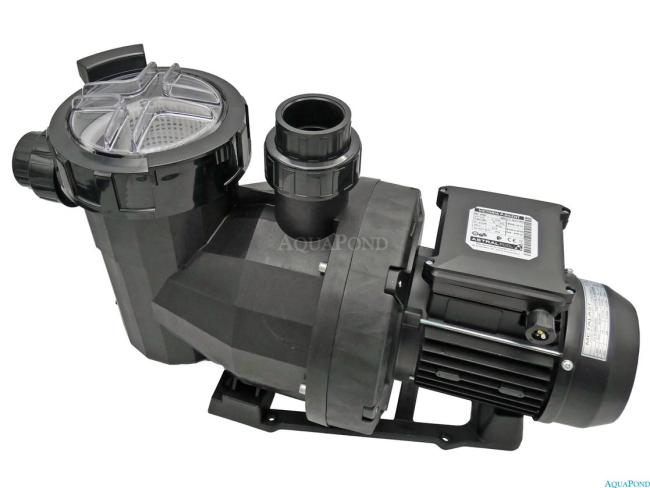

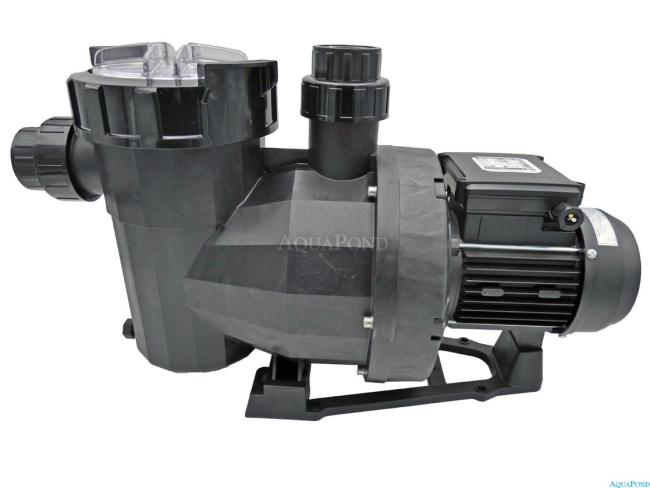

AstralPool Victoria Plus Silent pool pump, 16 m3/h, 230V with single-phase motor


AstralPool Victoria Plus Silent pool pump, 16 m3/h, 230V with single-phase motor
AstralPool Victoria Plus Silent pool pump, 16 m3/h, 230V with single-phase motor
AstralPool Victoria Plus Silent pool pump, 16 m3/h, 230V with single-phase motor


AstralPool Victoria Plus Silent pool pump, 16 m3/h, 230V with single-phase motor

Description

Pumps Victoria Plus are designed for pool circuits. They are suitable for fresh water chlorine treatment, oxygen water treatment, or biologically treated water in ponds. Read more
Product code: 65562

  • Astralpool Victoria Plus Silent Pool Pump, 16 m3/h 230V with Single-Phase Motor

    The new Victoria pump range is characterized by quiet operation and high performance. The pump body is made of next-generation thermoplastic. The pump is self-priming and is available with a single-phase or three-phase motor.
    The pump includes a large pre-filter basket that prevents foreign objects from entering the hydraulic parts of the pump, thereby protecting them from damage. The motors offered have IP 55 protection and are resistant to increased humidity and temperature. The high-quality front bearing is larger than the rear one to improve stability in the axial movement of the motor stator. Greater connection versatility. The filtration capacity of the pump in m3 / h is stated at a water column height of 10 m. Suitability of the pump for a given pool volume is based on the assumption that the filter pump runs 5 h / day.

    Victoria Plus Silent pumps are not suitable for pools with saltwater treatment.

    • large hair pre-filter
    • transparent pre-filter lid
    • reliable operation
    • quiet running
    • installation: max. 2 m above the water level
      or max. 3 m below the water level
    • 2-year warranty

    Package Contents

    • pump with motor
    • dirt basket
    • lid with gasket
    • lid fastening nut
    • connection fittings
    • gasket
    • manual

    Power cable is not included.

    Technical Specifications

    • Dimensions: 615 x 254 x 359 mm
    • Output: 16 m3 / h
    • Outlet: for gluing 50 mm (1½")
    • Suction: for gluing 50 mm (1½")
    • Voltage: 230 V
    • Power input: 1.12 kW
    • Max. pressure: 2.5 bar
    • Max. water temperature: 35°C
    • Protection rating: IP 55
    • Weight: 15 kg
    • For pools up to: 80 m3
    • Use: Suitable for fresh chlorine treatment, oxygen-based water treatment, or biologically treated pond water. Not suitable for saltwater chlorine treatment.

    Spare Parts List



    The complete list of spare parts can be found here:



    Spare Parts for Astralpool Victoria Plus Silent Pump, 16 m3/h 230V
