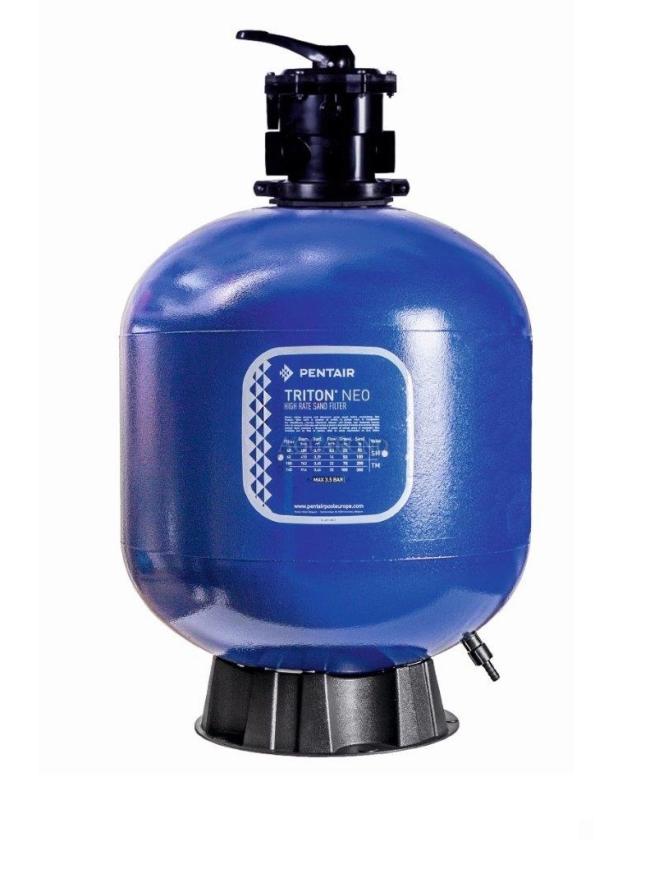

Triton Neo TR40 Clearpro filter tank - 480 mm diameter, with a six-way top valve on a base
Triton Neo TR40 Clearpro filter tank - 480 mm diameter, with a six-way top valve on a base
Description
Filtration tanks Triton Neo Clearpro are made of fiberglass, seamless and reinforced with a layer of polyester, equipped with a 6-way top valve and mounted on a base. Read more
-
Triton Neo TR40 ClearPro Filter Tank - 480 mm Diameter, with 6-Way Top Valve on Base
Triton Neo ClearPro filter tanks are made of fiberglass, seamless and reinforced with a polyester layer, and equipped with a 6-way top valve mounted on a base. Sand filters work on the natural principle of water filtration. Water passes through the sand bed, which traps fine dirt particles. Over time, the sand becomes clogged and needs to be backwashed, which is what the 6-way valve is used for. By turning the valve to the sand wash position, we reverse the direction of water flow and flush the trapped dirt out to waste. This process can be repeated throughout the entire service life of the sand, which is very long compared to other filtration methods.
ClearPro® is a patented technology from Pentair that achieves very high filtration levels, approximately 4 times better than standard sand filtration. This quality is achieved thanks to new porous plastic collectors. These act as additional filters, creating an extra barrier against the smallest dirt particles. The result is exceptionally clean water.
Package Contents
- Fiberglass filter tank
- 6-way top valve
- Installation and operating instructions
- Base
Package Does Not Include
- Connecting piping between the pump and the filtration system
- 0.6 – 1.2 mm filter sand / 25 kg (must be ordered separately)
- Pump
Technical Parameters
- Product type: Filter tank
- Tank material: fiberglass
- Filling quantity: 75 kg
- Tank diameter: 480 mm
- Max. operating pressure: 3.5 bar
- Flow rate: 8.5 m3 / h
- Valve type: 6-way top
- Filtration area: 0.17 m2
- ClearPro filtration technology: Yes
- Base: Yes
- Weight: 13 kg
- Warranty period for Triton filter tank: 10 years
Spare Parts List
The complete list of spare parts can be found here:
Spare parts for Triton Neo TR40 ClearPro filter tank - 480 mm diameter, with 6-way top valve on base
-
