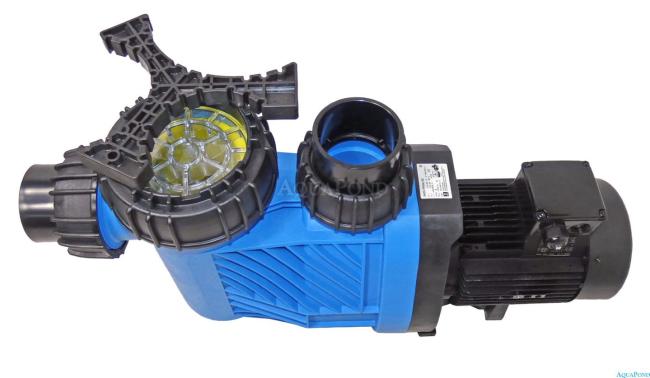

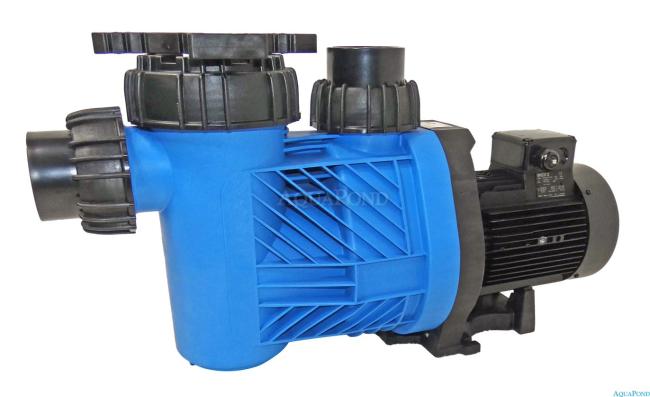

Speck Badu Prime 30 pool pump - 30 m3/h, 400 V, 1.85 kW
Speck Badu Prime 30 pool pump - 30 m3/h, 400 V, 1.85 kW
Description
High-quality self-priming pump. Suitable for more demanding filtration systems, e.g. with solar collectors. It is suitable for both fresh water and salt water with a salt concentration of up to 5 ... Read more
-
Speck Badu Prime 30 Pool Pump - 30 m3/h, 400 V, 1.85 kW
High-quality self-priming pump. Fiberglass-reinforced housing. Suitable for more demanding filtration systems, e.g. with solar collectors. The pump can be used with salt water with a salt concentration of 0.5% (5 g of salt per liter of water). For higher concentrations, a pump marked "AK" must be used. The Badu Prime 30 is self-priming, which means it can also be installed above the pool water level. The pump housing and impeller are made of hard polypropylene resistant to the chemical effects of pool water. In terms of design, the Badu Prime is also suitable for public and hotel pools where continuous operation is required. It has an easy-to-maintain coarse dirt strainer. It is characterized by very long service life, smooth operation, and quiet running. Badu pumps are also equipped with an external thermal overload protection against overheating.
The Badu Prime pool pump with an output of 30 m3 is suitable for pools with a water volume from 120 to 150 m3.

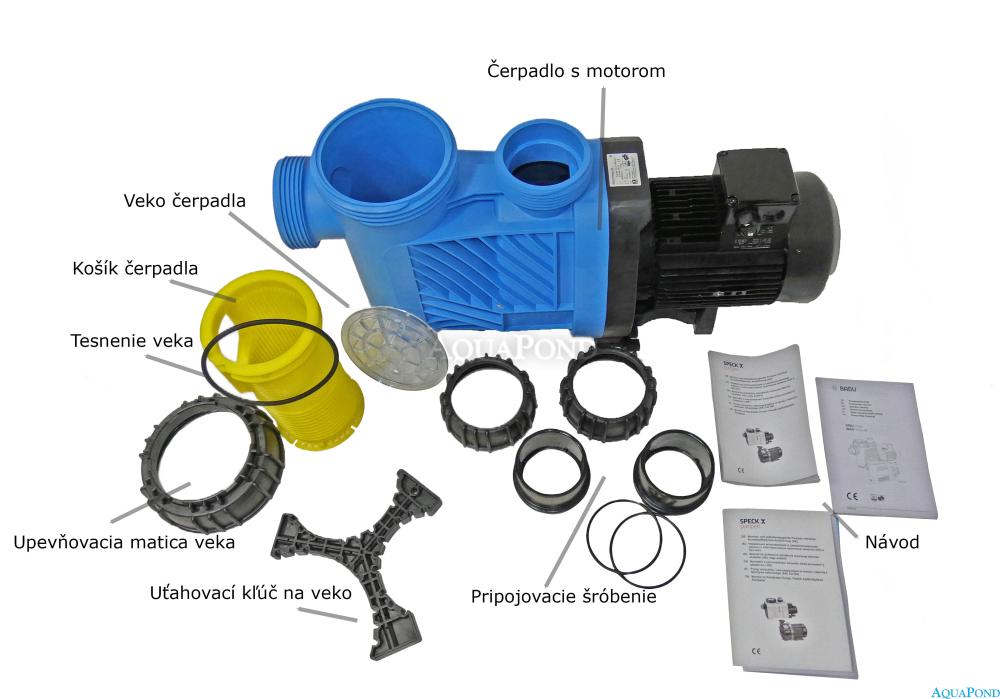

Package Contents
- Pump with motor
- Cover with gasket and fastening nut
- Key for loosening and tightening the cover
- Internal debris basket (hair strainer)
- Connecting union
- Instructions
Power cable is not included.

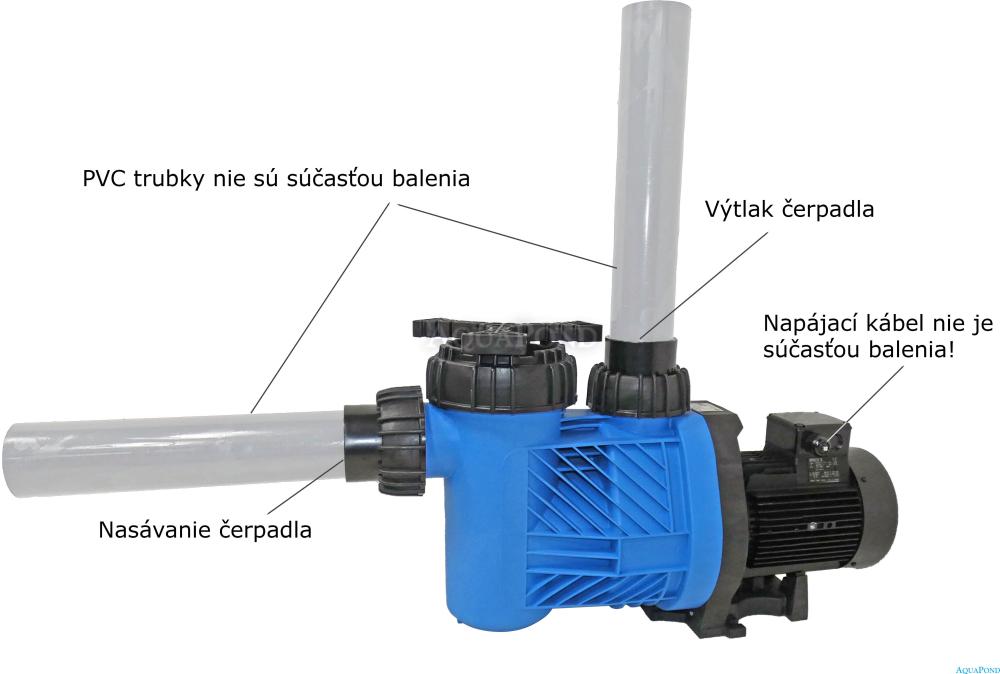

Pump Connection
Technical Specifications
- Body material: Fiberglass-reinforced polypropylene
- Noise level: 67.5 dB
- Motor protection rating: IP 55
- Impeller material: Plastic
- Max. operating temperature: 60 °C
- Max. operating pressure: 2.5 bar
- Voltage: 400 V
- Suction / discharge connection: 75 / 75 mm
- Speed: 2840 rpm
- Power input: 1.85 kW
- Power output: 1.50 kW
- Flow rate: 30 m3/h
- Self-priming: Yes
- Weight: 30 kg
- Use: Suitable for both fresh and salt water with salt concentration up to 5 g/l
- For salt water up to 5 g/l (<0.5%): Yes
- For salt water above 5 g/l (>0.5%): AK version

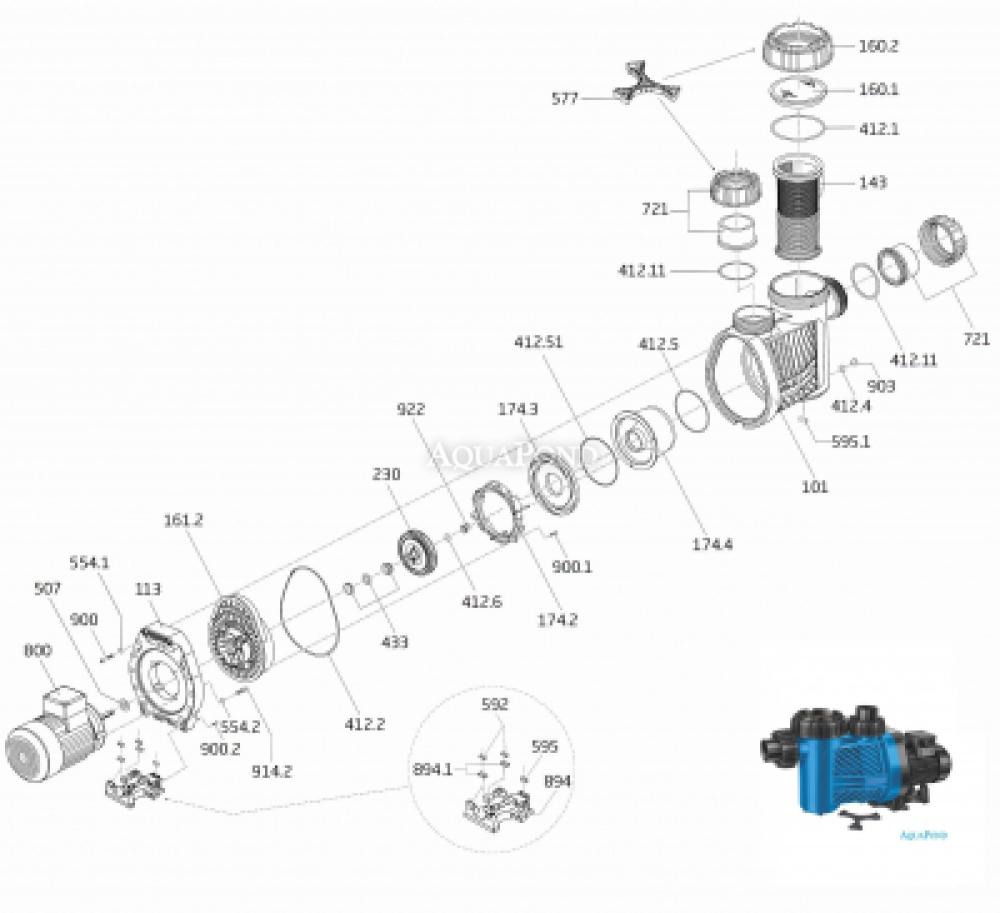

Spare Parts List
You can find the complete list of spare parts here:
-
