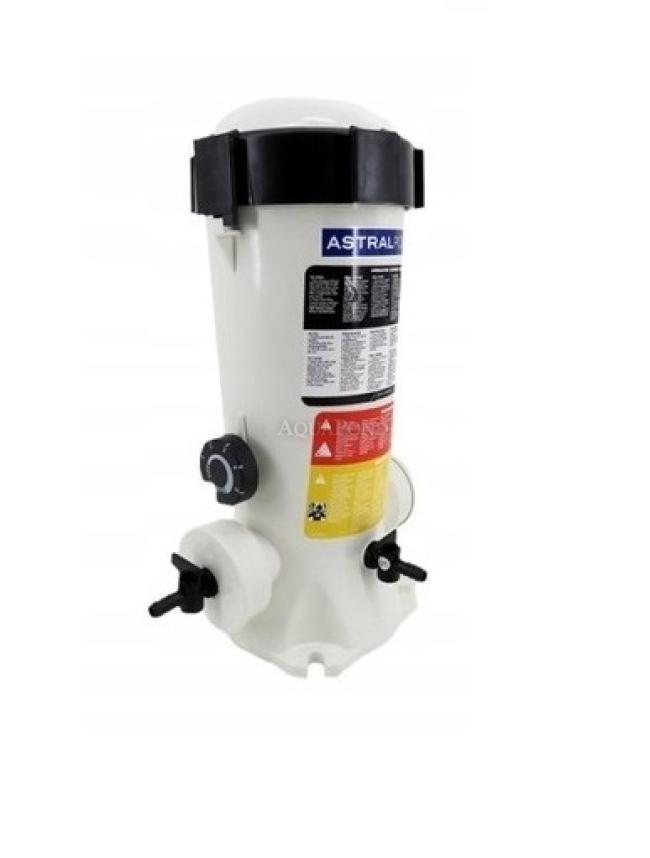

The doser tank can hold up to 3.5 kg of pool tablets, which will continuously disinfect the water in the pool. The pool chemical doser is connected directly to the pool filtration piping. When the pool filtration is switched on, part of the water flows through the doser tank, where it mixes with the disinfectant and continues into the pool through the outlet pipe. The amount of pool chemicals can be regulated using the control valve directly on the doser body. The pipes for connecting the doser to the pool have a 1/^1/2“ (50 mm) connection. Made of chemically resistant plastics, lid with double safety lock, easy operation. Tablets containing chlorine or bromine.

Connection Diagram

Replacing Tablets in the Doser

When replacing the tablets, close the valves on the piping so that water does not flow out of the pool. After removing the lid, drain 2/3 of the water from the doser body using the drain valve. Remove the dissolved tablet residues and insert new tablets. Before closing the lid, refill the water to 1 cm below the top edge.

Package Contents

• Large-capacity tank for 3.5 kg tablets
• Connecting fitting with 1½" internal thread
• Drain valve
• Teflon tape
• Seal
• Lid with seal
• Instructions

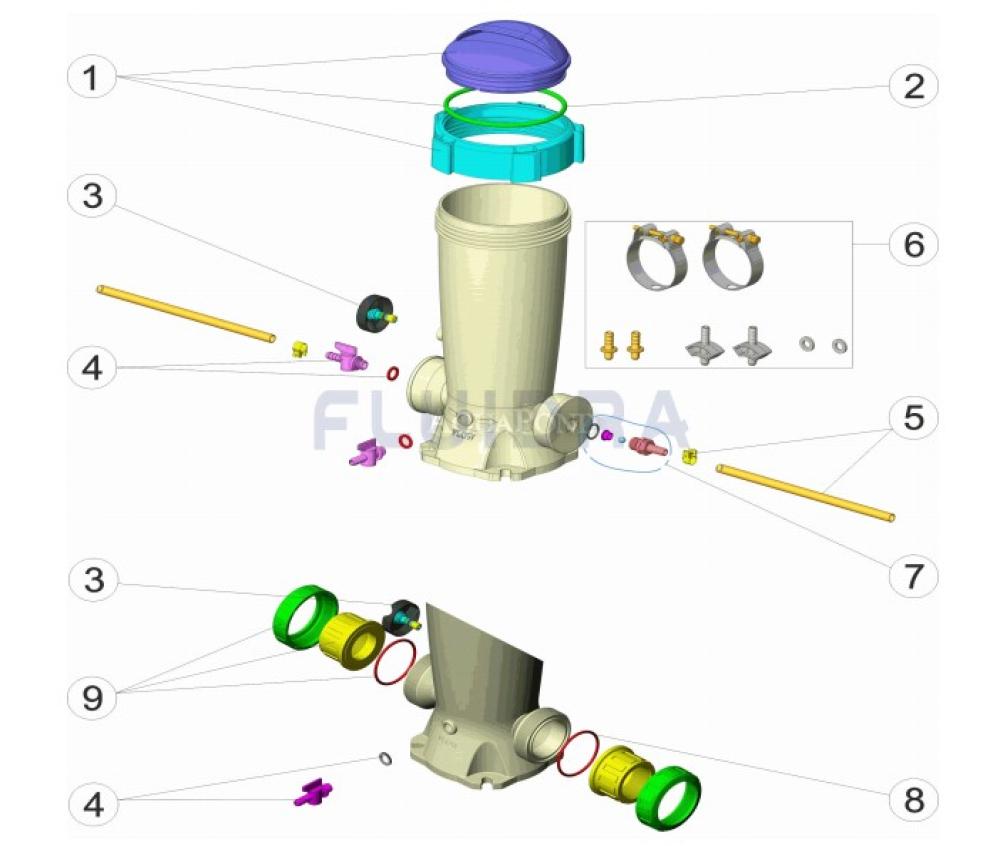

Spare Parts List

The complete list of spare parts can be found here:

Spare Parts - Automatic Doser 24429 and 24430
