The advantage of PVC fittings is easy handling, simple installation, and chemical resistance.

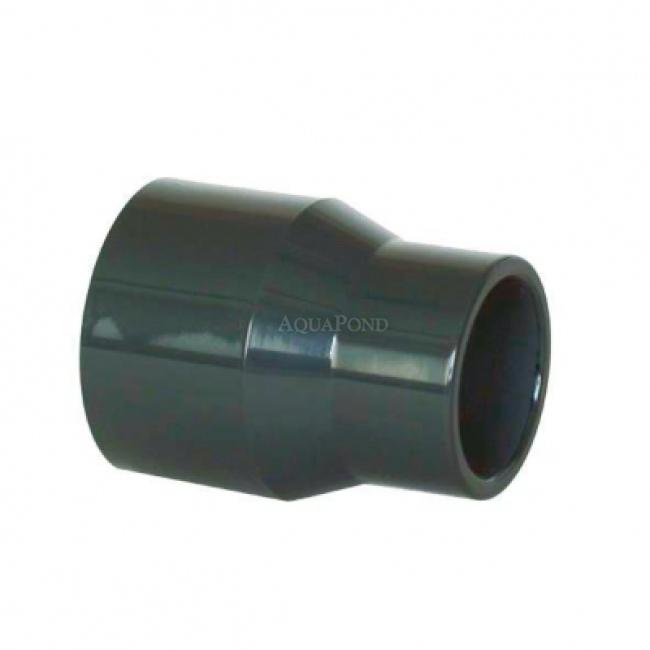

Pool PVC coupling – socket is used to connect a PVC pipe or flex hose. The pipes are glued into the inside of the coupling. Do not glue the pipes to the outside of the coupling. It is not 100% straight, so the joints will not seal properly. Before gluing, all joints must be thoroughly cleaned. Use Tangit or Griffon. Apply a thin layer of Tangit or Griffon adhesive to both the coupling and the pipe, then press the joints together. Allow at least 5 minutes to dry. Pool adhesives cure in 10–12 hours.
Connection: solvent weld / solvent weld
Bonding: internal
Use: for connecting pipes and hoses
Outer diameter (d): 90 / 75 mm
Inner diameter (DN): 75 / 63 mm
Weight: 0.26 kg
Color: gray
