The advantage of PVC fittings is easy handling, simple installation, and chemical resistance.

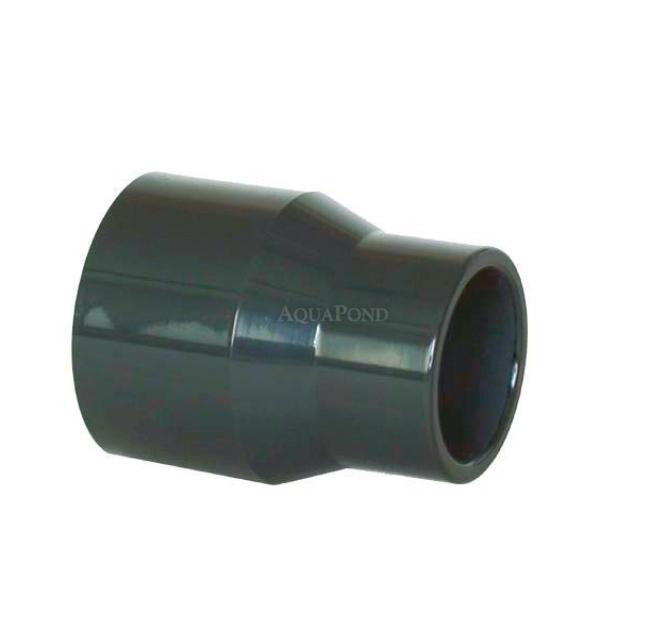

This pool PVC coupling – socket is used to connect a PVC pipe or flex hose. The pipes are glued into the inside of the coupling. Do not glue the pipes to the outer side of the coupling. It is not 100% straight, and the joints will not seal properly. Before gluing, all joints must be thoroughly cleaned. Use Tangit or Griffon. Apply a thin layer of Tangit or Griffon adhesive to both the coupling and the pipe, then press the joints together. Allow at least 5 minutes to dry. Pool adhesives cure in 10–12 hours.
Connection: solvent weld/solvent weld
Solvent weld: internal
Usage: for connecting pipes, hoses
Outer diameter (d): 63 / 41 mm
Inner diameter (DN): 50 / 32 mm
Weight: 0.1 kg
Color: gray
