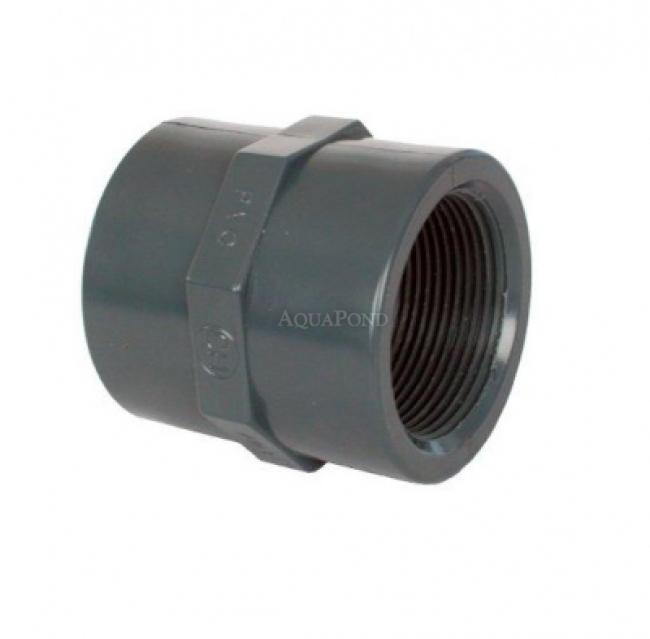

PVC Fitting - Coupling 1“ int., female thread / female thread

The advantage of PVC fittings is easy handling, simple installation, and chemical resistance.

PVC-U pressure fitting is suitable for piping in filtration systems for swimming ponds, pools, ornamental ponds, fish tanks, and similar applications. It is most commonly used for connecting equipment. Never glue a threaded joint. Use Teflon tape or sealing thread to seal the connection.

Before gluing, all joints must be thoroughly cleaned. Use Tangit or Griffon. Apply a thin layer of Tangit or Griffon adhesive to both the fitting and the pipe, then press the joints together. Allow at least 5 minutes to dry. Pool adhesives cure in 10 - 12 hours.

• Connection: threaded / threaded
• Threaded connection (int.): 1"
• Use: for connecting pipes
• Outer diameter (d): 41 mm
• Inner diameter (DN): 1“
• Weight: 0.04 kg
• Color: gray
