Advantages

• The filter is equipped with an intelligent control unit with a display showing the water temperature in your garden pond.
• Up to 40% energy savings thanks to the UVC lamp, which activates when needed.
• Since the UVC lamp does not run permanently but switches on only when needed, the cost of UVC bulbs is also reduced.
• Integrated self-cleaning UVC lamp with patented cleaning rotor and water oxygenation in the filter.
• Convenient cleaning of the filter foams using squeeze handles.

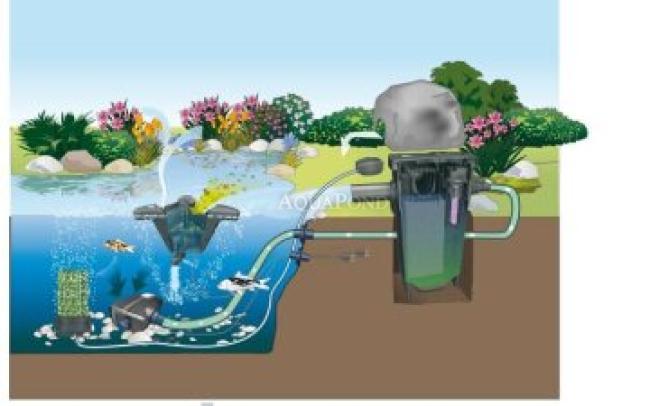

• The filter can be buried in the ground up to 70% of its height. This makes it easier to conceal around your garden pond.
• The filter features a self-cleaning function, which automatically drains accumulated sludge from the filter.
• All these filter functions ensure optimal conditions for filtration biology. They delay the need for a complete filter cleaning, cleaning of the filter media, and restarting the filtration process.
• The cleaning interval and UVC lamp can also be controlled manually.
• The compact filter design offers an optimal balance between unit dimensions and biological-mechanical filtration performance.
• Easy filter installation.

Technical Specifications

• Dimensions: 380 x 380 x 520 mm
• Pump dimensions: 340 x 280 x 165 mm
• Rated voltage: 230 V / 50 Hz
• Pump rated voltage: 220 - 240 V / 50 - 60 Hz
• Power consumption: 17 W
• Power consumption during cleaning: 41 W
• Pump power consumption during cleaning: 40 W
• Power cable length: 10 m
• Pump power cable length: 10 m
• Weight: 14.58 kg
• Warranty: 2+1 years
• Pump warranty: 3 + 2 years
• UV lamp: 14 W
• Total number of filter sponges: 3 pcs
• Pump flow rate min: 2500 l / h
• Pump flow rate max: 4000 l / h
• Inlet connection: 38 mm - 1 ½"
• Outlet connection DN - (inner diameter): 75 mm
• Dirt drain connection DN - (inner diameter): 40 mm
• Maximum pond size without fish stock: 7 m³
• Maximum pond size with light fish stock: 3.5 m³
• Ponds with koi: 2 m³

Click here to view the video
