Benefits

• Additional oxygen enrichment thanks to special water guidance
• Cleaning handles for convenient maintenance
• Includes a contamination level indicator and water temperature display
• Bottom drain for easy removal of coarse debris

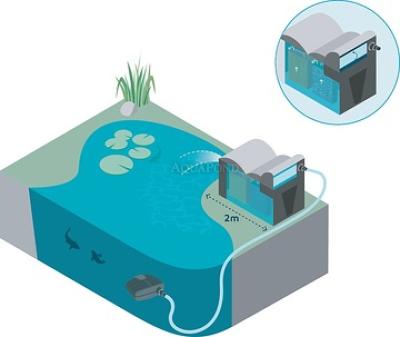

• Easy to conceal, as the filter housing can be buried up to ⅓ underground
• Suitable for ponds with a volume of up to 16.0 m3
• Guaranteed crystal-clear water thanks to the combination of mechanical/biological filtration with efficient UVC technology
• Perfectly matched to OASE AquaMax filter and stream pumps

Technical specifications

• Dimensions: 380 x 560 x 410 mm
• Rated voltage: 230 V / 50 Hz
• Power consumption: 14 W
• Power cable length: 3 m
• UVC power: 11 W
• Number of blue filter sponges: 3 pcs
• Number of red filter sponges: 3 pcs
• Inlet connections: 3/4 ", 1", 11/4 ", 11/2"
• Outlet connection: DN 70
• Connections, dirt drain: 11/2 "
• Pond volume without fish max.: 16 m3
• Pond volume with light stocking (up to 1 kg/m3) max.: 8 m3
• Pond volume with heavy stocking (over 1 kg/m3) or koi carp max.: 4 m3
• Drainage: gravity-fed
• The filter can be buried up to 1/3 underground

Click here to view the video
