Oase Aquamax Eco Gravity 20000 - filtration pump
 |
 |
 |
 |
 |
 |
 |
Oase Aquamax Eco Gravity 20000 - filtration pump
Description

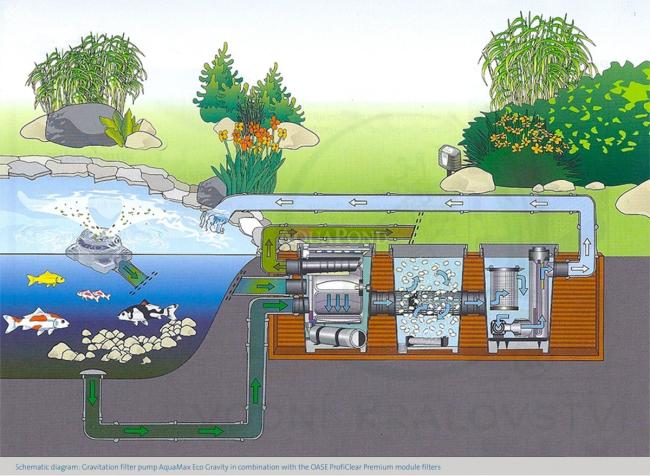

Aquamax Eco Gravity energy-saving pump for swimming and ornamental ponds with high flow, designed especially for gravity-fed filtration systems. Read more
Product code: 57093
-

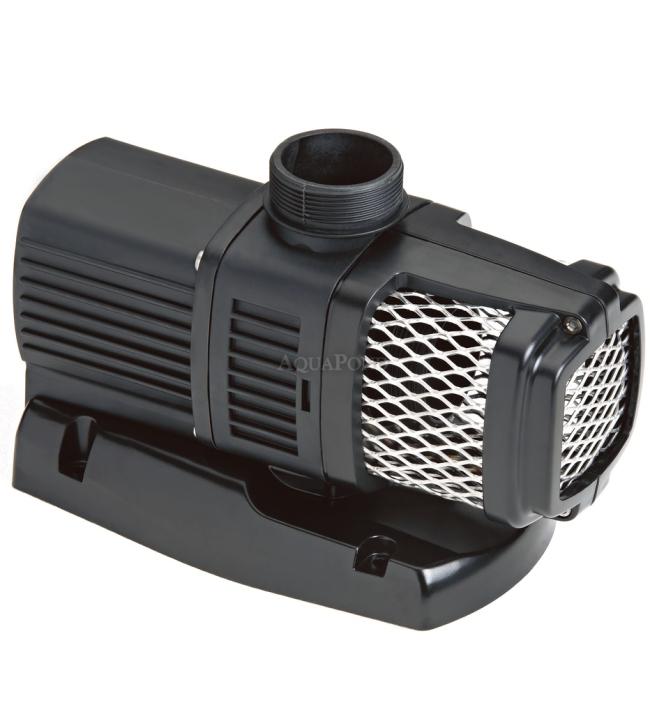

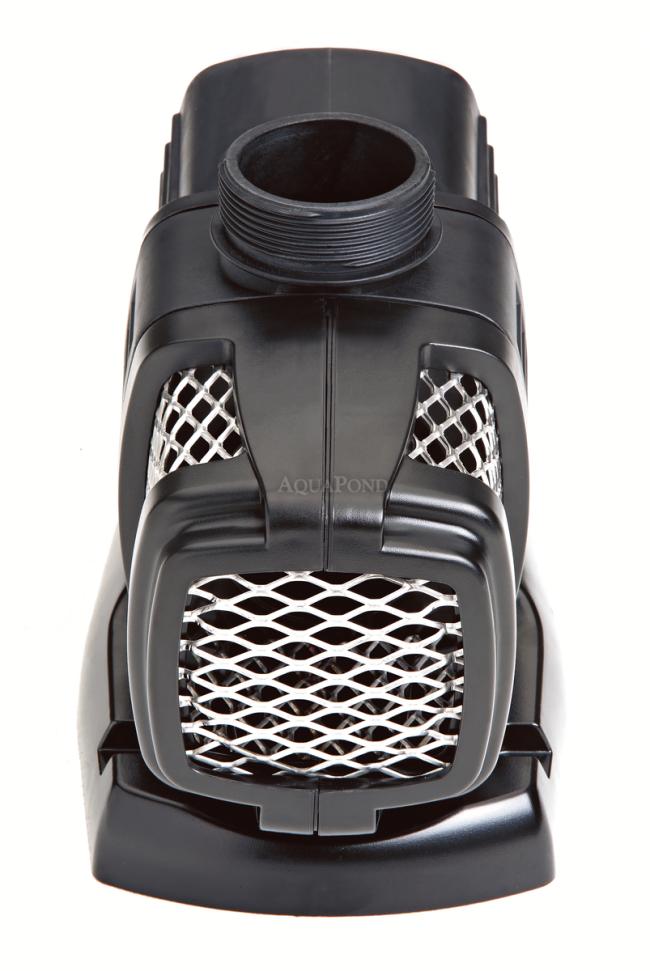

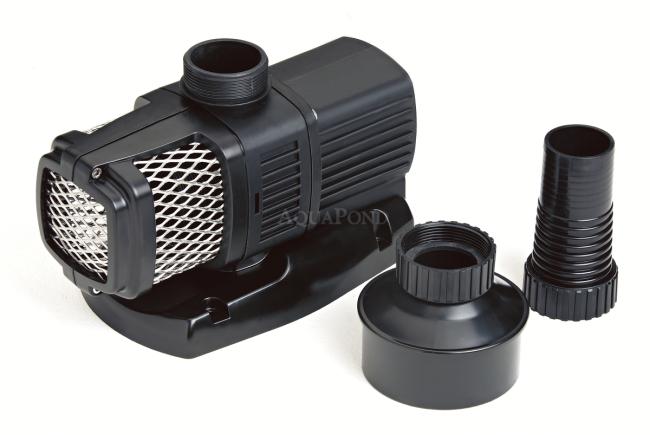

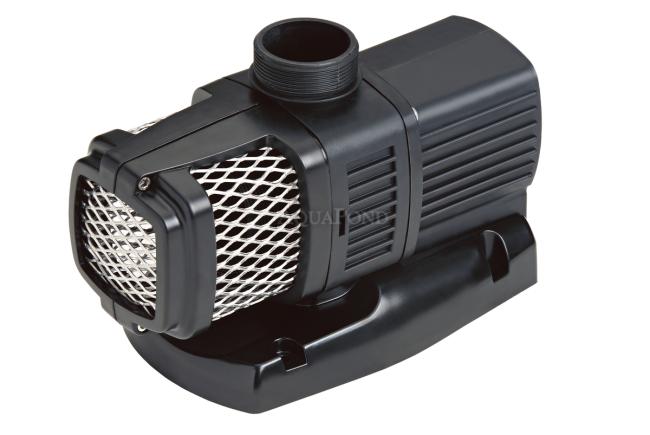

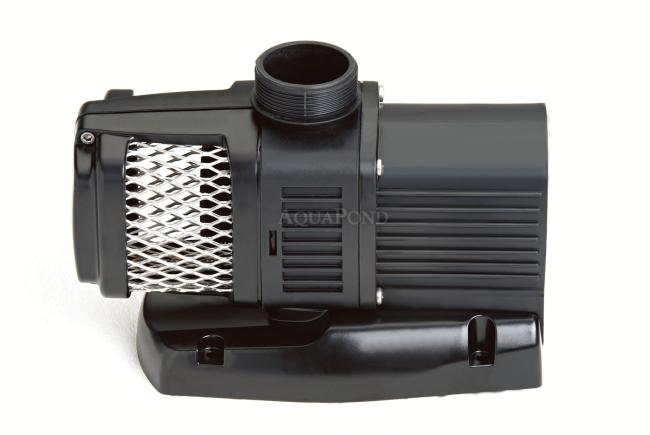

Oase Aquamax Eco Gravity 20000 - filtration pump
Aquamax Eco Gravity is an energy-saving pump for swimming and ornamental ponds with high flow, designed primarily for gravity-fed filtration systems. Large circulation volume thanks to the new hydraulic concept. Pumps dirt particles up to 6 mm in size. The stated maximum head indicates the height at which the water will appear, but not flow. The outlet is upward-facing, but can be turned to either side. For all pumps, we recommend using the largest possible hose or pipe diameter. Patented frost protection down to -20 °C.
Advantages:
- Pump developed primarily for gravity filtration systems. Suitable for use in ornamental ponds and Koi ponds
- Features a high circulation volume thanks to the new hydraulic concept
- Equipped with integrated, intelligent dry-run protection (Gravity-Self-Regulator)
- Highly energy-efficient pump, handles coarse dirt particles up to 6 mm in diameter, designed for submerged or dry installation below water level
- Compact stainless-steel design, fully resistant to winter conditions
- Protection against blockage or dry running thanks to EFC from OASE
- Patented frost protection down to -20 °C
Details
Pump maintenance
- For long-term satisfaction with your purchased pump, we recommend regular maintenance
- Before starting maintenance, always disconnect it from the power outlet
- Regularly check the pond pump and suction basket for faults or blockages, at least once a month
- Every 2 to 3 months, remove the suction cover, unscrew the screws, remove the impeller housing, and carefully take out the rotor; it is only inserted
- Clean the individual parts with warm water and remove any limescale deposits if present
- Reassemble in reverse order. Do not lift the pump by the power cable
Technical specifications
- Dimensions (L x W x H): 272 x 142 x 182 mm
- Rated voltage: 220 - 240 V / 50 Hz
- Power consumption: 120 W
- Power cable length: 10 m
- Weight: 4.5 kg
- Warranty (+ warranty on request): 3 + 2 years
- Liters per minute max.: 300 l / min
- Maximum liters per hour: 18000 l / h
- Maximum water column height: 1.3 m
- Pressure-side connection DN - (inner diameter): 50 mm
- Suction-side connection DN - (inner diameter): 50 mm

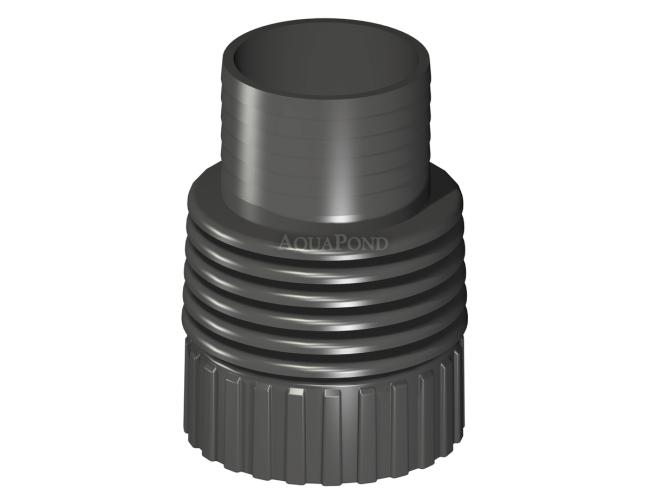

- Hose connection DN - (inner diameter): 50, 63, 75, 110 mm
- Filter inlet area: 200 cm2
- Coarse dirt pumping max.: 6 mm
- Electronically adjustable: No
- Installation method: Submerged and dry installation
Features
Aquamax Eco Gravity pumps
Oase pump comparison table
Spare parts list
The complete list of spare parts can be found here:
Spare parts for Oase AquaMax Eco Gravity 20000 - filtration pump
-
