Micro Delfino II 25 pool pump, output 4 m3/h - 230V
|
 |
 |
Micro Delfino II 25 pool pump, output 4 m3/h - 230V
Description
Micro Delfino II 25 small centrifugal pump with hair pre-filter, designed for filtration in private swimming pools. The pump is suitable for use in pools with fresh, salt, and seawater. Read more
-
Pool Pump Micro Delfino II 25, 4 m3/h output - 230V

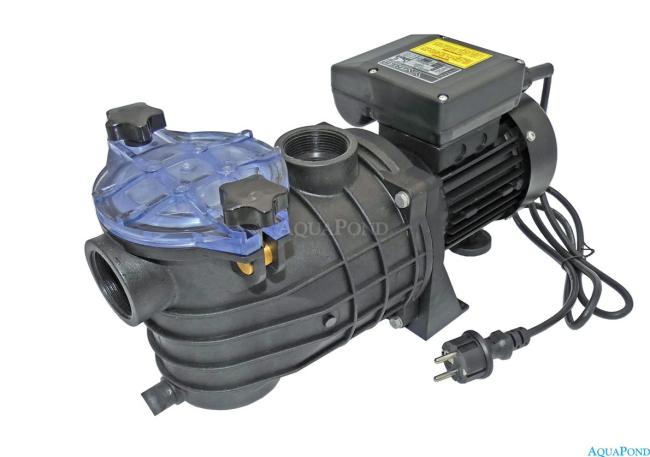

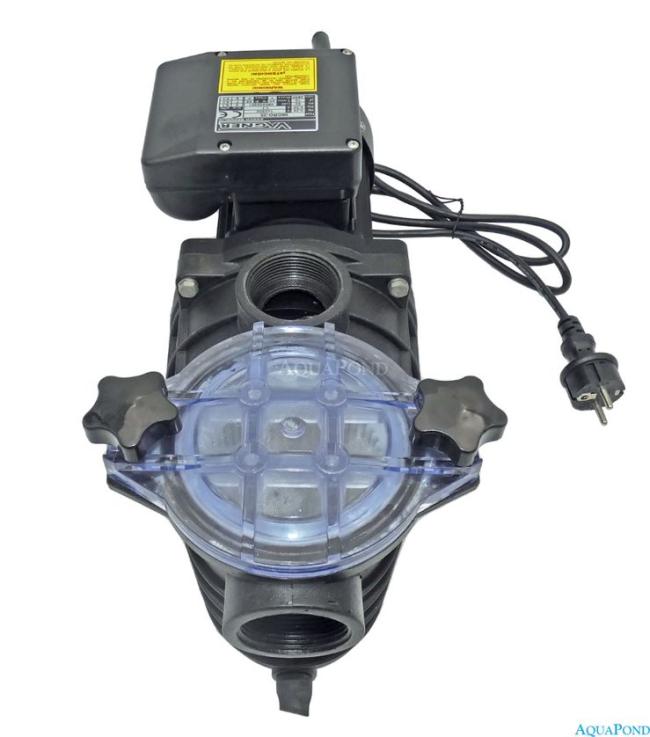

The Micro Delfino II 25 is a small centrifugal pump with a hair pre-filter, designed for filtration systems in private swimming pools. Suitable for sand filtration systems in smaller family pools. The pump body is made of reinforced polypropylene. The bearings, mechanical seal, and pump shaft are made of AISI 316 stainless steel, which offers excellent resistance to the long-term effects of pool chemicals and salt in the pool. The Micro Delfino 25 pool pump is suitable for use in both fresh and salt water pools. Micro Delfino pumps are self-priming and can be installed up to 1 m above the water level.
The 50 mm pipe connection flanges are not included in the package and can be purchased separately. The suction and discharge ports both feature a 1 1/2" internal thread for connection.
Suitable for
- Circulation pump for pools up to 20 m3
- For all types of pool filtration systems
- For saltwater pools

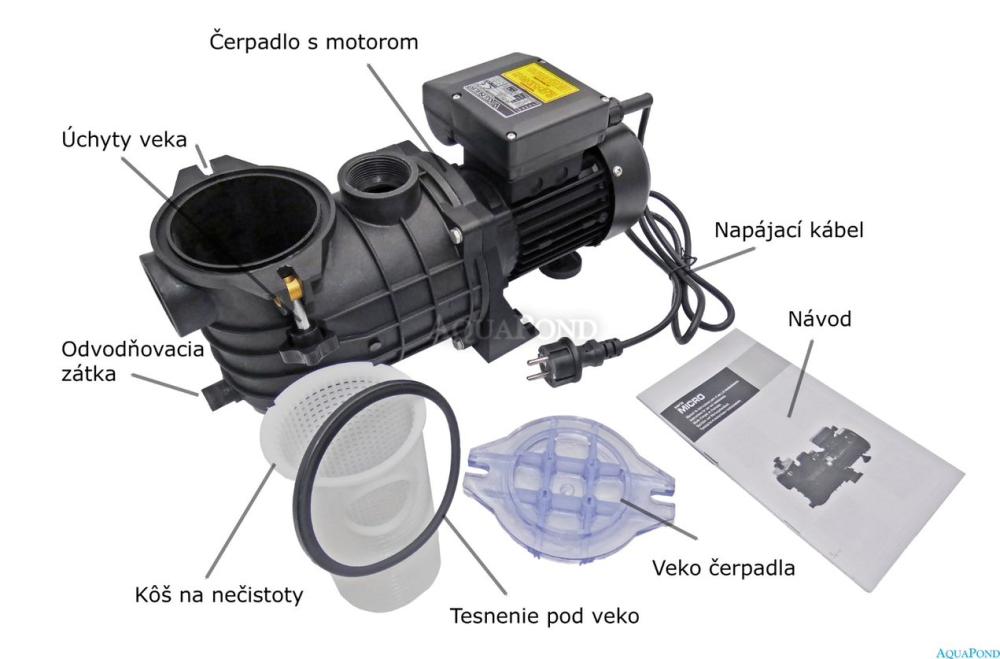

Package Contents
- Pump with motor
- Cover with gasket
- Internal debris basket (hair filter)
- Power cable
- Manual
Technical Specifications
- Product type: Filtration pump
- The pump can be used for salt and seawater

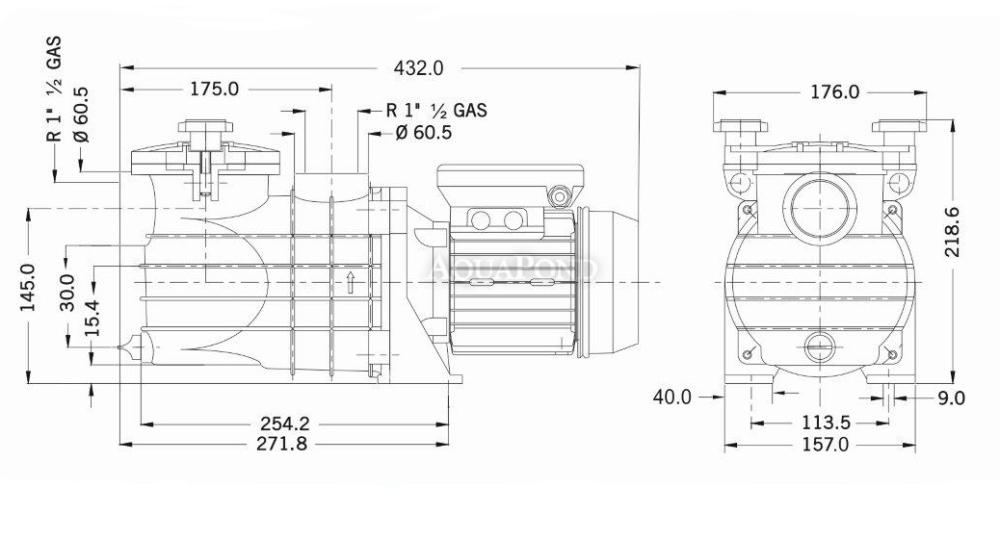

- Dimensions: 438 x 176 x 219 mm
- Speed: 2900 rpm
- Flow rate: 4 m3 / h
- Power: 0.20 kW
- Noise level: 70 dB
- Weight: 6.4 kg
- Motor protection rating: IP 55
- Voltage: 230 V
- Suction / discharge connection - thread: 1.5" in
- Pre-filter: Yes
- Use: Suitable for fresh and salt water with salt concentration up to 5 g/l, as well as for seawater with salt concentration above 5 g/l
- For salt water up to 5 g/l (<0.5%): Yes
- For seawater above 5 g/l (>0.5%): Yes

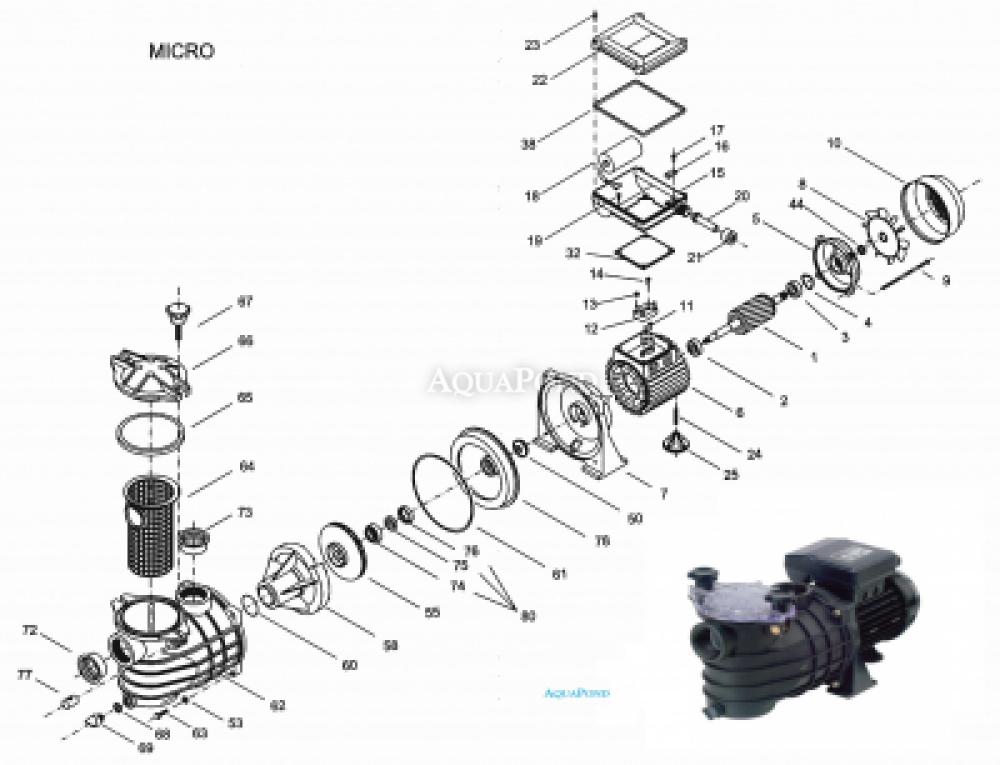

Spare Parts List
You can find the complete list of spare parts here:
-
