Hugo Lahme suction nozzle, red bronze, connection external thread 2", length 40 mm, for ceramic and prefabricated pools
Hugo Lahme suction nozzle, red bronze, connection external thread 2", length 40 mm, for ceramic and prefabricated pools
Description
The quality of the water in the pool depends largely on the circulation system (the way water is supplied to and drawn from the pool). Read more-
Hugo Lahme suction nozzle, red bronze, external thread connection 2", length 40 mm, for ceramic and prefabricated pools
The water quality in a pool depends largely on the circulation system (the way water is supplied to and drawn from the pool). The suction nozzle is part of the filtration system and is used to connect a vacuum cleaner for removing dirt from the pool. Resistant to chemical and atmospheric influences.
- Return nozzles - used to return already treated water back into the pool. They are usually placed opposite the skimmer or in places where the pool water needs to be circulated. The nozzles must be adjusted so that the entire pool volume circulates and so-called "dead spots" do not form. Nozzles are made of steel or plastic materials.
- Suction nozzle - used to connect the vacuum hose

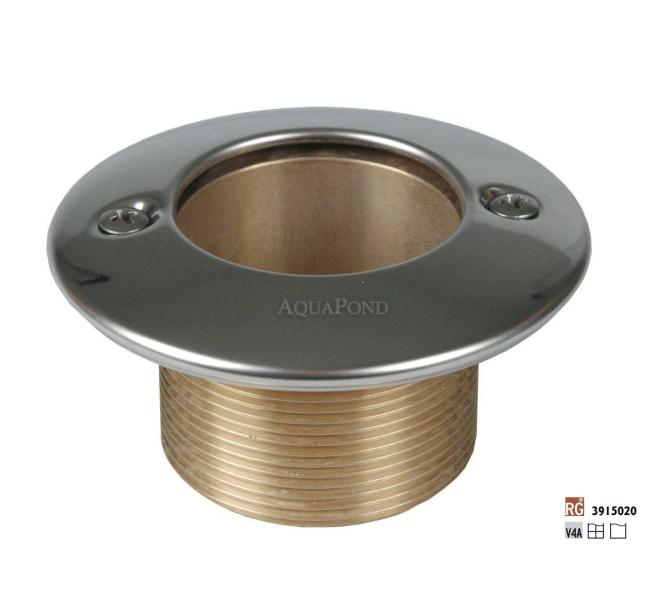

Suction nozzle 3915020 is designed for connecting a hose and drawing water from the pool during cleaning. The nozzle is an important part of effective pool maintenance and cleaning. This type of nozzle is also called a pool cleaning rose.
The suction nozzle is made of durable acid-resistant stainless steel AISI 316L and red bronze.
It is usually installed in the center of the long side of the pool and connected to the pool water circulation system.Note: Nozzle 3915020 is installed in ceramic and prefabricated pools.
When installing the nozzle in plastic or composite pools, it is necessary to additionally purchase the HL3950050 counter nut mounting kit.
Manufacturer's warranty - 2 years.

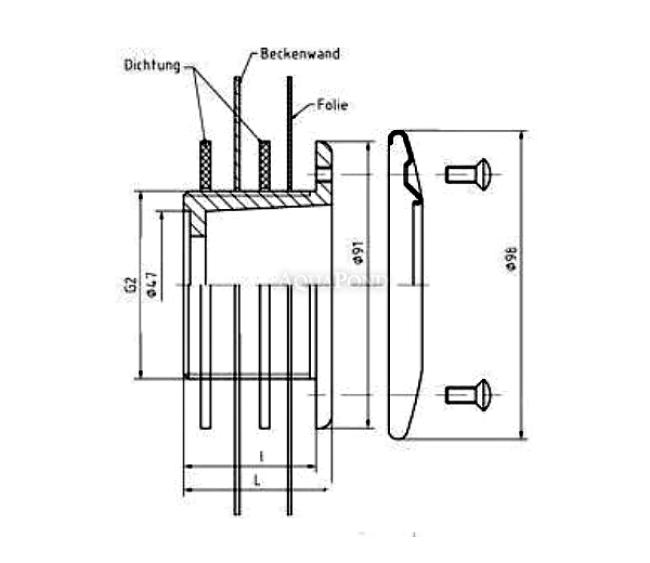

Technical parameters
- Material: stainless steel
- Connection (ext.): external thread. 2 "
- Length: 40 mm
- Outer casing diameter - Ø86 mm;
- Flow rate up to 10.0 m³/h.
- Weight: 1.29 kg
Advantages of the nozzle
- Made of durable stainless steel and red bronze;
- Flawless product quality;
- UV resistant;
- Acid resistant;
- Resistant to aggressive water chemicals;
- Exceptionally long-lasting and durable;
- Attractive exclusive design;
- Easy installation and maintenance.
The product is available only on order. Once confirmed, it can no longer be changed or canceled.
-
