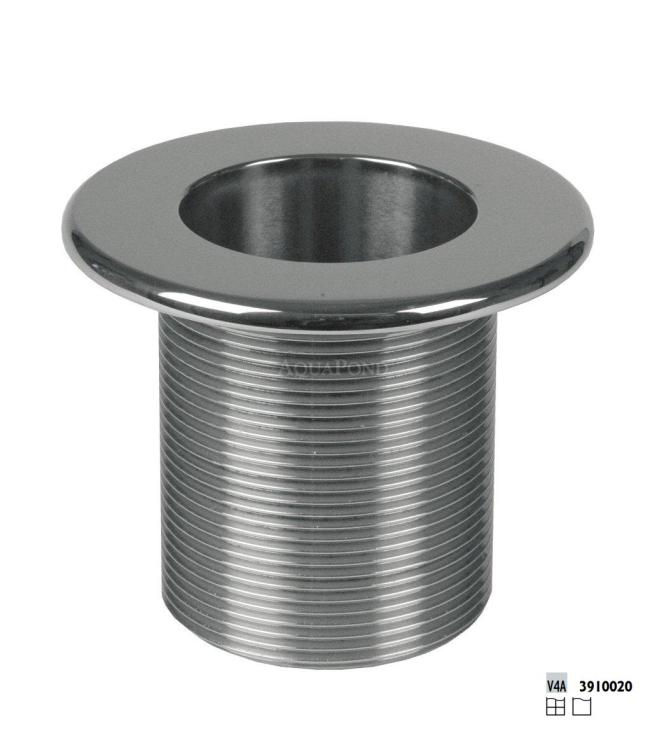

Hugo Lahme suction nozzle, 2" external thread connection, length 40 mm (all-stainless steel), for ceramic and prefabricated pools
Hugo Lahme suction nozzle, 2" external thread connection, length 40 mm (all-stainless steel), for ceramic and prefabricated pools
Description
The suction nozzle 3910020 is designed for connecting a hose and vacuuming water from a concrete pool during cleaning. Read more-
Hugo Lahme suction nozzle, connection external thread 2“, length 40 mm (all-stainless steel), for ceramic and prefabricated pools
The water quality in a pool depends largely on the circulation system (the way water is supplied to and drawn from the pool).
- Return nozzles - used to return already treated water back into the pool. They are usually placed opposite the skimmer or in areas where the pool water needs to be circulated. The nozzles must be adjusted so that the entire pool volume circulates and so-called "dead spots" do not form. Nozzles are made of steel or plastic materials.
- Suction nozzle - used to connect a vacuum hose
Suction nozzle 3910020 is designed for connecting a hose and extracting water from a concrete pool during cleaning. The nozzle is an important part of effective pool maintenance and cleaning.
It is intended for:
- Outdoor and indoor pools;
- Luxury private pools;
- Public pools;
- Pools with water attractions;
- Hydromassage SPA pools;
- Concrete pools;
- Plastic pools;
- Composite pools;
- Water parks, water attractions;
- Sports and rehabilitation centers;
- Hotels and sanatoriums.
Features
THE SUCTION FITTING is made of durable acid-resistant AISI 316L stainless steel with a nickel-tin (NiSn) coating. It is usually installed in the center of the long side of the pool and connected to the pool water circulation system.
Note: The SUCTION FITTING 3910020 is installed in concrete pools.
When installing the nozzle in plastic or composite pools, it is necessary to additionally purchase the nut for the COUNTER-ADJUSTMENT KIT 3950050.Manufacturer’s warranty – 2 years.

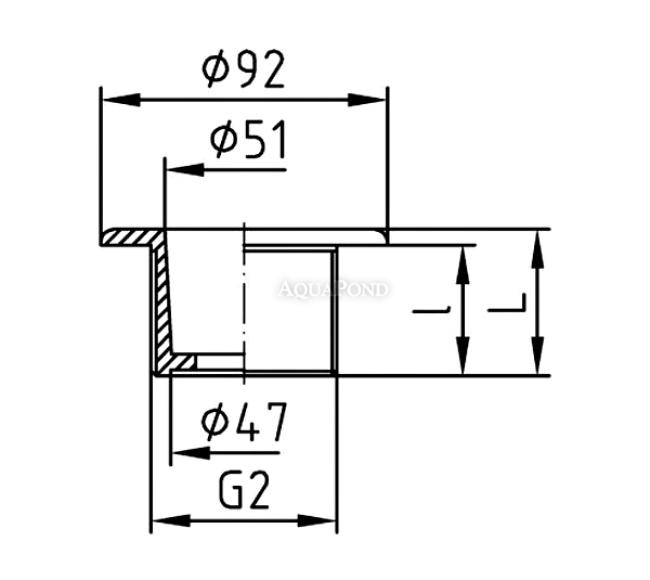

Dimensions of suction nozzle 3910020
- Outer diameter of the body – Ø92 mm;
- Length – 40 mm;
- Connection diameter – Ø2".
- Flow rate up to 10.0 m³/h.
Advantages of the nozzle
- Made of durable stainless steel;
- Flawless product quality;
- UV resistant;
- Acid resistant;
- Resistant to aggressive water chemicals;
- Extremely long-lasting and durable;
- Attractive exclusive design;
- Easy installation and maintenance.
The product is available only on order. Once confirmed, it can no longer be changed or cancelled.
-
