Hugo Lahme inlet nozzle Ø 18 mm, external thread 2", 40 mm, flange, for ceramic and prefabricated pools
Hugo Lahme inlet nozzle Ø 18 mm, external thread 2", 40 mm, flange, for ceramic and prefabricated pools
Description
The inlet nozzle ensures that water from the filtration circuit is returned back to the pool. Read moreProduct code: HL3104420
Estimated arrival:11.11.1111
-
Hugo Lahme inlet nozzle Ø 18 mm, 2" external thread, 40 mm, flange, for ceramic and prefabricated pools
The inlet nozzle 3104420 is a directional nozzle designed for return flow and water injection from massage systems into the pool. It is an integral part of a hydromassage system, designed for maximum comfort and efficiency.
They are usually installed opposite the skimmer or in places where the pool water needs to be circulated. The nozzles must be adjusted so that the entire pool volume circulates and so-called dead spots do not form.
Areas of use:
- Indoor and outdoor pools
- Luxury private pools
- Public pools
- Pools with water attractions
- Hydromassage whirlpools
- Pools with PVC liner
- Water parks and attractions
- Sports and rehabilitation centers
- Hotels and sanatoriums
Package contents
- inlet nozzle
- wall fitting
- flange
- gasket
- screws
Technical parameters
- Material: acid-resistant stainless steel AISI 316L and red bronze
- Outer diameter of housing: Ø100 mm
- Spray opening diameter: Ø18 mm
- Connection: Ø2”
- Maximum flow rate: up to 10 m³/h
- Installation: on the side wall of the pool
- Designed exclusively for pools with PVC lining
- Included in the package: flange 3102020, mounting and fastening set
Product benefits
- High resistance to UV radiation, acids, and aggressive chemicals
- Long service life and reliability
- Flawless workmanship quality
- Attractive and exclusive design
- Easy installation and maintenance
Warranty
- 2 years from the manufacturer

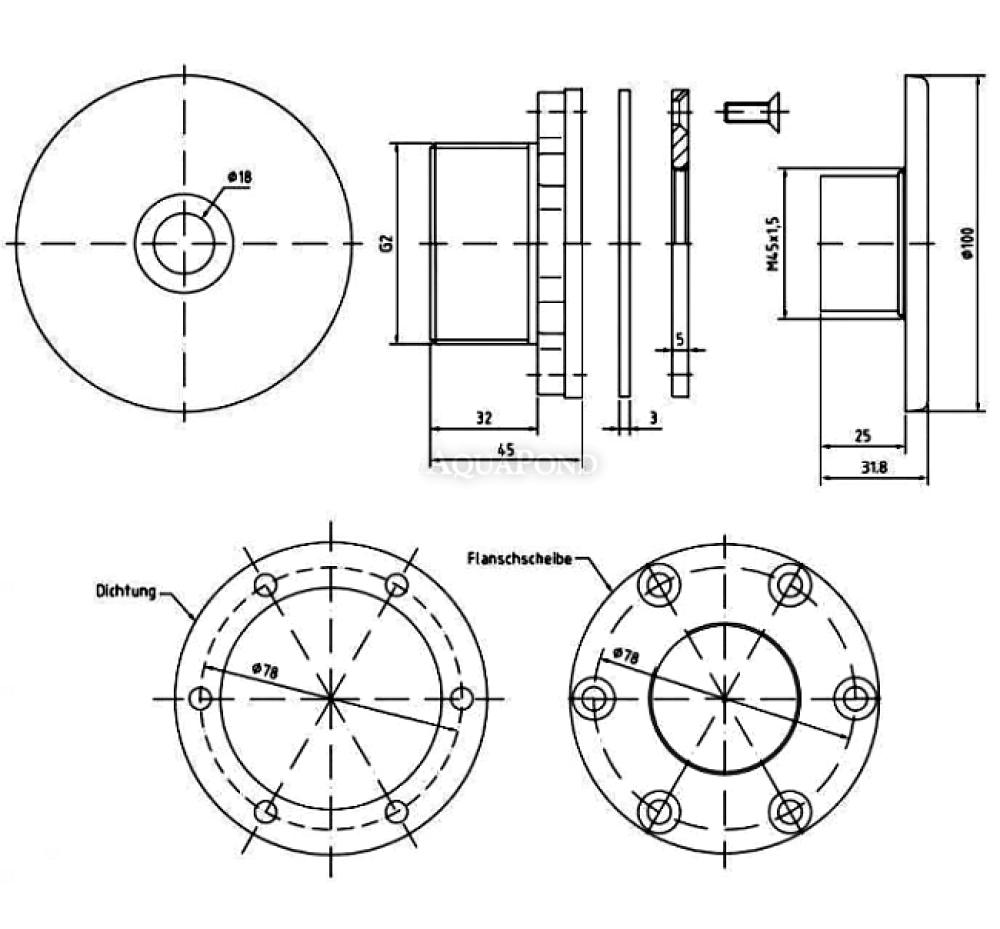

Nozzle dimensions
Nozzle benefits
- Made of durable stainless steel and red bronze;
- Flawless product quality;
- UV resistant;
- Acid resistant;
- Resistant to aggressive water chemicals;
- Exceptionally long-lasting and durable;
- Attractive exclusive design;
- Easy installation and maintenance.
The product is available only on order. Once confirmed, it can no longer be changed or canceled.
-
