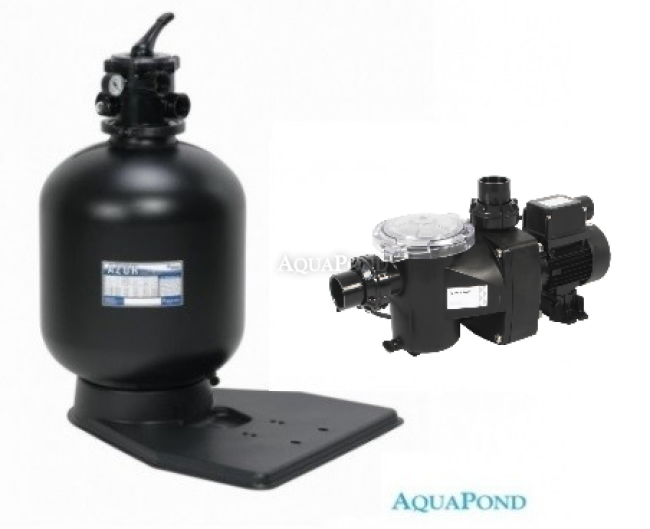

Azur Kit 560 filtration unit on a pallet with FreeFlo 12 m³/h pump without connecting piping

Azur Kit 560 filtration unit on a pallet with FreeFlo 12 m³/h pump without connecting piping

Azur Kit 560 filtration unit on a pallet with FreeFlo 12 m³/h pump without connecting piping

Description

The Azur Kit sand filtration system can be used for water recirculation in swimming pools, ponds, spas, and whirlpools. Read more
Product code: 51125112FF

  • Package Contents

    Technical Parameters

    • Tank material: Polypropylene
    • Filling quantity: 140 kg
    • Tank diameter: 560 mm
    • Max. working pressure: 2 bar
    • Flow rate: 12 m3 / h
    • Valve: 6-way top
    • Pump flow rate: 12 m3 / h
    • For pools up to: 60 m3
    • Filtration area: 0.25 m2
    • Max. temperature: 35 ° C

    Azur Kit 560 Filtration System on a Pallet with FreeFlo 12 m3/h Pump without Connecting Piping

    Sand filters work on the natural principle of water filtration. Water passes through a layer of sand, which traps fine dirt particles. Over time, the sand becomes clogged and needs to be backwashed, which is what the six-way valve is for. By turning the valve to the sand-washing position, we reverse the direction of water flow and flush the trapped dirt out to waste. This process can be repeated throughout the entire service life of the sand, which is very long compared to other filtration methods.

    Complete AZUR KIT

    The AZUR Kit sand filtration system Ø 380, 480 and 560 mm can be assembled into several filtration kits. As standard, they are always fitted with a 6-way top valve with pressure gauge. As additional equipment, you can choose a base for the filter itself or a base pallet with space for placing the pump. For the kits, you can individually choose between FreeFlo, Micro Delfino, Preva, and Bettar pumps. The filtration system can also be supplemented with connecting piping between the filter and the pump. The entire system is clearly illustrated in the tables for each individual filter.
