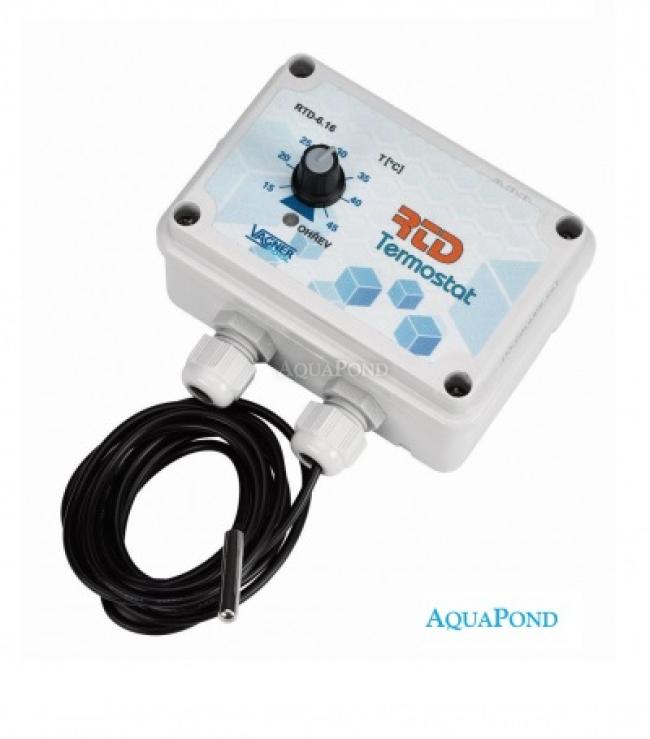

Electronic Thermostat in a Separate IP 55 Enclosure

This electric thermostat is housed in a plastic enclosure with IP 55 protection. The thermostat can be used to switch devices on and off (circulation pump, electric valve, and others) up to 1000 W. You can easily set the desired temperature using the rotary dial on the front of the thermostat. The front panel also features an LED indicator for operation status. Green - standby. Red - on.

Technical Parameters

• Power supply voltage: 230 V, 50 Hz
• Power consumption: 2 W
• Relay contact rating: (230V / 5 A) AC
• Dimensions (H x W x D): 110 x 75 x 50 mm
• Protection rating: IP 55
• Protection class: II (double insulation)
• Overvoltage category: II
• Operating ambient temperature: -10 to +40°C
• Weight: 234 g
• Control range: +15 to +40°C
• Thermostat cable length: 2.5 m
