Dosing Station VA DOS BASIC SALT - pH + ORP (Au)
Dosing Station VA DOS BASIC SALT - pH + ORP (Au)
Description
A simple and affordable range of VA DOS BASIC automatic dosing stations, designed for family pools with both fresh and salt water. Read more
-

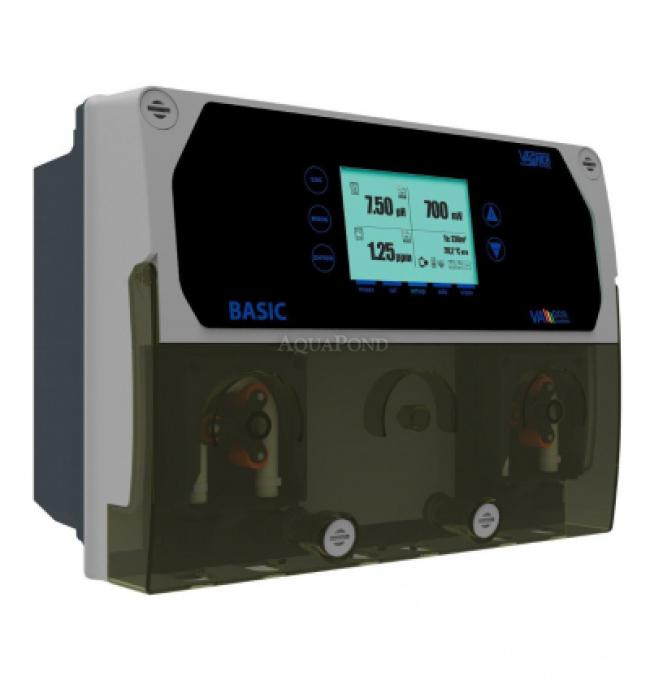

VA DOS BASIC SALT Dosing Station - pH + ORP (Au)
A simple and affordable range of VA DOS BASIC automatic dosing stations, designed for family pools with both fresh and salt water. An easily adjustable multi-parameter unit in a compact design with a display, measuring probes and drilling saddles for easy installation into existing piping systems. These automatic systems stand out for their simple installation and operation, accurate continuous measurement thanks to the pH or ORP probe, and the option to calibrate them using calibration solutions.
Operating protection:
- OFA alarm (OverFeedAlarm - over-dosing protection)
- Galvanically isolated measurement inputs
- Flow monitoring - not included
- Chemical level monitoring - not included
Dosing mode:
- ON / OFF
- Time-based (5 - 3600 s)
- Proportional (based on measured values)
Expansion options:
- Flow sensor
- Level probe
- VA DATALOG
- FCL measurement
- VArio
- Temperature sensor
The VA DOS BASIC SALT pH + Chlorine station also includes accessories for pH and ORP measurement and control
Accessories for pH measurement and control
- 2x drilling saddle
- pH probe
- probe holder
- calibration solutions (4/7)
- injection valve
- reducer for injection valve
Accessories for ORP measurement and control
- 2x drilling saddle
- ORP Au probe
- probe holder
- calibration solution (468 mV)
- injection valve
- reducer for injection valve
Schematic example of the hydraulic connection of the VA DOS BASIC SALT - pH+ORP station
Technical parameters
- Product type: Dosing station
- Power supply: 230 V AC
- Pump flow rate: 0.5 - 1.5 l/h
- Protection rating: IP65
- Measured parameters: pH and ORP
- Easy installation: Yes
- Power input: 20 W
- Warranty: 2 years
- Digital display: Yes
- Expansion option: Yes
Spare parts list
The complete list of spare parts can be found here:
Spare parts for the VA DOS BASIC SALT dosing station - pH + ORP (Au)
-
