SEKO VA DOS ECO pH Dosing Pump + pH Probe
SEKO VA DOS ECO pH Dosing Pump + pH Probe
Description
New SEKO VA DOS ECO peristaltic dosing pump with pH/Redox measurement and control, designed for pool operation. Intuitive controls ensure easy unit setup. Read more
Product code: 93DYNPHNK
-

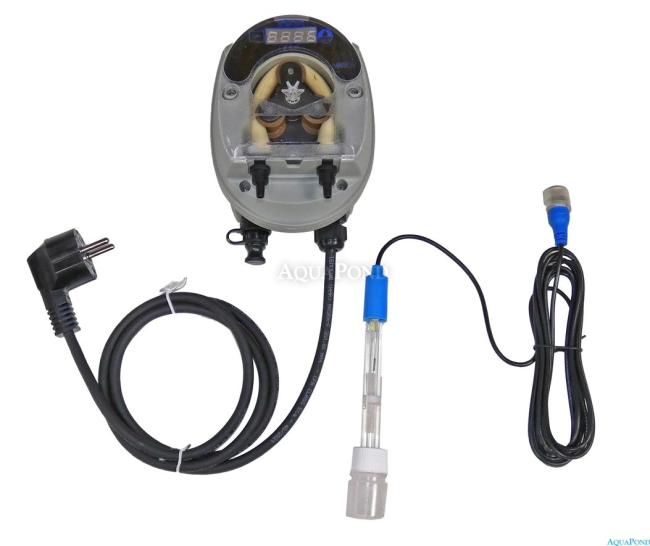

SEKO VA DOS ECO pH Dosing Pump with pH Probe
The new VA DOS ECO peristaltic dosing pump with pH/Redox measurement and control is designed for swimming pool operation. Intuitive controls ensure easy unit setup. With a dosing output of up to 1.5 liters of chemicals per hour, it can be used in pools with a volume of up to 200 m3. The pH probe, including the connecting cable with connector, is included in the pump package.
Features:
- Digital peristaltic dosing pump
- pH measurement / dosing
- pH measuring range: 3.8 - 8.2
- Dosing: You can choose pH- or pH+
- Flow rate: 1.5 l/h (at 1.5 bar pressure)

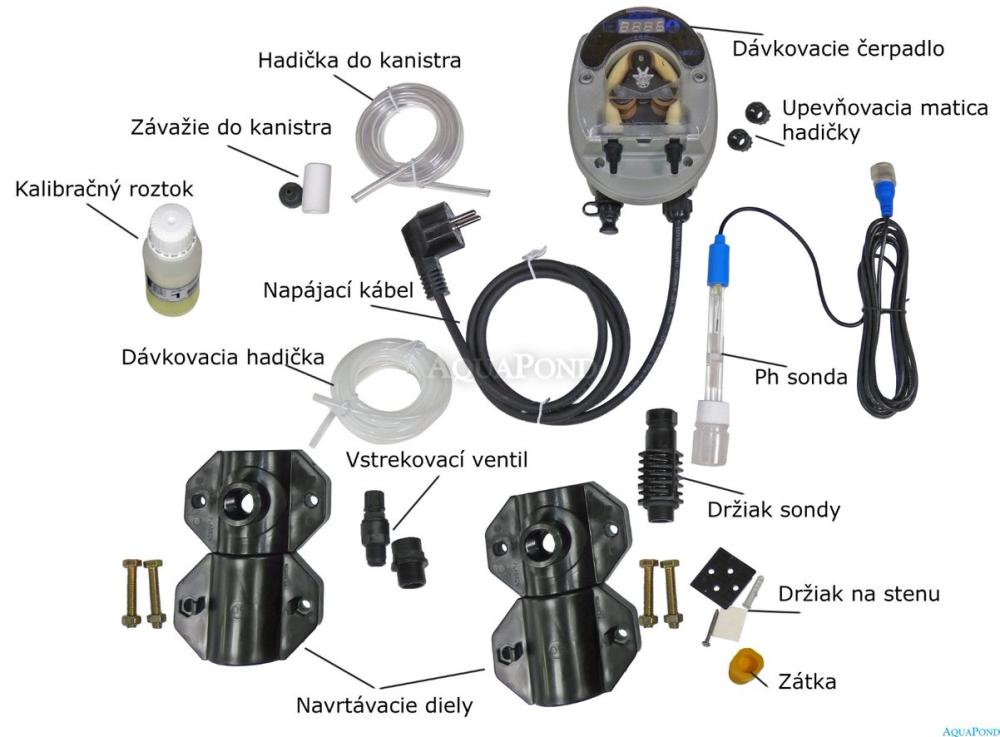

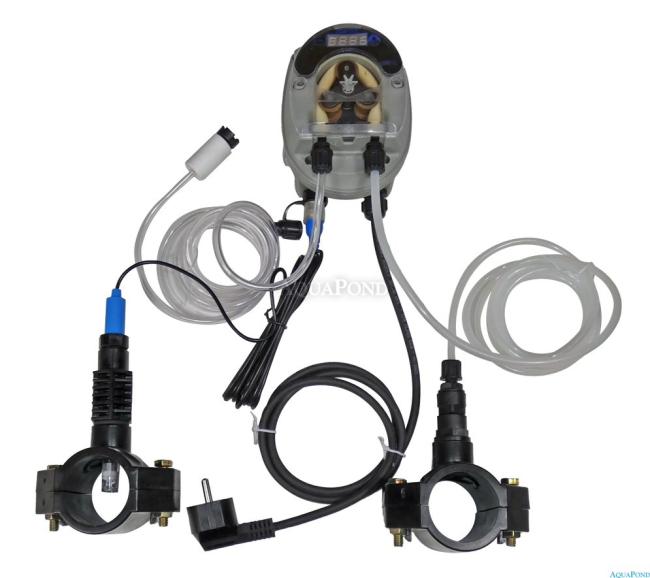

Package Contents
- VA DOS ECO pH control unit
- PVC hose 4x6 (2 m)
- Polyethylene discharge hose (3 m)
- Mounting screw (Ø = 6 mm)
- Suction strainer
- Injection valve FPM (3/8" GAS)
- pH probe
- PSS3 probe holder (1/2" GAS)
- PSS3 mounting/connecting clamp (Ø = 50 mm)
- pH 7 and pH 4 calibration solution
- Injection valve adapter
Electrical Connection

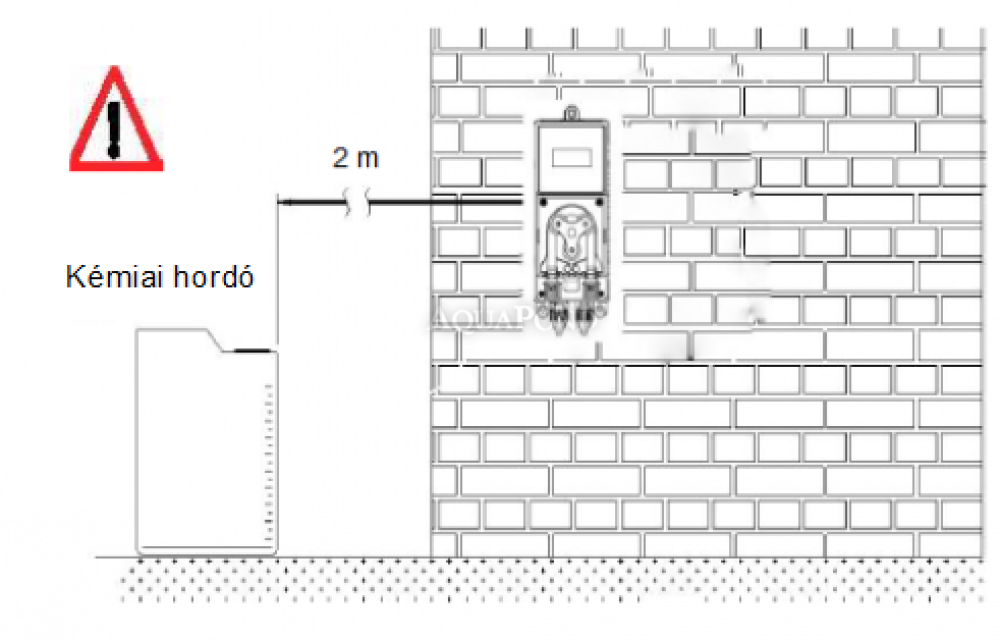

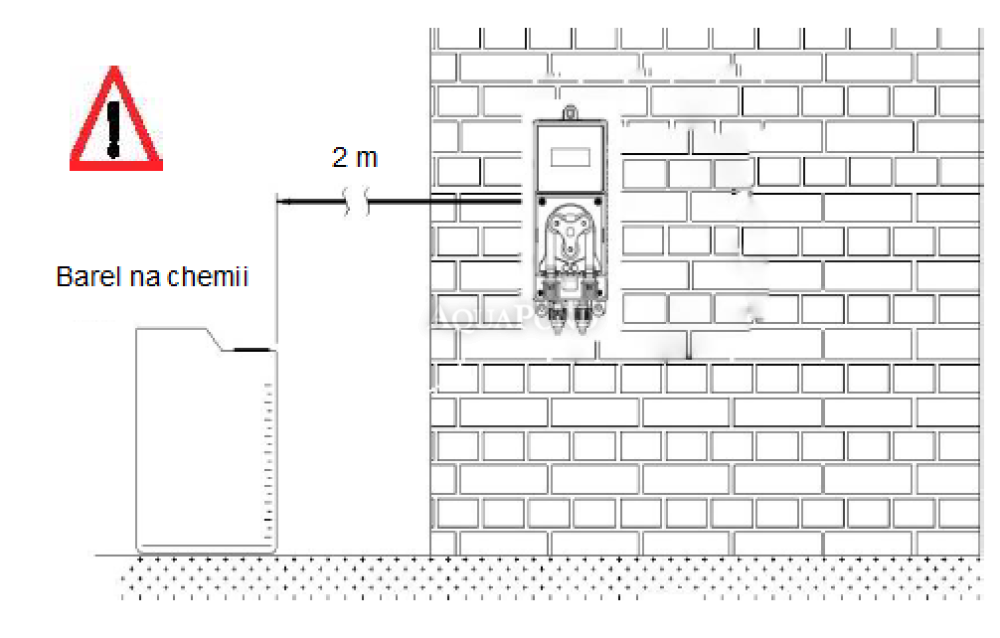

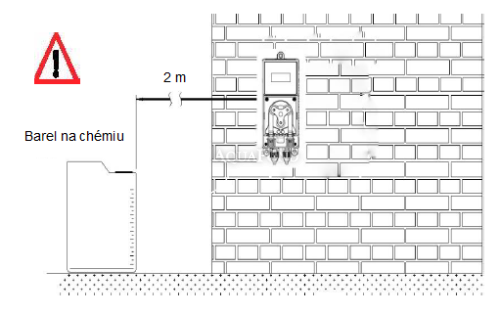

To prevent corrosive effects from pool chemicals, the dosing pump should be connected at least 2 meters away from the container
with pool chemicals. This helps prevent damage to contacts and inaccuracies in measurement.
Technical Specifications
- Product type: Digital peristaltic dosing pump
- Pump flow rate: 1.5 l/h
- Protection rating: IP65
- Measured parameter: pH
- Digital display: Yes
- Power supply: 230 V AC
- Weight: 1.542 kg
-
