Counter-current pump Badu 21-80 / 33G, 29°, 75 m3/h, 400 V, 3 kW
Counter-current pump Badu 21-80 / 33G, 29°, 75 m3/h, 400 V, 3 kW
Description
The Badu 21-80 pump is a high-performance and reliable unit designed specifically for pools with the Badu Jet Super Sport counter-current system. Read more
-
Counter-Current Pump Badu 21-80 / 33G, 29°, 75 m3 / h 400 V, 3 kW
The Badu 21-80 pump is a high-performance and reliable unit designed specifically for pools with the Badu Jet Super Sport counter-current system. Its construction ensures a safe and stable water flow without the motor coming into direct contact with the water, which extends its service life and increases operating safety. The pump housing is made of a durable material resistant to corrosion and the chemical composition of pool water, while the impeller and shaft are designed to handle intensive and long-term use. The pump is designed for easy installation and maximum flexibility when connecting to the pool piping. Water is drawn in through the suction inlet and, after passing through the pump, is returned to the pool in a strong and even stream. This stable water flow is key to creating a high-quality counter-current, allowing comfortable swimming in place or pleasant hydromassage. The thoughtfully designed pump housing allows the discharge outlet to be rotated by 90°, with an additional 29° adjustment possible, which significantly simplifies installation and pipe connection exactly according to the needs of the pool system. In combination with the Badu Jet Super Sport system, the pump ensures smooth and powerful water circulation, while the user can adjust the water flow to their preferences. The water from the nozzles is even and stable, which is important not only for sport swimming but also for relaxation. In terms of compatibility with pool water, it is important to mention that the 21-80 model is approved by the manufacturer for use in pools with salt concentrations up to 0.5% (5 g / l), which also allows it to be used in saltwater or semi-saltwater pools.
The pump is designed to make maintenance simple and practically trouble-free. It is enough to regularly check the seals and remove any dirt. For winter storage, it is advisable to drain the pump and store it in a dry place. Thanks to these features, the Badu 21-80 is an ideal solution for counter-current pools where reliability, performance, and long-term durability are essential.The product is available only on order. Once confirmed, it can no longer be changed or canceled.
Use
- Large whirlpools
- Hotel pools
- Pool and industrial filtration units
- Counter-current units and many others
Design
- Monoblock-type pump with a bellows mechanical seal mounted on a plastic protective shaft sleeve
- The motor/pump shaft does not come into contact with pool water, ensuring complete electrical separation
- Threaded inlet and outlet connection

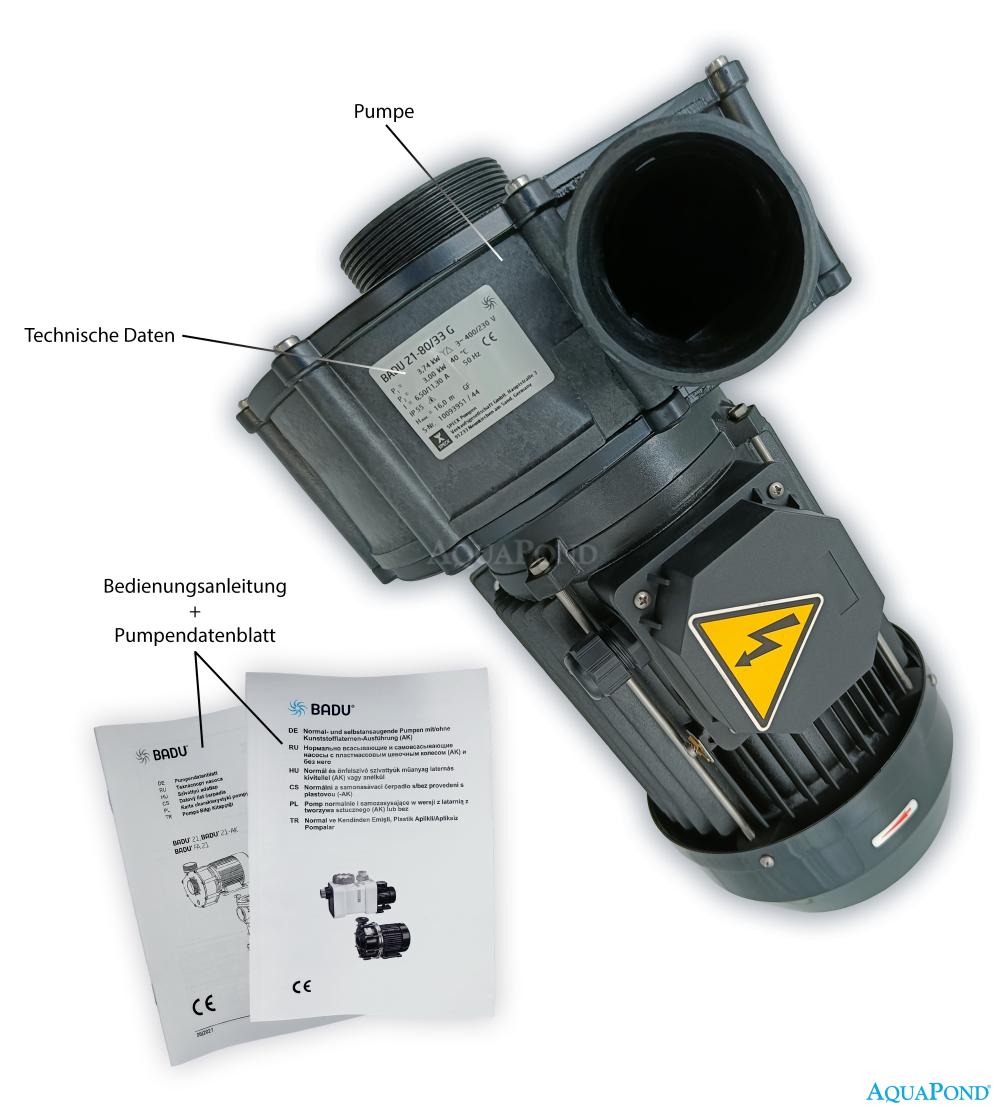

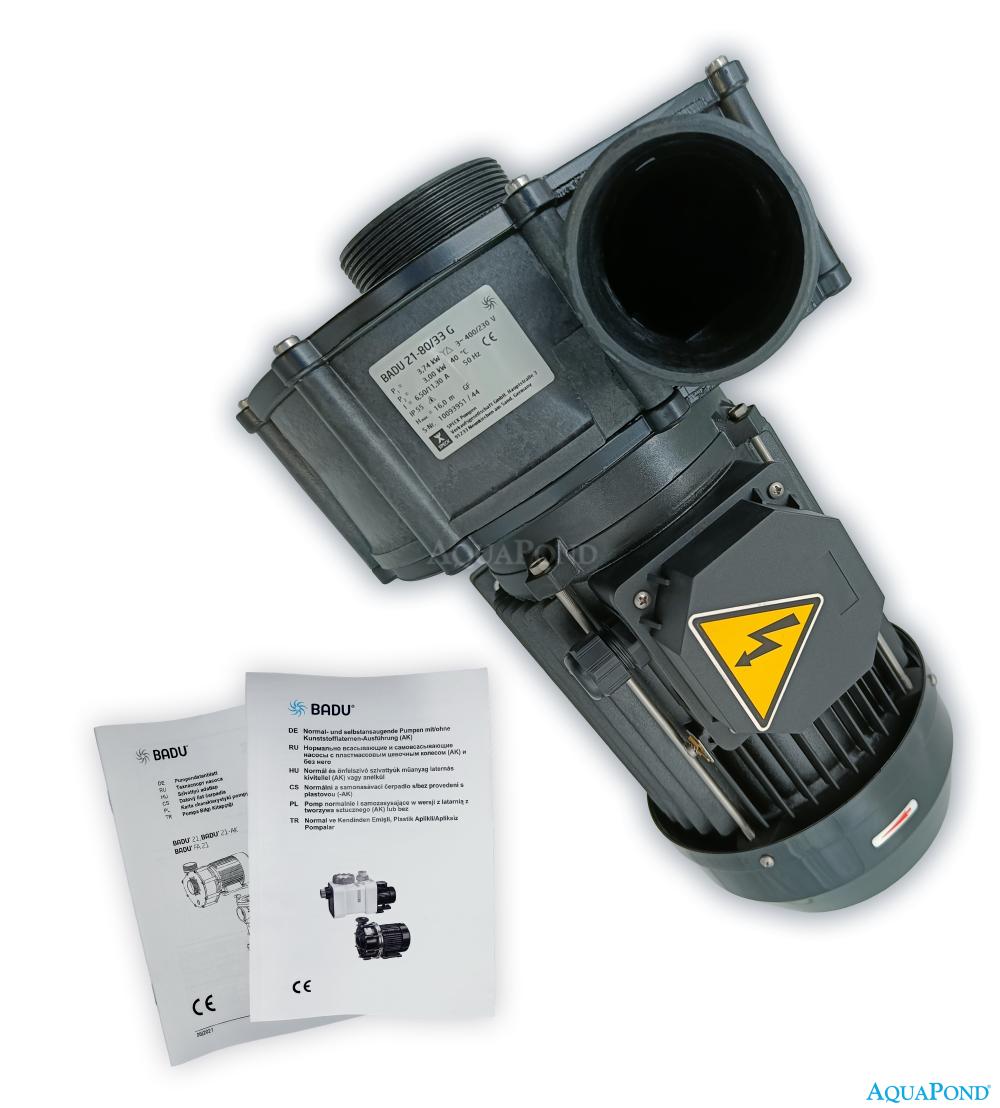

Package Contents
- pump
- manual + pump data sheet
Performance
Technical Parameters
- Flow rate: 75 m3 / h
- Power input: 3.55 kW
- Power output: 3.0 kW
- Voltage: 400 V
- Current: 6.2 A
- Speed: 2,850 rpm
- Suction: 140 mm
- Discharge: 110 mm
- Self-priming: no
- Max. operating temperature: 40 °C
- Max. operating pressure: 2.5 bar
- Motor protection: IP 55
- Use: suitable for both fresh and salt water with salt concentration up to 5 g / l
- Weight: 30 kg
-
