Automatic Dosing Pump for pH Control Basic NEXT
Automatic Dosing Pump for pH Control Basic NEXT
Description
Peristaltic dosing device NEXT is the simplest of its kind on the market. Read more
Product code: 66162
-
Automatic Dosing Pump for pH Control Basic NEXT
The NEXT peristaltic dosing unit is the simplest of its kind on the market. It includes all components necessary for correct installation, measurement, and pH dosing. The design prevents airlocks, requires minimal maintenance, and is resistant to chemical damage. Thanks to the dosing pump, you will have one major worry less around the pool: chlorine control and dosing.

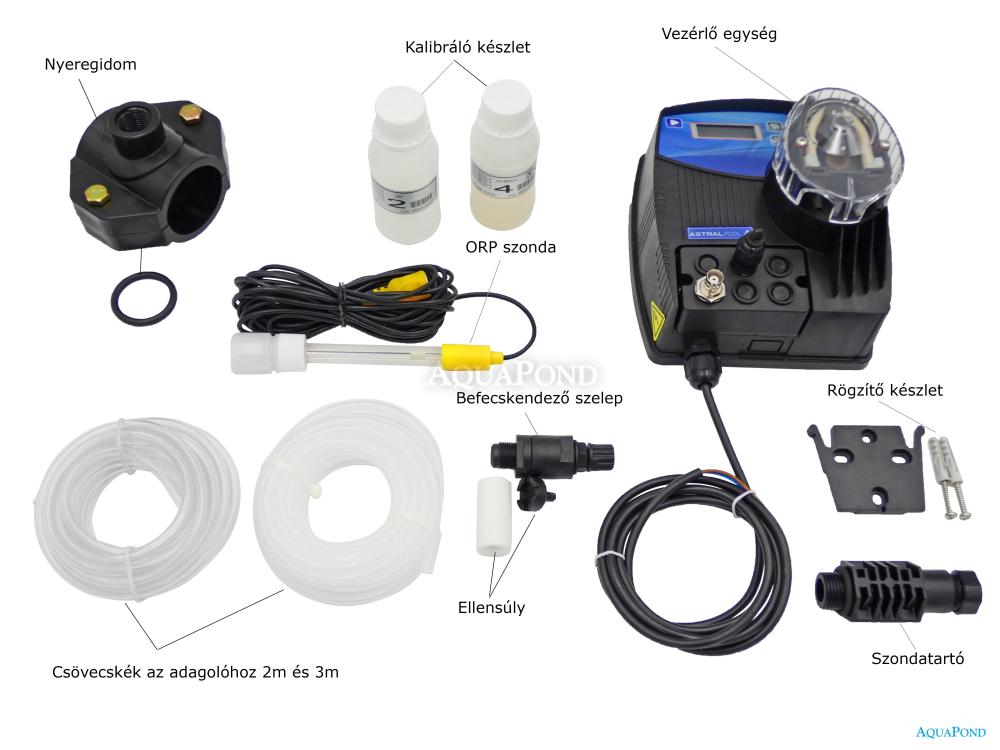

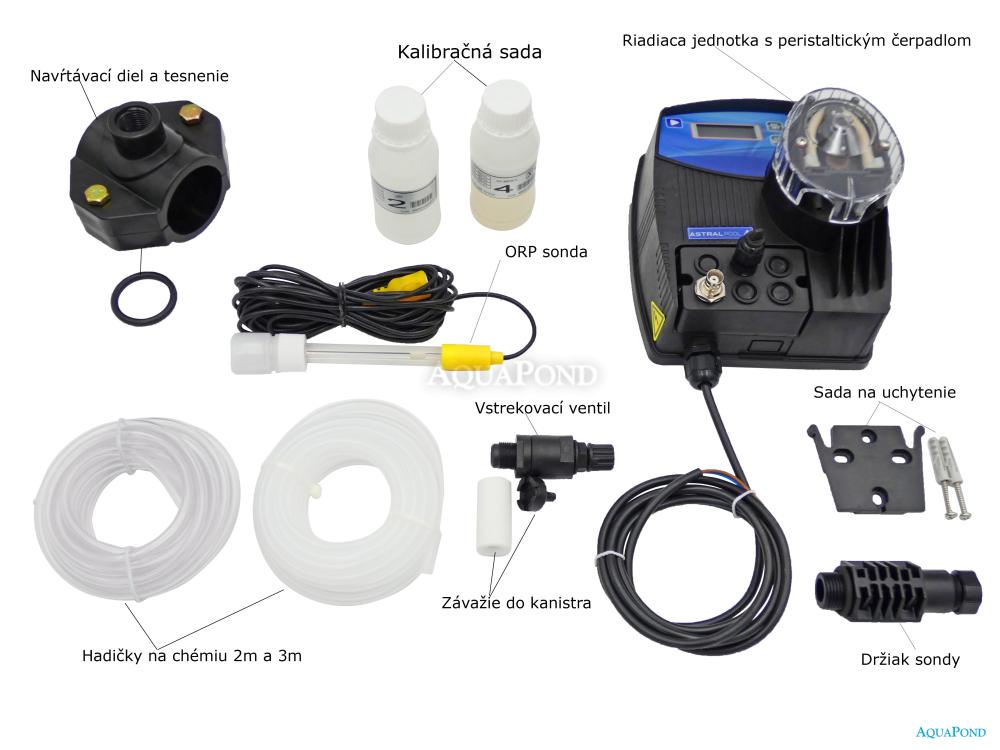

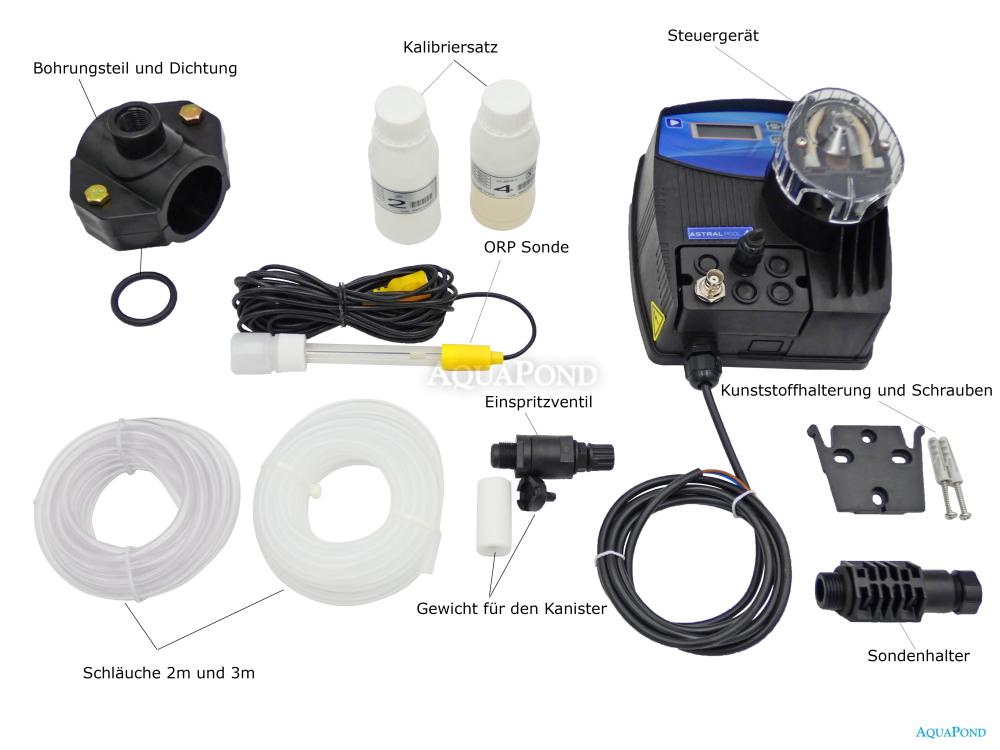

The pump comes with the appropriate electrode, calibration kit, and installation kit.
- adjustable setpoint 0 ÷ 14.0 pH
- ABS housing with IP-65 electrical protection
- LCD display

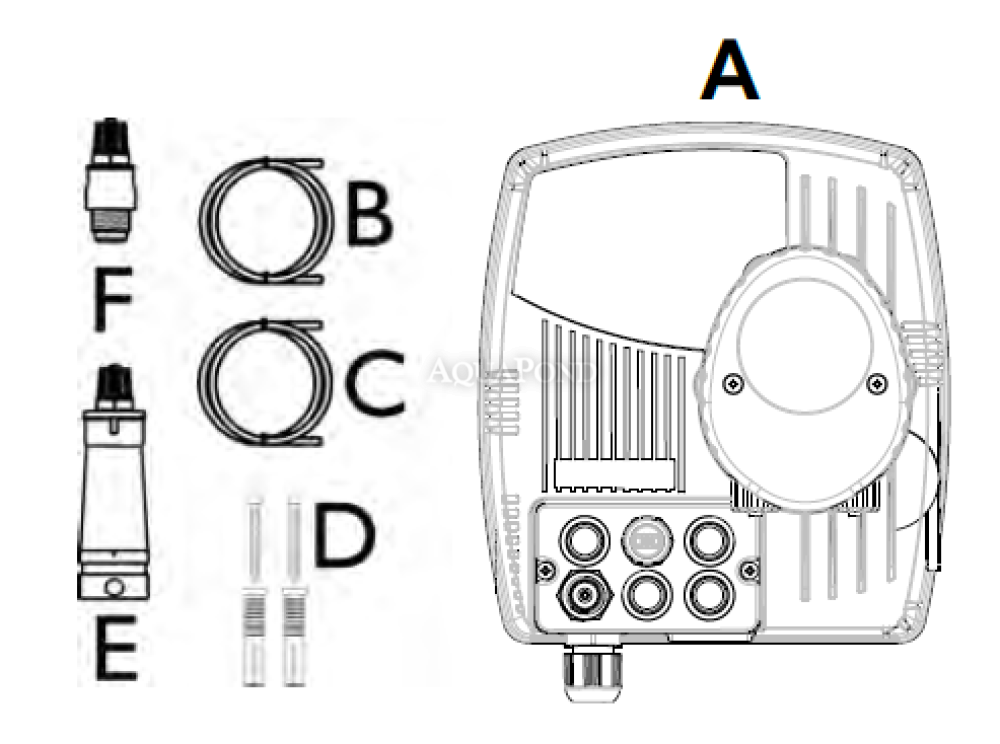

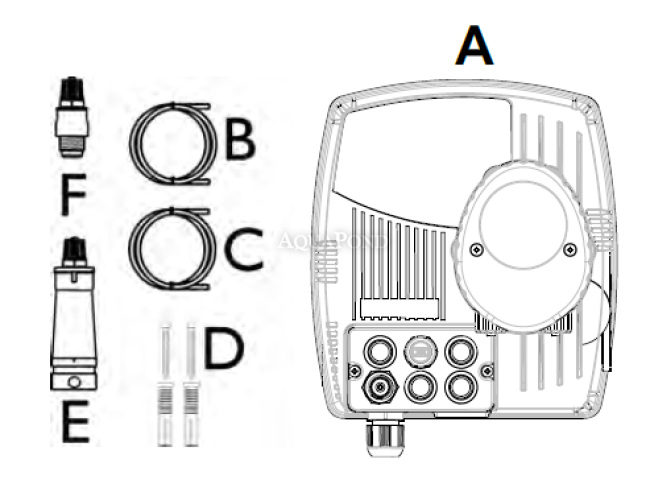

Package Contents
- A) Control unit with peristaltic pump
- B) Chemical suction hose - 2 meters
- C) Chemical discharge hose - 3 meters
- D) Wall plugs and screws for mounting
- E) Weight for the canister
- F) 3/8" injection valve for the pipe
Technical Specifications
- Dimensions: 191 x 155 x 123 mm
- Power supply: 230 V
- Power consumption: 6 W
- Protection rating: IP65
- Dosing capacity: max. 1.5 l/h
- Measurement range: 0 ÷ 14.0 pH
- Accuracy: +/- 3 mV
- Weight: 1 kg

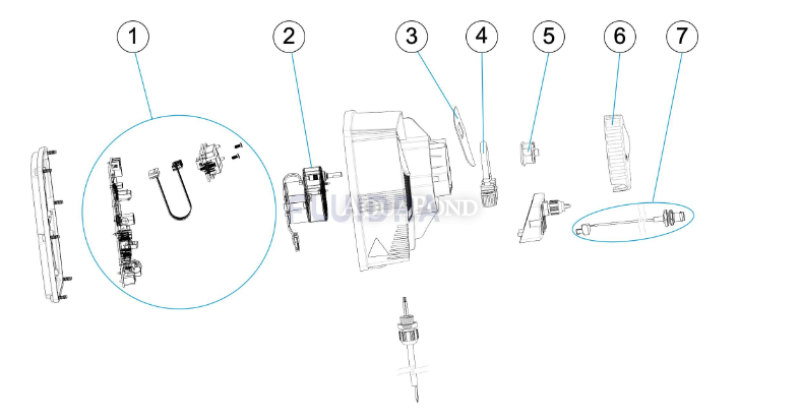

Spare Parts List
You can find the complete list of spare parts here:
Spare parts for the automatic dosing pump for pH Control Basic NEXT
-
