Astralpool pool nozzle, white color, for liner pools
Astralpool pool nozzle, white color, for liner pools
Description
The universal pool inlet is designed for concrete pools with liner. The inlet includes a double gasket, sealing flange, decorative cover, and locknut for prefabricated pools. Read more
-

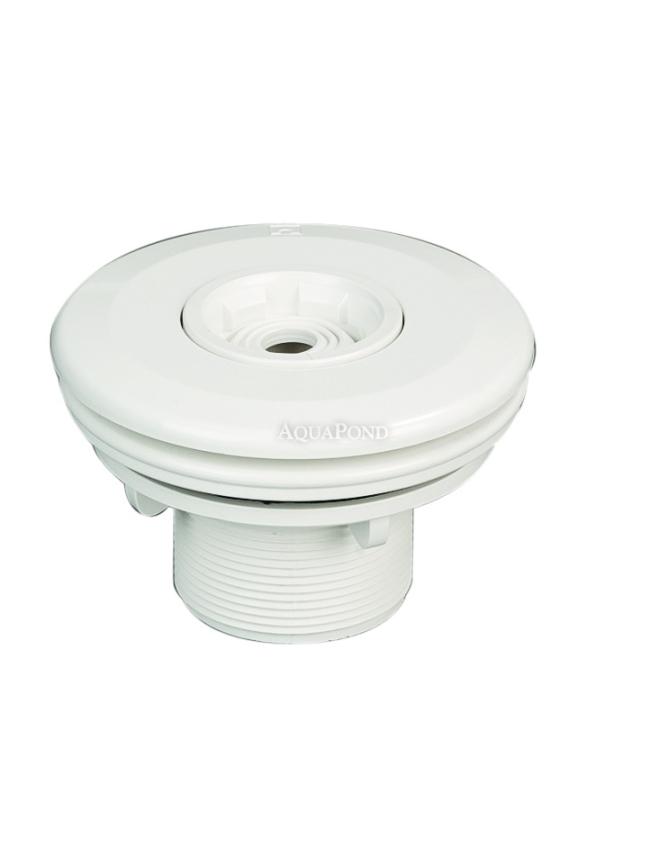

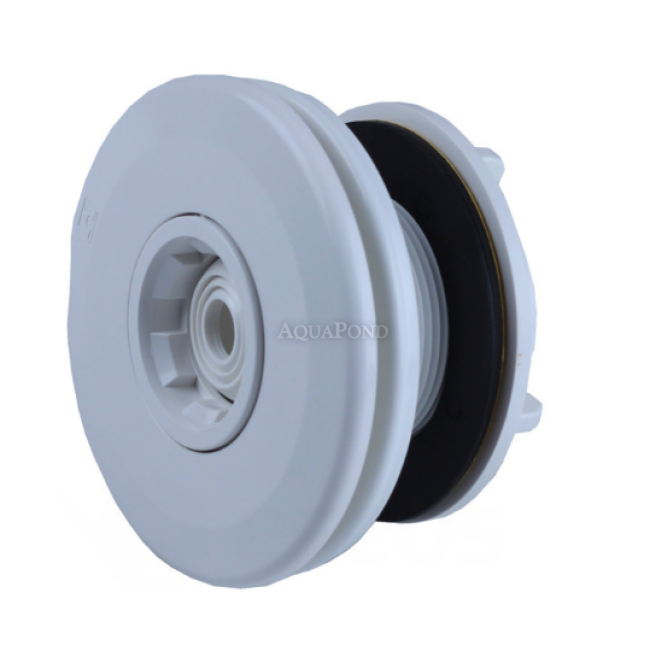

Astralpool pool inlet, white, for liner pools
The universal pool inlet is designed for concrete pools with a liner. The inlet comes with a double gasket, sealing flange, decorative cover, and locknut for prefabricated pools. It is made of white, chemically resistant ABS plastic. Pool inlets are used for water circulation and for returning filtered water from the filtration system back into the pool. They are installed in the wall opposite the skimmer, approximately 20–30 cm below the water surface. If you are building a pool from lost formwork or a fully concrete pool, leave an opening of approx. 200 x 200 mm at the future inlet location. The inlet is then fitted into this opening, and only after that is the opening shuttered and concreted in. Suitable for pools with an internal liner - both above-ground steel pools and in-ground concrete pools. It can also be used for prefabricated pools, although holes for the screws will need to be drilled.
Suitable for pools:
- Concrete pools with a liner
- Plastic pools
- Polypropylene pools
- Fiberglass pools

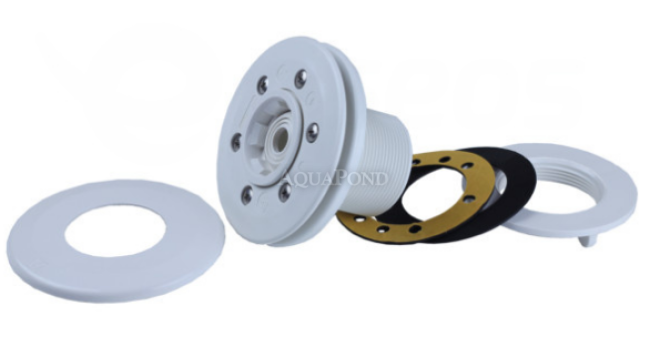

Package contents
- Inlet body with adjustable ball
- Set of gaskets for liner pools
- Flange for liner
- Decorative cover for the flange
- Set of screws
- Large locknut with gasket for plastic and steel pools
The pin and wrench are not included in the package and must be purchased separately.
Technical parameters

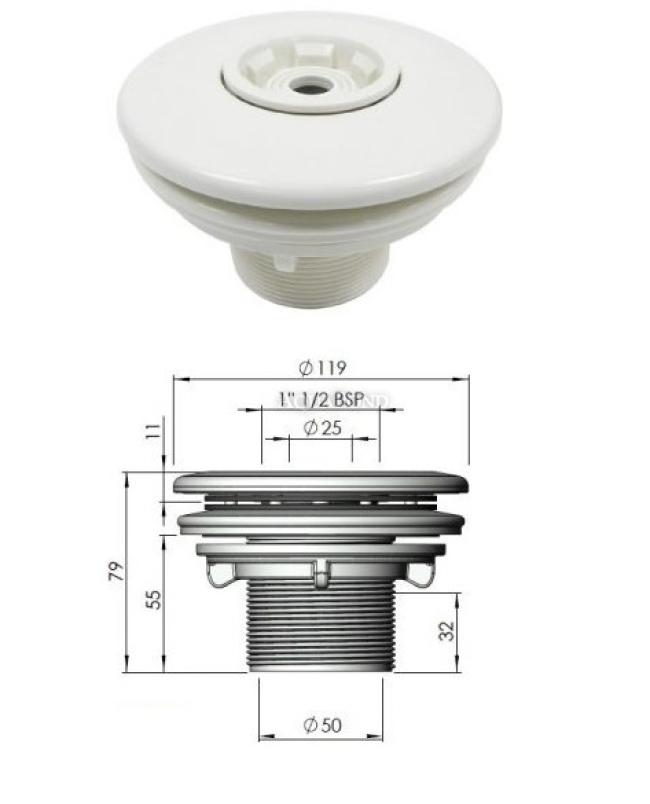

- Dimensions (w x h x d): 119 x 119 x 79 mm
- Connection: 2" external thread or 50 mm internal glue connection
- Water flow: from 2.5 to 7 m3 / h
Spare parts list
The complete list of spare parts can be found here:
Spare parts for Astral pool inlet for liner pools, white
-
