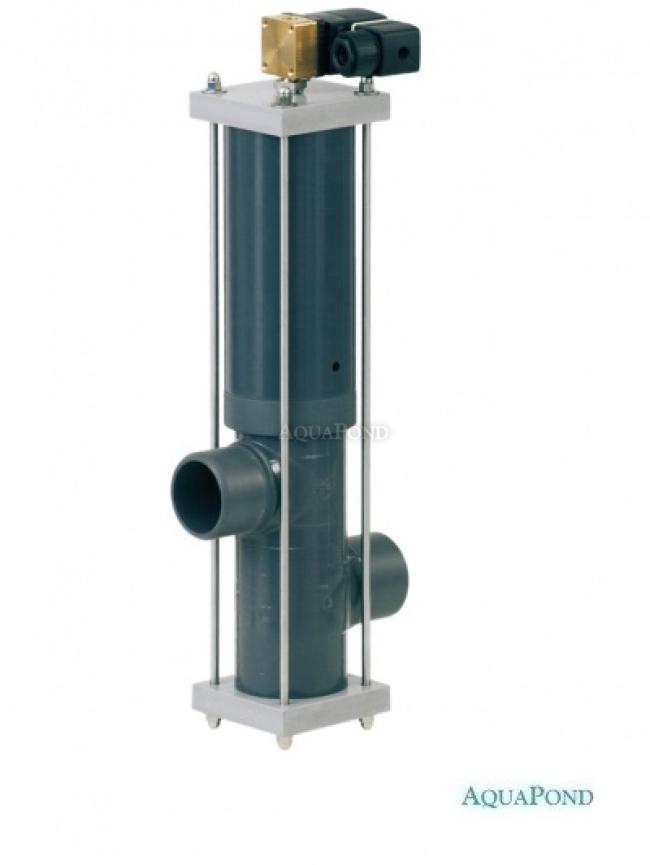

Aseko Ventil BESGO - 3-way backwash valve Ø75 mm

Aseko Ventil BESGO - 3-way backwash valve Ø75 mm

Aseko Ventil BESGO - 3-way backwash valve Ø75 mm

Description

BESGO valve is a pneumatic valve designed to change the flow direction when using one pump and multiple attractions, or to regulate the flow through the overflow and bottom drain (3-way version). Read more
Product code: D096017100

  • Aseko Ventil BESGO - 3-way backwash valve Ø75 mm

    The BESGO valve is a pneumatic valve designed to change the flow direction when using one pump and multiple attractions, or to regulate flow via overflow and bottom suction (3-way design).

    A major advantage of these valves is maximum operational safety. The position can be changed even while the filtration pump is running; however, it is always better and safer to adjust the valve without water flow.

    In the event of a power failure, the valve automatically returns to the "FILTRATION" position, so there is no risk of it getting stuck in an intermediate position or of accidental draining of water from the pool, as can happen in the case of mechanical damage to automatic 6-way valves.

    Technical parameters

    • Product type: 3-way backwash valve
    • Connection: D75 mm
    • Weight: 7.2 kg

    Schematic illustration of the operation of the 3-way BESGO valve using the AS Control Plus unit

    Water is drawn either through the bottom suction or the overflow channel, depending on the temperature.

    Schematic illustration of the operation of the 3-way BESGO valve - connecting 2 attractions to 1 pump
