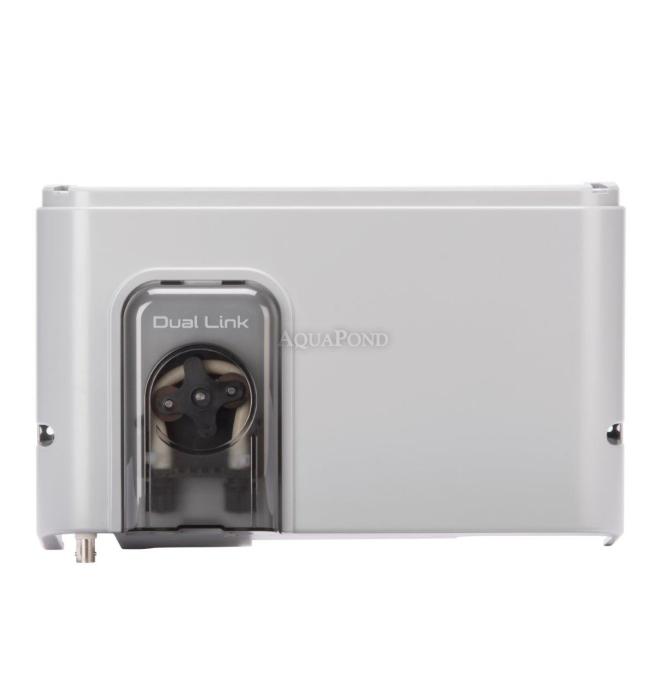

Additional ZODIAC Dual Link Module 2019 - pH, ORP

Additional ZODIAC Dual Link Module 2019 - pH, ORP

Additional ZODIAC Dual Link Module 2019 - pH, ORP

Description

Dual Link is an accessory for the EXO iQ / Magnapool IQ device that enables the measurement and adjustment of pH and ORP. The values are measured by probes, and the pH is adjusted by dosing acid with a ... Read more
Product code: 93165000

  • Additional Module ZODIAC Dual Link 2019 - pH, ORP

    Dual Link is an accessory for the EXO iQ / Magnapool IQ device, which enables pH and ORP measurement and control. The values are measured by probes, and pH is adjusted by dosing acid using a peristaltic pump.

    • The performance of Dual Link depends on the performance of the TRi Expert device
    • pH measuring range: 0.0 - 12.0 pH
    • ORP measuring range: 100 - 1000 mV
    • Calibration of the pH probe with the included pH 4.00 and pH 7.00 solution, and the ORP probe with 468 mV solution
    • The peristaltic pump is capable of dosing 1.2 l/h

    Package Contents

    • pH probe
    • ORP probe
    • pH 4.00 and pH 7.00 (calibration solution in sachets - 3 pieces)
    • ACL calibration solution + 468 mV (calibration solution in sachets - 3 pieces)
    • Pipe drill bit
    • POD set
    • Installation kit

    Technical Specifications

    • Product type: Additional module for pH and ORP measurement
    • Recommended pool volume: max. 150 m3
    • Protection rating: IP23
    • Minimum required salt level: 3 g/l
    • Optimal required salt level: 4 g/l
    • Weight: 3.6 kg
    • Max. temperature: 60 °C
    • Max. operating pressure: at the injection point - 1.5 bar
    • Easy installation: Yes
    • Expandable: Yes
    • Warranty period: 2 years

    Spare Parts List



    The complete list of spare parts can be found here:



    Spare parts for the ZODIAC Dual Link 2019 additional module - pH, ORP
