Temperature differential controller - stainless steel sensor well 1/2"
 |
 |
Temperature differential controller - stainless steel sensor well 1/2"
Description
Accessories for differential temperature controllers. Read more
Product code: 56100901
-

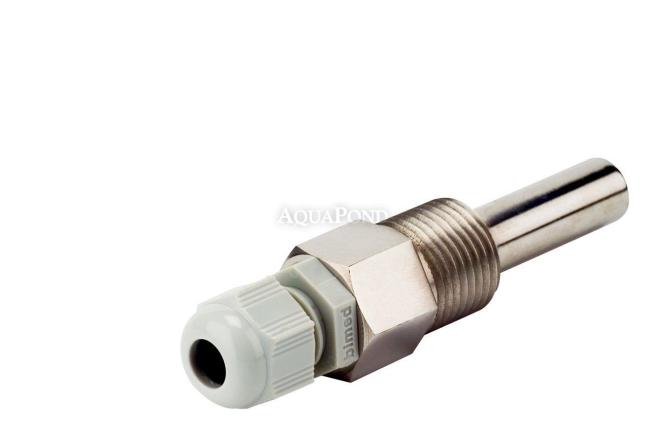

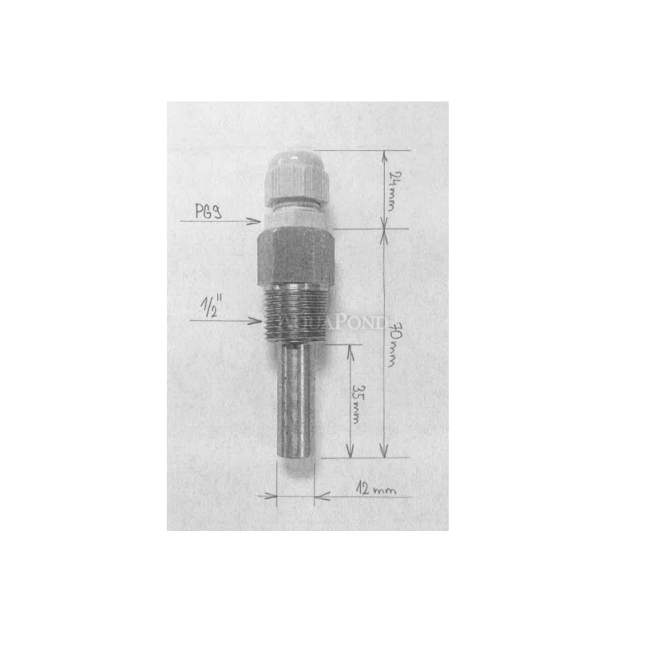

Temperature Differential Controller - Stainless Steel Sensor Well 1/2“
This control device regulates the temperature of pool water heated by solar collectors. The desired water temperature is set using the control element located on the controller housing. Heating is controlled by two-way or three-way electric valves (not included) with an operating voltage of 230 V.
For systems with a closed collector water circuit, the solar controller can also control the circulation pump. The controller monitors the temperature of the water in the pool as well as in the collector. If the collector water temperature is higher than the pool temperature (e.g. by 5 °C - the temperature difference can be adjusted), the controller switches on: the pool pump, circulation pump, or electric valve.
- electricity
- propane
- oil
- gas
- heat pump
- solar panel
Temperature sensors are included in the package
Heating regulation and control can be carried out manually, i.e. by closing or opening the relevant valve, or by means of an automatic controller, which allows maximum use of solar energy depending on the temperature difference between the pool water and the temperature in the collectors. When using fully automatic operation, the solar system needs to be supplemented with a temperature differential controller and an electric valve. On the controller, we set the desired pool water temperature, and it ensures the opening and closing of the valve.
