Installation kit for Speck counter-current system - Badu Jet Turbo Pro Salt 10 m, 3.60 kW, 400 V


Installation kit for Speck counter-current system - Badu Jet Turbo Pro Salt 10 m, 3.60 kW, 400 V

Description

Badu Jet Turbo Pro Salt is the latest resistance swimming system from Speck, designed for demanding users who are looking for performance, quality, and comfort in one solution. Read more
Product code: 2325200000

  • Installation kit for Speck counter-current system - Badu Jet Turbo Pro Salt 10 m, 3.60 kW, 400 V

    Badu Jet Turbo Pro Salt is Speck’s latest resistance swimming system, designed for demanding users who are looking for performance, quality, and comfort in one solution. Its intuitive new design enables more than a threefold increase in flow rate compared to standard counter-current systems, significantly improving training options and the swimming experience. Thanks to the impeller drive, Badu Jet Turbo Pro Salt creates a strong yet smooth and stable water flow without turbulence, ensuring a natural swimming feel. The system is equipped with a quiet motor with variable output, which can be easily controlled directly underwater using LED piezo buttons or remotely via a smartphone.
    The Badu Jet Turbo Pro Salt system is designed for easy installation in various types of pools - whether it is a new build or an existing pool. It is suitable for all common constructions, including concrete, fiberglass, or liner pools with steel or plastic structures. The counter-current system can be installed in all pools with a wall thickness of up to 7 mm. The counter-current is switched on and off using integrated piezo buttons, or very conveniently via remote control. Before installation, be sure to read the complete installation manual.

    Design

    The impeller is safely positioned behind the main cover, which is elegantly recessed into the pool wall. Water is drawn in through the front panel and then returned to the pool in a powerful stream, creating an intense counter-current.

    The counter-current can be easily switched on or off using the built-in piezo buttons or the remote control. The same way, its intensity can also be conveniently adjusted.

    Advantages

    • High performance ensures a professional swimming experience
    • Impeller drive creates an even flow without water turbulence
    • Speed can be adjusted to suit the swimmer’s ability - from beginners to advanced swimmers
    • Operation is simple and accessible - underwater and via mobile app
    • Quiet operation is ensured by a permanent magnet motor
    • Direct integration into the pool wall reduces piping installation costs
    • The large safety cover protects against entrapment and ensures worry-free use

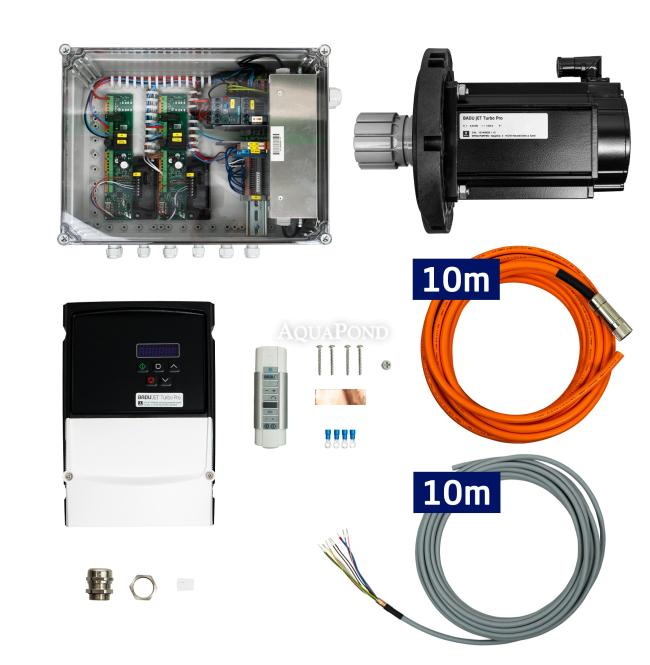

    Package contents

    • 1x Drive unit
    • 1x Control unit with frequency converter
    • 1x Remote control
    • 1x 10 m power cable

    Not included in the package (must be purchased separately):

    • Plastic built-in housing
    • Suction cover
    • Impeller unit
    • Nozzle unit
    • Piezo button
    • Seals and screws

    Technical parameters

    Frequency converter:

    • Power: 4 kW
    • Mains voltage: 3~ 380 - 480 V
    • Weight: 6 kg
    • Ambient temperature range with drive enclosed: -20 - +40 °C
    • Storage ambient temperature range: -40 - +60 °C
    • Maximum installation altitude: 2000 m; Derating above 1000 m: 1% / 100 m
    • Maximum humidity: 95%, non-condensing

    Material overview

    • Drive unit: PPE, PP, stainless steel
    • Covers / screens: ABS, stainless steel
    • Nozzle unit: ABS
    • Built-in housing: ABS
    • Sliding bearing: SiC (silicon carbide)
    • Screws: stainless steel
    • Intermediate flange: PPE

    Drive unit:

    • Flow rate: 150 - 350 m3 / h
    • Power input P1: 3.6 kW
    • Motor output P2: 3 kW
    • Number of nozzles: 1x Ø 172 mm
    • Impeller (diameter): 195 mm
    • Motor protection IP65
    • Discharge speed: 1.80 - 4.10 m / s
    • Nozzle adjustable in all directions: ± 5 degrees
    • Weight: 51.5 kg
