Filtration Unit WM300 TOP + Micro Delfino II 25 Pump - 4 m³/h, 230V
Filtration Unit WM300 TOP + Micro Delfino II 25 Pump - 4 m³/h, 230V
Description
Complete WM 300 TOP sand filtration system for small above-ground pools. Read more
-

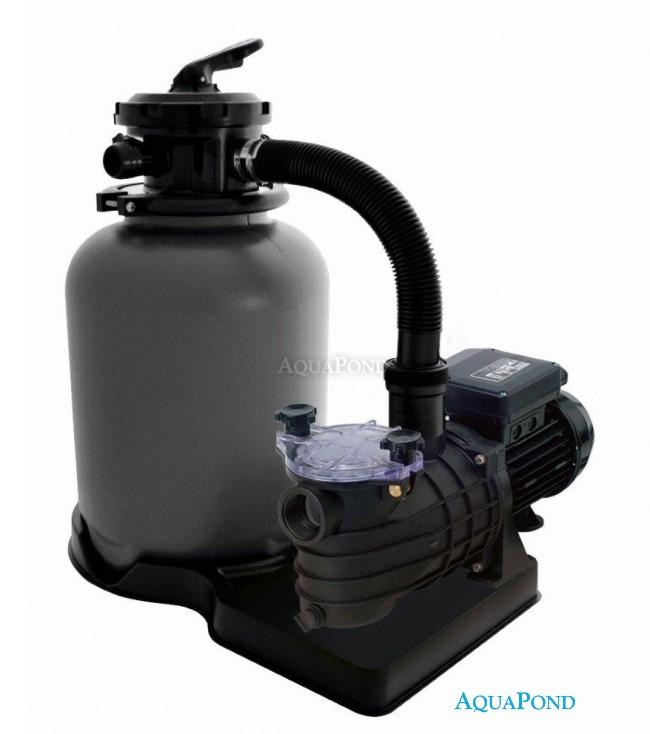

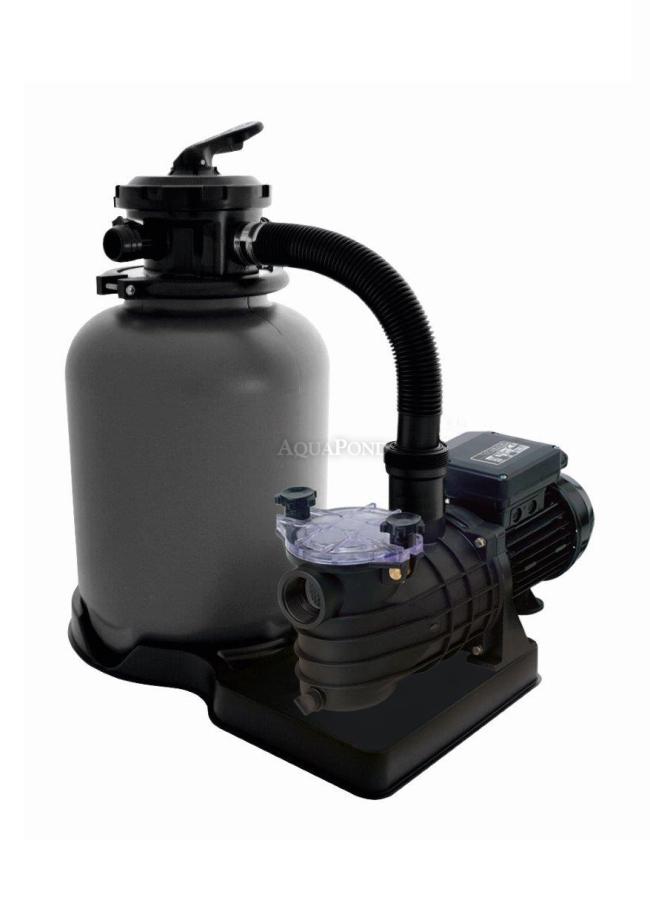

WM300 TOP Filtration Unit + Micro Delfino II 25 Pump - 4 m3/h, 230V
The WM300 TOP filtration unit can be used for water recirculation in swimming pools, ponds, spas, and whirlpools. Sand filters work on the natural principle of water filtration. Water passes through a layer of sand that traps fine impurities. Over time, the sand becomes clogged and needs to be backwashed, which is done using the six-way valve. By turning the valve to the sand backwash position, the direction of water flow changes and the trapped dirt is flushed out to waste. This process can be repeated throughout the entire service life of the sand, which is very long compared to other filtration methods. The WM300 TOP sand filtration unit, 4 m3 / h, consists of a sand filter tank, a pump with a hair prefilter, a 6-way valve, and a base (pallet). The WM300 TOP filtration unit is delivered disassembled. It must be assembled before connecting it to the pool. Installation and commissioning are simple. The filtration unit can be connected to the pool circuit by gluing it to PVC pipes or flexible hoses with a diameter of 50 mm.
Package contents:
- WM300 filter tank
- Micro Delfino II 25 Pump - 4 m3/h, 230V
- Assembly and operating instructions
- Pallet
Technical Parameters
- Tank material: Polyethylene
- Filling quantity: 25 kg
- Tank diameter: 300 mm
- Max. working pressure: 2 bar
- Valve: 6-way top-mounted
- Base: Yes
- Pump flow rate: 4 m3/h
- For pools up to: 30 m3
- Max. temperature: 35 °C
-
