Filtration system - TOP VF 450, on a pallet with Espa Nox 50 pump, 9 m³/h, with a six-way valve
Filtration system - TOP VF 450, on a pallet with Espa Nox 50 pump, 9 m³/h, with a six-way valve
Description
The TOP VF 450 filtration unit is a top-tier solution for anyone looking for maximum efficiency, long service life, and consistently high water quality without unnecessary hassle. Read more-
Filtration Unit - TOP VF 450, on a pallet with Espa Nox 50 pump, 9 m3 / h, with 6-way valve
The TOP VF 450 filtration unit is a premium solution for anyone looking for maximum efficiency, long service life, and consistently clean water without unnecessary hassle. For effective maintenance and crystal-clear water in your pool, choosing the right system is essential — one that can reliably handle daily use and ensure optimal circulation. This model stands out thanks to its high-quality workmanship and the use of highly durable materials that resist strong UV radiation, pool chemicals, and salt water. Thanks to its precisely engineered internal hydraulics, the unit effectively captures even the finest dirt, dust, and leaves, successfully preventing algae growth and cloudy water. Operation and maintenance are designed with maximum user comfort in mind. With the easy-to-read top-mounted valve, routine backwashing is quick and effortless, saving you both time and operating costs. The TOP VF 450 is therefore a guarantee that your pool will be ready throughout the season to provide you and your loved ones with a clean and safe retreat.
Features
- The filter tank is made of high-quality polypropylene and is equipped with a top 6-way valve
- The valve is connected to the tank by piping
- The 6-way valve is fitted with a screw connection with a d50 outlet
- The filter tank is filled with silica sand with a grain size of 0.4 - 0.8 mm
- The filtration system includes an Espa Nox pump. The complete set is supplied disassembled in one box
Valve Positions and Their Functions
The valve positions are as follows:
- Pool filtration: Water is drawn from the skimmer or bottom drain, passes through the filtration system where it is cleaned, and then returns to the pool through the nozzles.
- Backwash cycle: The filter media (sand) is cleaned, while the dirty water is discharged to waste.
- Rinse after backwash: Used to flush out fine dirt remaining after backwashing.
- Draining water from the pool: If the pool is equipped with a bottom drain, it can be completely drained.
- Circulation bypassing the filter tank: Water bypasses the filtration system, suitable for example when priming the pump.
- Closing the entire circulation system: Used to shut off the system during maintenance or cleaning of the pump prefilter.
Package Contents
- TOP VF 450 polypropylene filter tank
- 6-way top valve
- Espa Nox pump
- pressure gauge
- filter base
- connecting hose
Technical Parameters
- Tank material: Polypropylene
- Power supply: 230 V

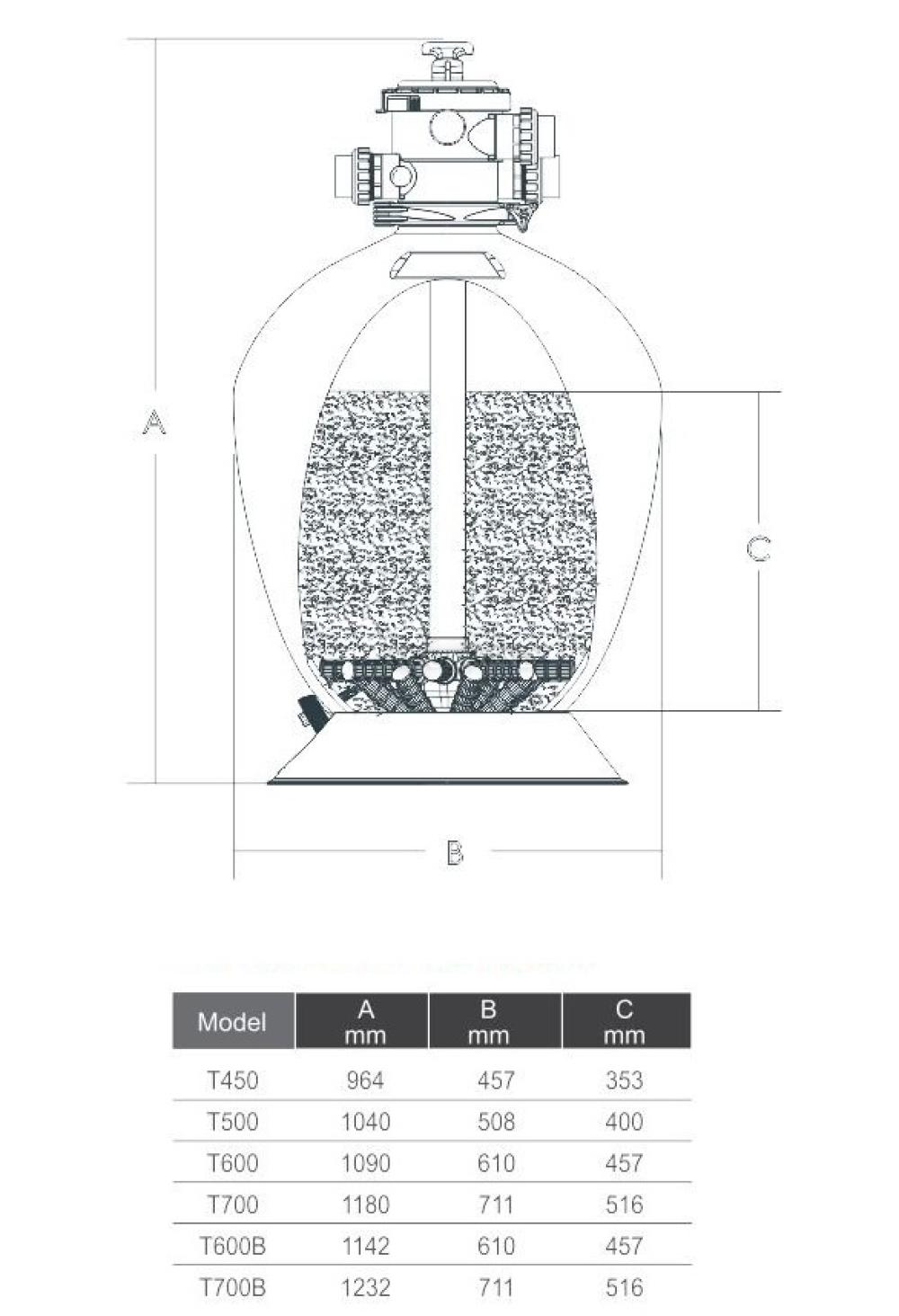

- Tank diameter: 450 mm
- Recommended pool volume: up to 35 m3
- Max. working pressure: 4 bar
- Connection: 50 mm
- Max. operating temperature: 40°C
- Valve type: 6-way top
- Filtration capacity: 9 m3 / h
- Sand fill: 75 kg (not included)
-
