AutoChlor Salt Chlorinator AC 20 SMC - up to 80 m³
AutoChlor Salt Chlorinator AC 20 SMC - up to 80 m³
Description
Salt water treatment with a self-cleaning cell. Read more
Product code: 93120020
-
AutoChlor Salt Chlorinator AC 20 SMC - up to 80 m³
Auto Chlor – AC20SMC – up to 90 m3 indoor pool, 80 m3 outdoor pool (self-cleaning electrode cell)
- Sanitation system for pool water by Autochlor.
- Water treatment in the pool by saltwater electrolysis.
- Saltwater electrolysis releases free chlorine for immediate disinfection.
It is necessary to use two titanium grounding elements, one before and one after the chlorinator. When using saltwater treatment, use a UV sterilizer only with a plastic housing.
Pool water should be slightly salty: 3 - 4 grams per 1 liter of water. From this salt, the Autochlor system creates chlorine molecules from salt (NaCl), which it breaks down into sodium (Na) and chlorine (Cl). This reaction is achieved by low voltage in insoluble titanium electrodes. Service life: 12,000 operating hours.
Warning:
When using the Autochlor system, there must be no stainless steel parts in the pool (titanium only), as immediate corrosion may occur when the system is started. Water treated in this way does not smell of chemicals, because the system prevents the formation of chloramines, which are the cause of the unpleasant odor.

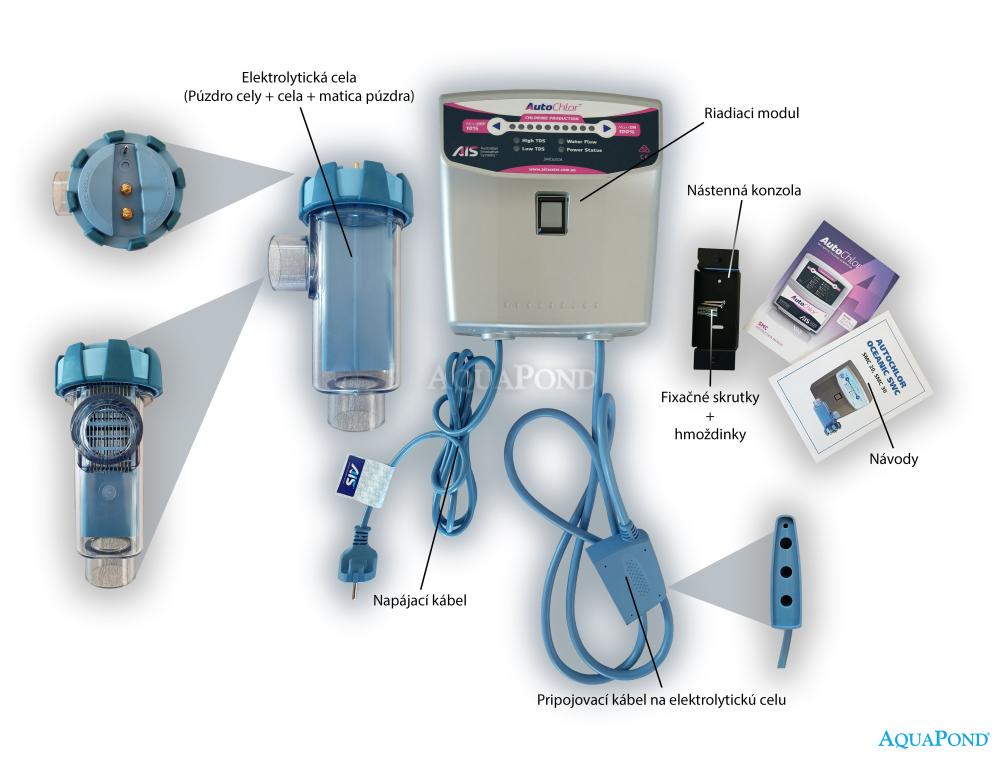

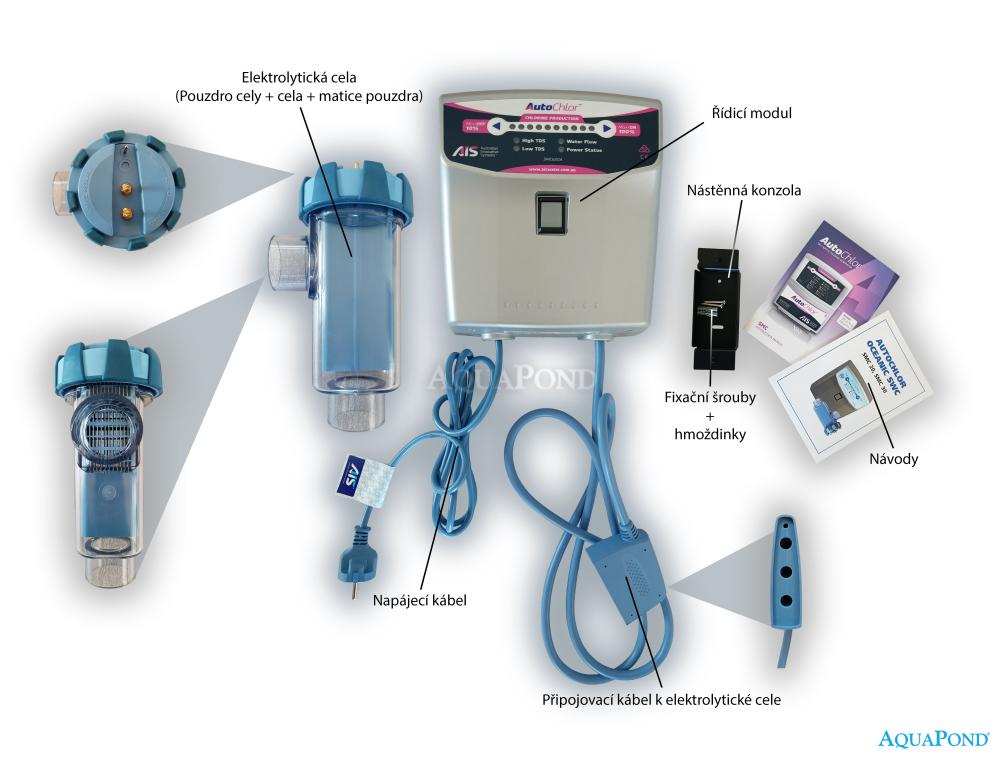

Package contents:
- control unit with power cable
- connecting cable between the unit and the cell
- cell with electrodes
- installation and operating instructions
Technical specifications of the SMC 20 salt chlorinator
- For pools: up to 80 m3
- Power supply: 230 V
- Power consumption: 250 W
- Water flow: 12 – 24 m3 / h
- Chlorine gas production: 30 g / h
- Electrode life: 12,000 hours
- Weight: 4.5 kg
Spare parts list
You can find the complete list of spare parts here:
Spare parts for Autochlor AC 20 SMC - up to 80 m³
-
