Wall inlet nozzle KRIPSOL for liner pools
Wall inlet nozzle KRIPSOL for liner pools
Description
Kripsol Nozzle - for liner pools. Read more
-

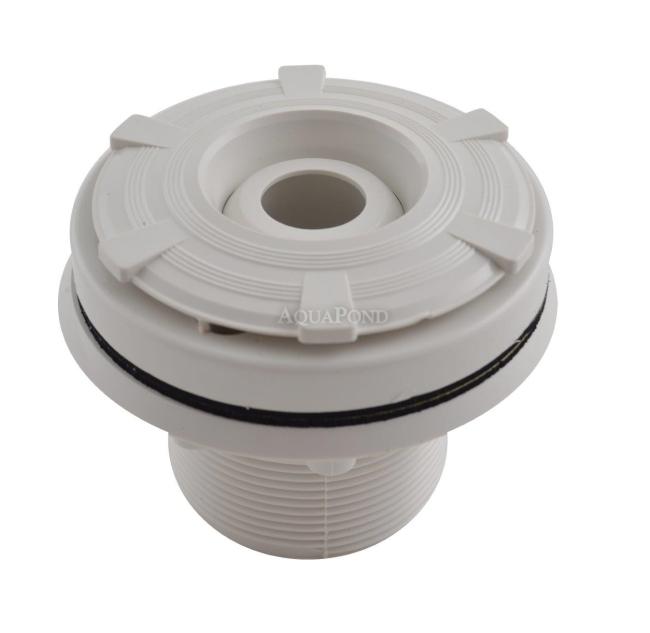

KRIPSOL Wall Return Jet for Liner Pools
The wall return jet is designed for liner pools. It is made of white ABS plastic, which is durable and resistant to changes caused by chemical and atmospheric influences. The jet is supplied with a 20 mm diameter ball. This ball is used to adjust the direction of the water flow.
The jet is used for water circulation and for returning filtered water from the filtration system back into the pool. It is installed in the wall opposite the skimmer, approximately 20–30 cm below the water surface, or in places where the pool water needs to be circulated. The jet must be adjusted so that it circulates the entire pool volume and prevents so-called "dead spots".
The grille and flange are secured with screws with brass threads, which extends service life and increases the strength of the sealing parts.
Package Contents
- Jet body with adjustable ball
- Decorative cover
- Seal set for liner pools
- Flange
- Lock nut
- Screw set
Technical Parameters
- For liner pools: Yes
- Material: ABS
- Color: White
- Connection: internal glue connection 50 mm or external thread 2"
- Insert: brass
- Dimensions: Ø 120 mm x 65 mm
- Water flow: 5 m3 / h
-
