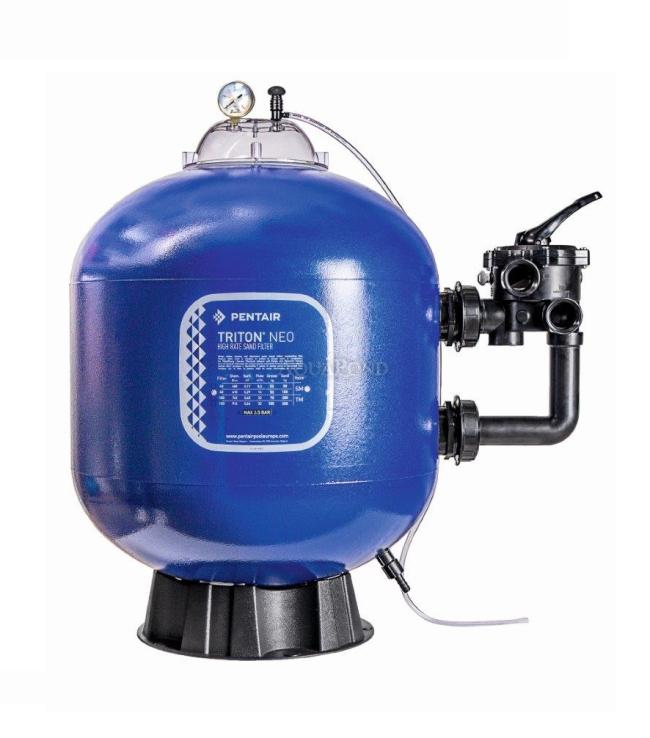

Triton Neo TR40 Clearpro filter tank on a base, diameter 480 mm, with a six-way side valve
Triton Neo TR40 Clearpro filter tank on a base, diameter 480 mm, with a six-way side valve
Description
Triton Neo Clearpro filter tanks are made of fiberglass, seamless, reinforced with a layer of polyester, equipped with a 6-way side valve and a pressure gauge, and mounted on a base. Read more
-
Triton Neo TR40 ClearPro filter tank on a base, 480 mm diameter, with 6-way side valve
Triton Neo ClearPro filter tanks are made of fiberglass, seamless, reinforced with a polyester layer, equipped with a 6-way side valve and a pressure gauge, and mounted on a base. Sand filters work on the natural principle of water filtration. Water passes through the layer of sand, which traps fine dirt particles. Over time, the sand becomes clogged and needs to be backwashed, which is what the six-way valve is for. By turning the valve to the sand washing position, we change the direction of water flow and flush the trapped dirt into the waste line. This process can be repeated throughout the entire service life of the sand, which is very long compared to other filtration methods.
ClearPro® is a patented technology from Pentair that achieves very high filtration levels, approximately 4x better than standard sand filtration. This quality is achieved thanks to new porous plastic collectors. These act as additional filters, creating an extra barrier against the smallest dirt particles. The result is exceptionally clean water.
Package contents
- Fiberglass filter tank
- 6-way side valve
- Pressure gauge
- Installation and operating instructions
- Base
Package does not include
- Connecting pipe between the pump and the filtration system
- Filter sand 0.6 - 1.2 mm / 25 kg (must be ordered separately)
- Pump
Technical specifications
- Product type: Filter tank
- Tank material: fiberglass
- Filling quantity: 75 kg
- Tank diameter: 480 mm
- Max. operating pressure: 3.5 bar
- Flow rate: 8.5 m3 / h
- Valve type: 6-way side
- Filtration area: 0.17 m2
- ClearPro filtration technology: Yes
- Base: Yes
- Weight: 13 kg
- Warranty period for Triton filter tank: 10 years

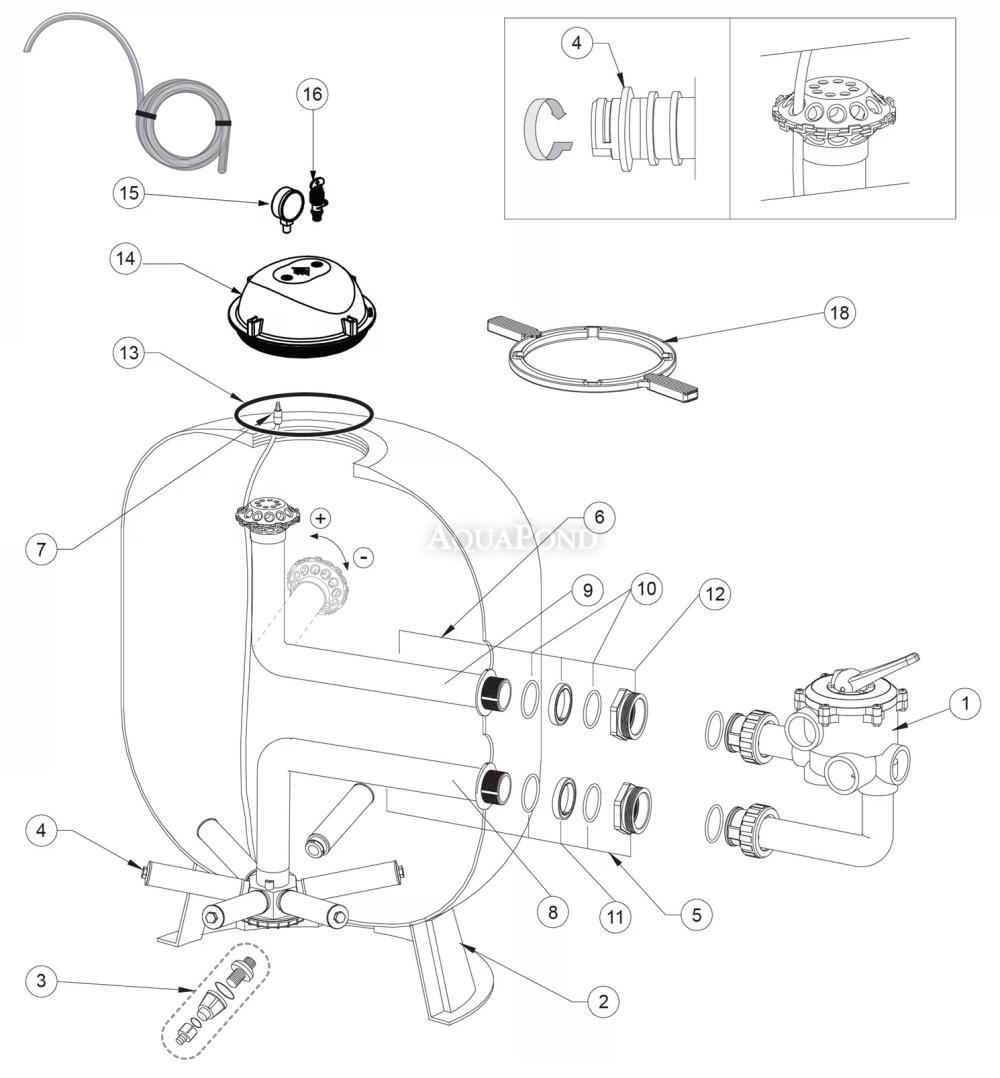

Spare parts list
The complete list of spare parts can be found here:
Spare parts - Triton Neo TR40 ClearPro filter tank on a base, 480 mm diameter, with 6-way side valve
-
