Touch Piezoelectric RGB Button - 2.5 m
Touch Piezoelectric RGB Button - 2.5 m
Description
Universal RGB button - 3 colors in one, with the option to choose blue, green, or red. Read more
Product code: 87123165
-

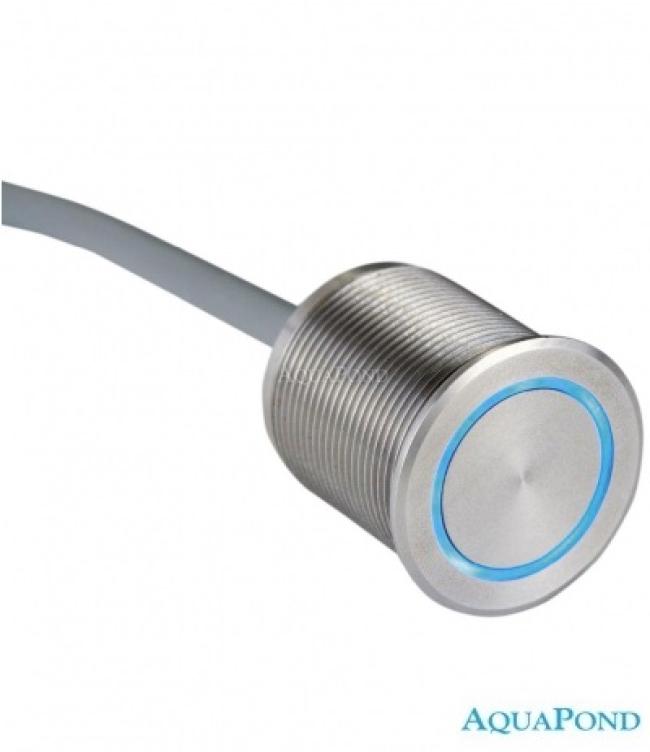

Touch Piezoelectric RGB Button - 2.5 m
Piezoelectric button with RGB backlighting and a 2.5 m cable.

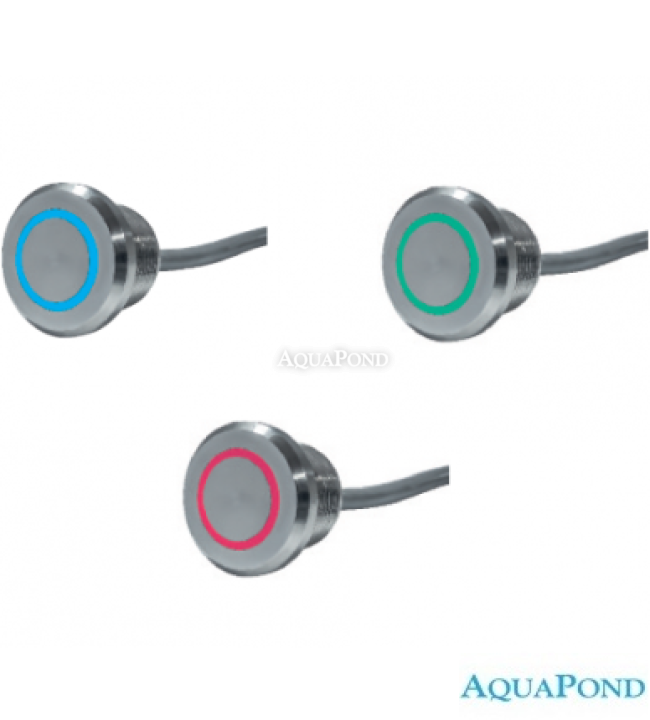

- Universal RGB button - 3 colors in one, selectable blue, green, red
- Very high-quality design
- IP69K electrical protection
- Supply cable length: 2.5 m
Technical Parameters
- Switching voltage: 1-24 V AC / DC
- Switching current: 1 A max.
- Electrical contact resistance when on: <20 ohm
- Electrical contact resistance when off: >5M ohm
- Actuation force: 3 - 5 N
- Switching time: 125 - 300 ms
- Operating temperature: -20°C - +70°C
- Storage temperature: -40 °C - +85 °C
- Mounting hole diameter: 22 mm
- Thread: M22x1
- Outer head diameter: 28 mm
- Protection rating: IP69K (both sides of the button)
- LED color: red / green / blue (R / G / B)
- LED voltage: 12 V DC
- LED current: < 20mA
- Button material: stainless steel 316L
- Connection cable: 6 x 0.14 mm2, length 2.5 m
- Warranty: 3 years
-
