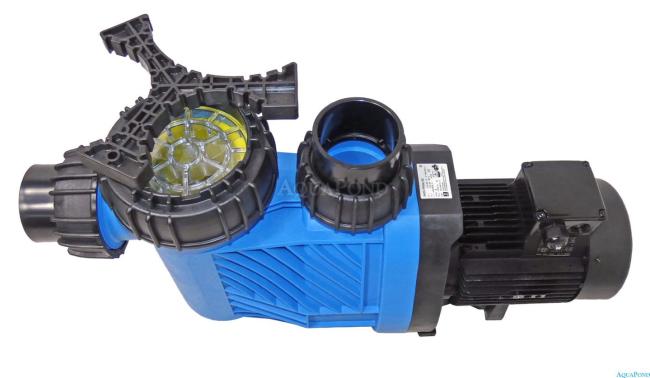

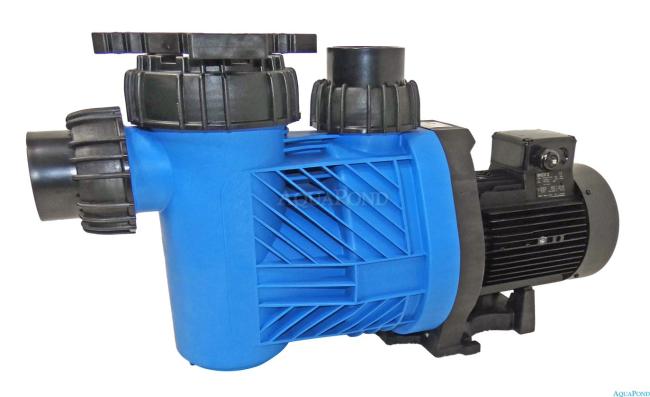

Speck Badu Prime 48 pool pump - 48 m3/h, 230 V, 3.45 kW
Speck Badu Prime 48 pool pump - 48 m3/h, 230 V, 3.45 kW
Description
High-quality self-priming pump. Suitable for more demanding filtration systems, e.g. with solar collectors. It is suitable for both fresh water and salt water with a salt concentration of up to 5 ... Read more
-
Pool Pump Speck Badu Prime 48 - 48 m3 / h, 230 V, 3.45 kW
High-quality self-priming pump. Housing reinforced with glass fibers. Suitable for more demanding filtration systems, e.g. with solar collectors. The pump can be used for salt water with a salt concentration of 0.5% (5 g of salt per liter of water). For higher concentrations, a pump marked "AK" must be used. Badu Prime 48 is self-priming, which means it can also be installed above the pool water level. The pump housing and impeller are made of hard polypropylene resistant to the chemical effects of pool water. In terms of design, the Badu Prime is also suitable for public and hotel pools where continuous operation is required. It has an easy-to-maintain coarse debris filter. It is characterized by a very long service life, smooth operation, and quiet running. Badu pumps also feature an external thermal fuse against overheating.
The Badu Prime pool pump with an output of 48 m3 is suitable for pools with a water volume from 190 to 210 m3.
Package Contents
- Pump with motor
- Cover with gasket and fastening nut
- Key for loosening and tightening the cover
- Internal debris basket (hair filter)
- Connection fittings
- Instructions
Power cable is not included.
Pump Connection
Technical Specifications
- Housing material: Polypropylene reinforced with glass fiber
- Noise level: 74.7 dB
- Motor protection: IP 55
- Impeller material: Plastic
- Max. operating temperature: 60 ° C
- Max. operating pressure: 2.5 bar
- Voltage: 230 V
- Suction / discharge connection: 110 / 110 mm
- Speed: 2840 rpm
- Power input: 3.45 kW
- Power output: 2.60 kW
- Flow rate: 48 m3 / h
- Self-priming: Yes
- Weight: 41 kg
- Use: Suitable for fresh and salt water with a salt concentration up to 5 g/l
- For salt water up to 5 g / l (<0.5%): Yes
- For salt water above 5 g / l (> 0.5%): AK version
Spare Parts List
You can find the complete list of spare parts here:
-
