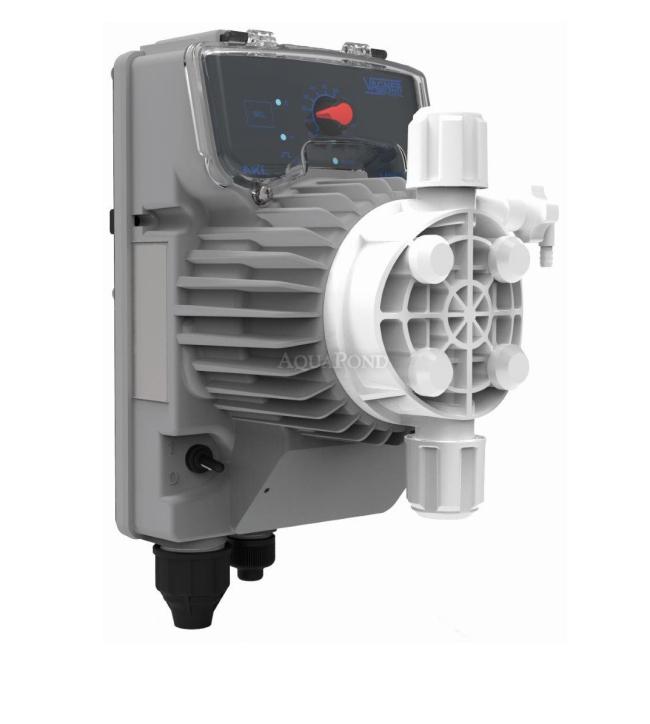

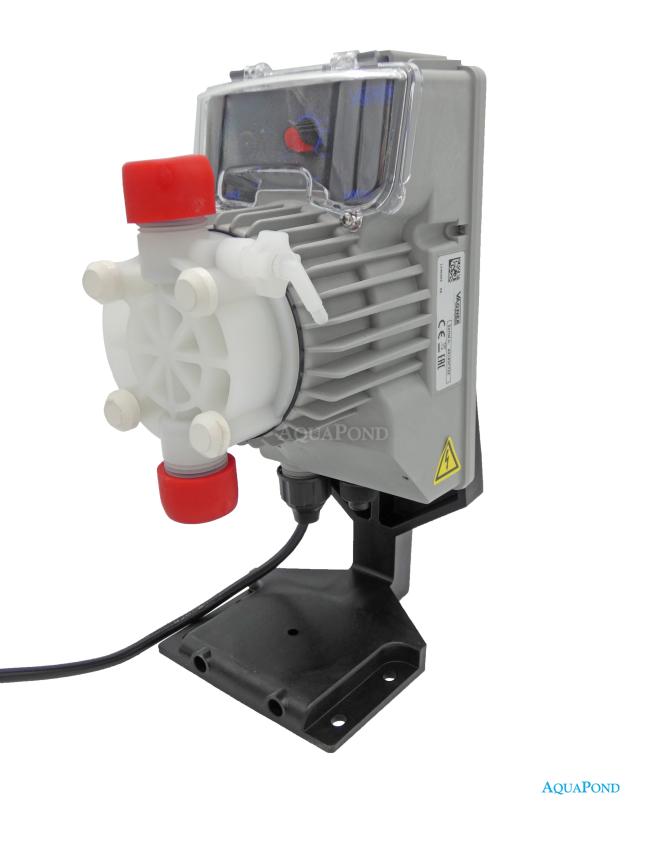

SEKO Tekna AKL 803 Dosing Diaphragm Pump

SEKO TEKNA AKL electromagnetic dosing diaphragm pump - analog model with adjustable output from 0 - 100% or 0 - 20%. This pump is designed for the K800 automatic dosing station. The set includes the dosing pump and connection fittings.

We recommend installing this station below the water level to prevent hydraulic siphoning of chemicals through the magnetic pump.

Technical Parameters

• Output: 20 - 54 l / h
• Pressure: 0.1 - 5 bar
• Max. frequency: 300 strokes / min
• Connection: 3/8"
• Power supply: 230 V, 50 Hz
• Pump head: PVDF / Balls: ceramic
• Diaphragm: PTFE
• Accessories: PVC / PVDF
• Sealing: FPM / EPDM
• Easy installation: Yes
• Digital display: No
