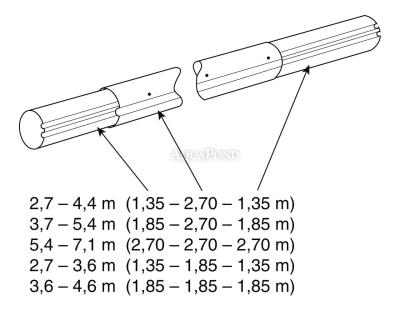

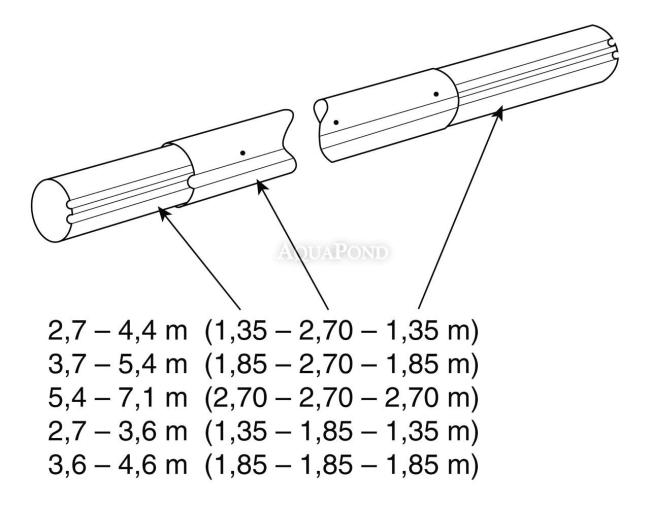

Reel system 5.4 - 7.1 m with electric drive and telescopic pole - adjustable height
Reel system 5.4 - 7.1 m with electric drive and telescopic pole - adjustable height
Description
Includes: electric drive with microswitches, 12 V transformer, control panel with lockable switch and remote control. Read more
Product code: 6019371
-

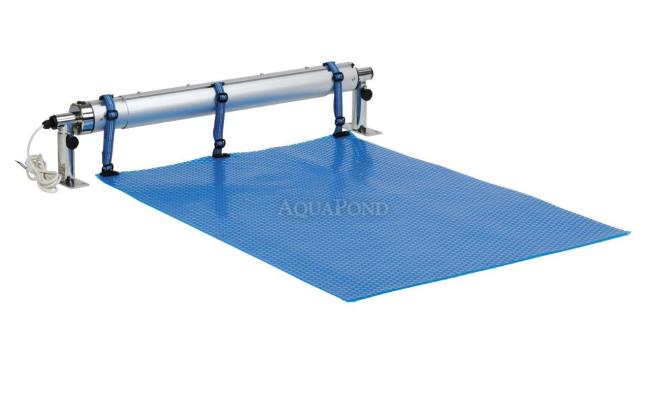

Reel System 5.4 - 7.1 m with electric drive and telescopic pole - adjustable height
This unit includes an electric drive with a microswitch for setting the end positions, a 12 V transformer, an electric control box, a control panel with a lockable switch and a remote control. The electric drive has a 1.5 m cable for connection and is designed to be installed inside the winding tube of the reel system.
- Remote control of unwinding and winding the cover - using a key fob.
- The stop position of the reel system in the correct position is set during installation using limit switches.
Technical Parameters
- Power supply: 230 V/50 Hz
- Protection rating: IP 55 • Motor: 7 rpm, 35 Nm
- Motor voltage: 12 V DC
- Motor overload shut-off
- The motor is equipped with limit switches that distinguish the direction of rotation
- Change of winding direction
Spare Parts List
The complete list of spare parts can be found here:
Spare parts for reel system with electric drive and telescopic pole - 5.4 - 7.1 m CLASSIC REEL
Downloads
Vágner Pool Catalog 2015, p. 241.pdf
Control of electric winding device v2.0 - 2015 - device description - technical data.pdf
