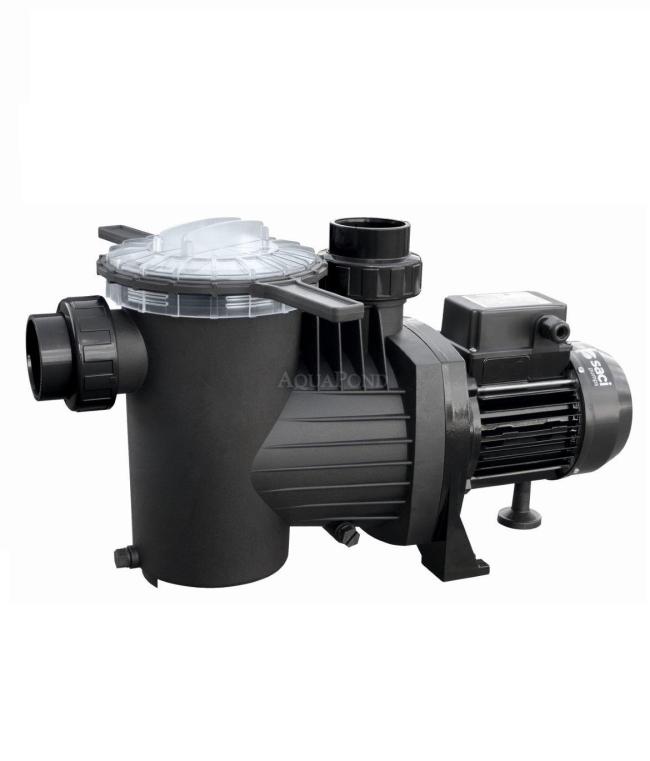

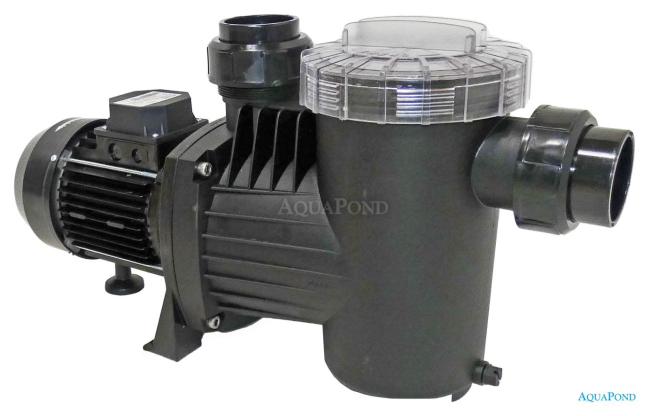

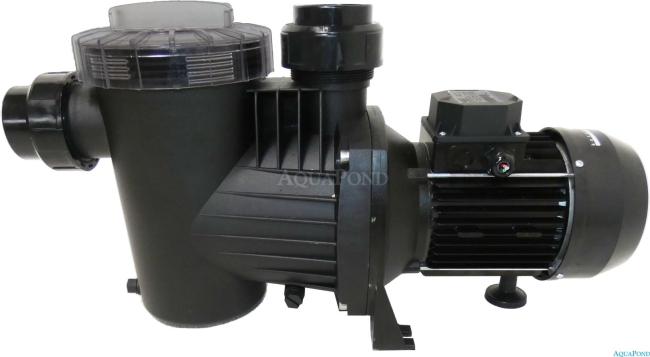

Pool Pump Winner 150 M - 21 m3/h, 230 V, 1.00 kW
Pool Pump Winner 150 M - 21 m3/h, 230 V, 1.00 kW
Description
Self-priming pool pump, suitable for use in pools with fresh, salt, and seawater. Thanks to the pump body and diffuser made of polypropylene reinforced with fiberglass, the pump offers above-standard ... Read more
-
Pool Pump Winner 150 M - 21 m3 / h, 230 V, 1.00 kW
Self-priming pool pump also suitable for pools with saltwater treatment. Thanks to the pump housing and diffuser made of polypropylene reinforced with glass fiber, the pump offers an above-standard service life. The main advantages of these pumps are the large-capacity basket for coarse dirt, low energy consumption, quality service, and availability of spare parts. Motor protection rating: IP55. The pool pump is also suitable for saltwater treatment.
- Every manufactured unit is tested (it has its own registration "birth certificate", with the measured technical data attached to the back of the manual)
- Thanks to the pump housing and diffuser made of polypropylene reinforced with glass fiber, the pump offers an above-standard service life
- The two-hand grip wrench ensures easy loosening and tightening of the transparent prefilter lid
- The seal is fitted directly onto the basket of the high-capacity prefilter
- The stainless steel (AISI 316) pump shaft does not come into contact with the pumped water
- Also suitable for saltwater treatment
- Motor bearings with lifetime lubrication for long service life and quiet operation
- Lower operating temperature of the motor
Package Contents
- Pump with motor
- Cover with seal
- Internal dirt basket (hair filter)
- Two 63 mm fittings for suction and discharge
- Tightening wrench for the cover
- Instruction manual
Connection to the Filtration Circuit
The pump is connected to the filtration system using the supplied fittings. A 63 mm PVC pipe can be glued into them. If you need to make changes to the pool piping layout, use PVC installation materials to connect the pumps to the filtration circuit.

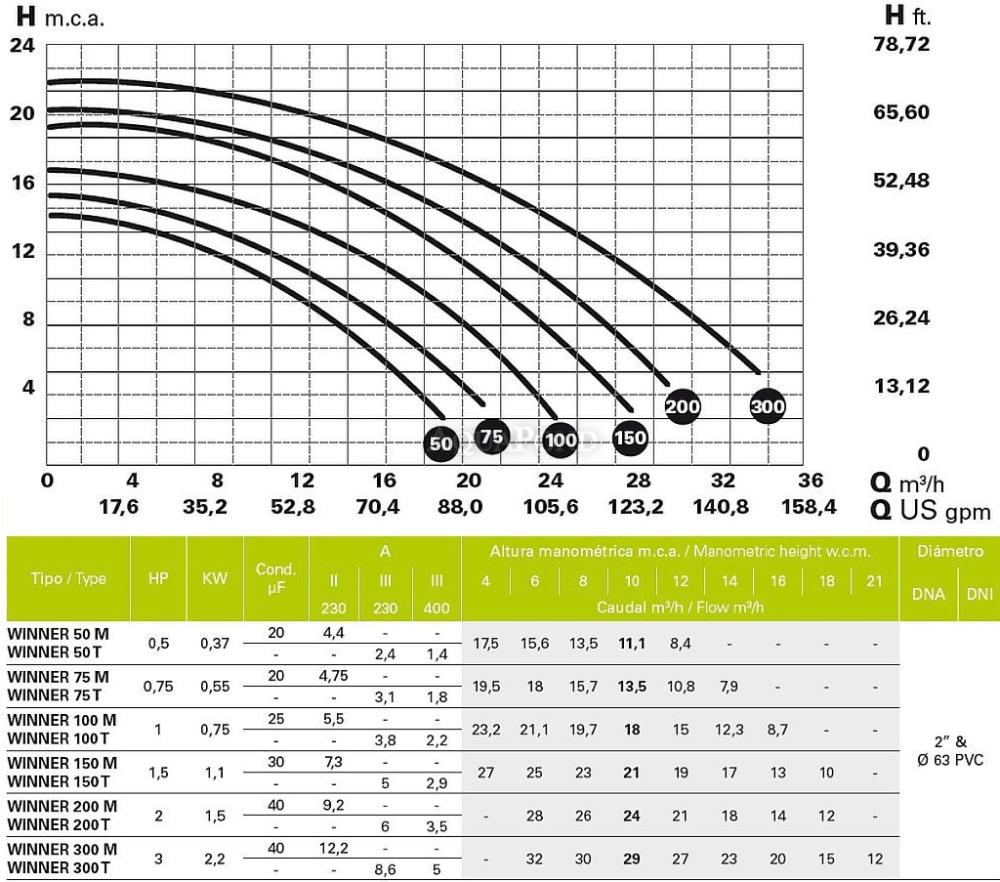

Technical Parameters
- Product type: Filtration pump
- Seal segment material: Carbon-ceramic
- Dimensions: 580 x 220 x 325 mm
- Motor protection rating: IP 55
- Weight: 17 kg
- Power output: 1.1 kW
- Speed: 2850 rpm
- Flow rate: 21 m3 / h
- Power input: 1.51 kW
- Voltage: 230 V (power cable not included)
- Motor bearings with lifetime lubrication: Yes
- Each unit tested: Yes
- Suction / discharge connection - glued: 63 / 63 mm
- Self-priming: Yes
- Prefilter basket material: Plastic
- Impeller material: Plastic
- Max. working pressure: 2.5 bar
- Prefilter: Yes
- Max. water temperature: 40 ° C
- Use: Suitable for both fresh and salt water with salt concentration up to 5 g/l, as well as for seawater with salt concentration above 5 g/l
- For salt water up to 5 g/l (<0.5%): Yes
- For seawater above 5 g/l (>0.5%): Yes
Spare Parts List
You can find the complete list of spare parts here:
Spare Parts for WINNER 150M Pump
-
