iGarden Aquagem Mr.Pure Medium Salt Chlorinator MPS14 - pH

Premium salt chlorination unit with pH measurement and dosing. The unit operates with salinity of 1 - 5 kg / m² (1000 - 5000 ppm), ideal salinity 3 kg / m³ (3000 ppm). The device can be controlled manually directly on the unit, via Wi-Fi connection using the app, or connected via Modbus RS485 to a smart home system. For pools up to 50 m³ with salinity of 3000 ppm.

Chlorine output at 100% power and salinity of 3000 ppm: 11 g / h
Chlorine output at 130% power and salinity of 3000 ppm: 14 g / h
Chlorine output at 100% power and salinity of 1000 ppm: 9 g / h

What is iGarden?

iGarden is a modern brand focused on smart solutions for gardens and pools, bringing automation and convenience to outdoor spaces. The core idea of iGarden is to connect technology with design and lifestyle - the goal is to make pool or garden maintenance simple, efficient, and as low-effort as possible. iGarden products include robotic cleaners, smart filtration systems, pumps, heat pumps, salt chlorinators, and robotic lawn mowers, all of which together create an integrated ecosystem. Overall, iGarden combines IoT technologies, artificial intelligence, and smart sensors to turn the garden or pool into a comfortable, clear, and automated environment. The user has control and an overview through the app, which serves as the central control point for all devices. Through the app, it is possible to monitor the pool water condition, start or schedule the robotic cleaner, set the lawn mowing schedule, regulate heat and filtration units as well as salt chlorinators, and even track energy consumption or the status of individual devices. The app also allows users to receive notifications about required maintenance and automatically optimize device operation according to current conditions - for example, weather or pool usage intensity. This interconnected system significantly simplifies garden and pool care, saves time and energy, and at the same time increases the comfort and aesthetics of the outdoor environment. This way, the user can relax and enjoy their outdoor space without unnecessary manual work.

Our product range from iGarden

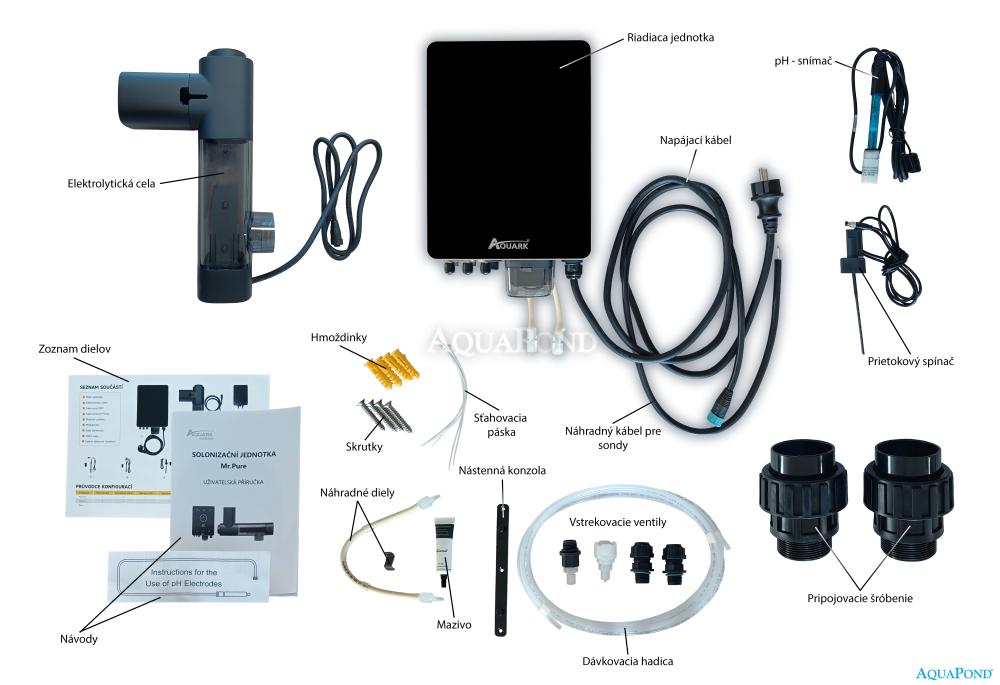

Package contents

Control unit with power cable 180 cm
Electrolytic cell with connecting cable 180 cm
pH probe with cable 190 cm
Flow switch with cable 180 cm
Teflon tape
Bracket with screws and wall plugs
Cable ties
Transparent chemical dosing tube 5 m (6 x 4 mm)
Injection valve
Weight for the pH solution container (pH solution is not included)
Manual

Water chemistry

The water chemistry must be balanced before the unit is started. The recommended concentrations are listed in the table below. The water should be checked regularly, and surface corrosion and damage should be minimized.

Recommended concentration

Salt: 3 - 4 g / l
Salt (low content): 2 g / l
Free chlorine: 1.0 - 3.0 ppm
pH: 7.0 - 7.4
Cyanuric acid (stabilizer): 20 - 30 ppm (max. 0 ppm in indoor pools)
(add only if necessary)
Total alkalinity: 80 - 120 ppm
Water hardness: 200 - 300 ppm
Metals: 0 ppm
Algicide: can be added, copper-free

Technical specifications

Dimensions (L x W x H): 202 x 270 x 75 mm
Max. chlorine output (salinity: 3000 ppm): 14 g / h
Pool volume: 20 - 50 m³
Recommended salinity: 2 - 5 (3 g / l recommended)
Input AC voltage: 100 - 240 V, 50 / 60 Hz
Max. DC output voltage: 12 V
Max. power input: 80 W
Dosing pump: integrated
Recommended water flow: 5 - 20 m³ / h
Operating water temperature: 10 - 40 °C
Air temperature: - 5 to + 42 °C
Access: Modbus RS485 / Wi-Fi / Contact
Pressure in the electrolytic cell: 3.0 bar
Protection rating: IPX4
Warranty: 5 years on the salt chlorination unit, 1 year warranty on the pH probe
