Hugo Lahme wall fitting 1½" int. for hydromassage nozzle, bronze, depth 240 mm, connection 1" int. and ½" int., for liner and ceramic pools

Hugo Lahme priechod stenou 1½“ int. pre hydromasážnu trysku, bronz,hĺbka 240 mm, napojenie 1“ int. a ½“ int., pre fóliové a keramické bazény

Hugo Lahme wall fitting 1½" int. for hydromassage nozzle, bronze, depth 240 mm, connection 1" int. and ½" int., for liner and ceramic pools

Description

Allows the hydromassage jet to be mounted and connected through the pool wall. Read more

Product code: HL8669851

Description
Related products

Hugo Lahme wall fitting 1½“ int. for hydromassage jet, bronze, depth 240 mm, connection 1“ int. and ½“ int., for liner and tiled pools

The wall fitting is a professional installation component designed for mounting hydromassage jets through the wall of a pool, hot tub, or wellness facility. Thanks to its 240 mm depth and multiple connection options, it offers flexibility when installing various types of jets and piping systems.

It is intended for:

Outdoor and indoor pools;
Luxury private pools;
Public pools;
Pools with water attractions;
Hydromassage hot tubs;
Water parks, water attractions;
Sports and rehabilitation centers;
Hotels and sanatoriums.

This model is equipped with:

1½“ internal thread for main wall mounting
1“ internal thread for main water connection

The body of the wall fitting is made of a durable, pressure-stable, and chemically resistant material, ensuring long service life even under demanding operating conditions.

Depth: 240 mm
Connection: 1½“ internal thread
Main water connection: 1“ internal thread
Material: bronze
Use: pools, hot tubs, hydromassage systems

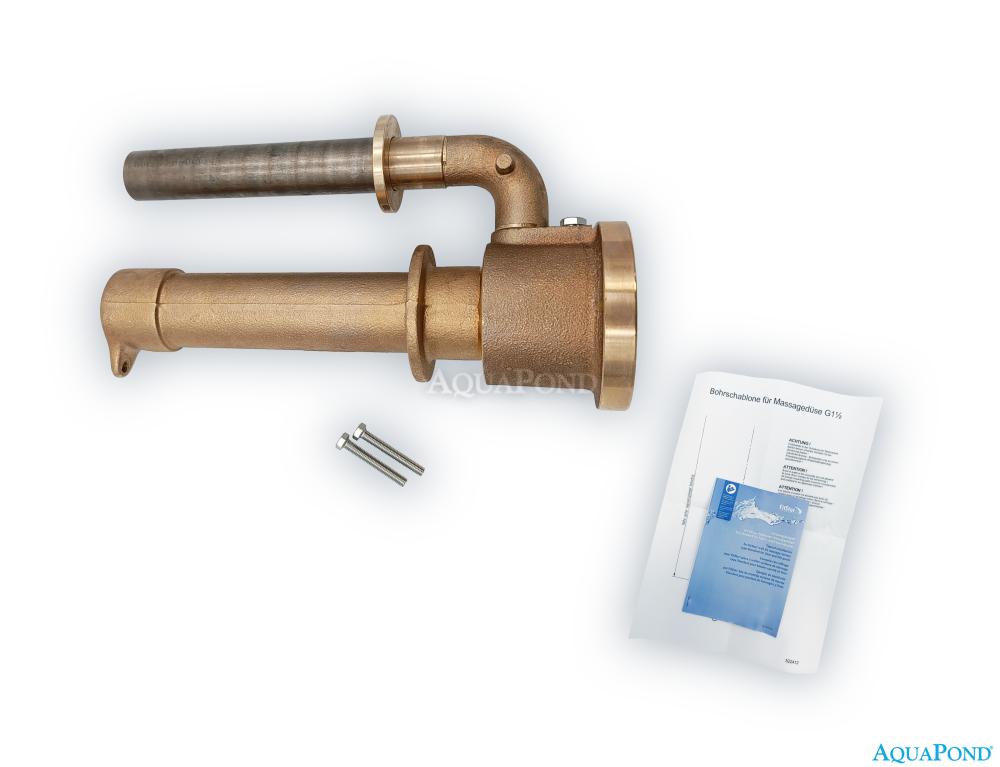

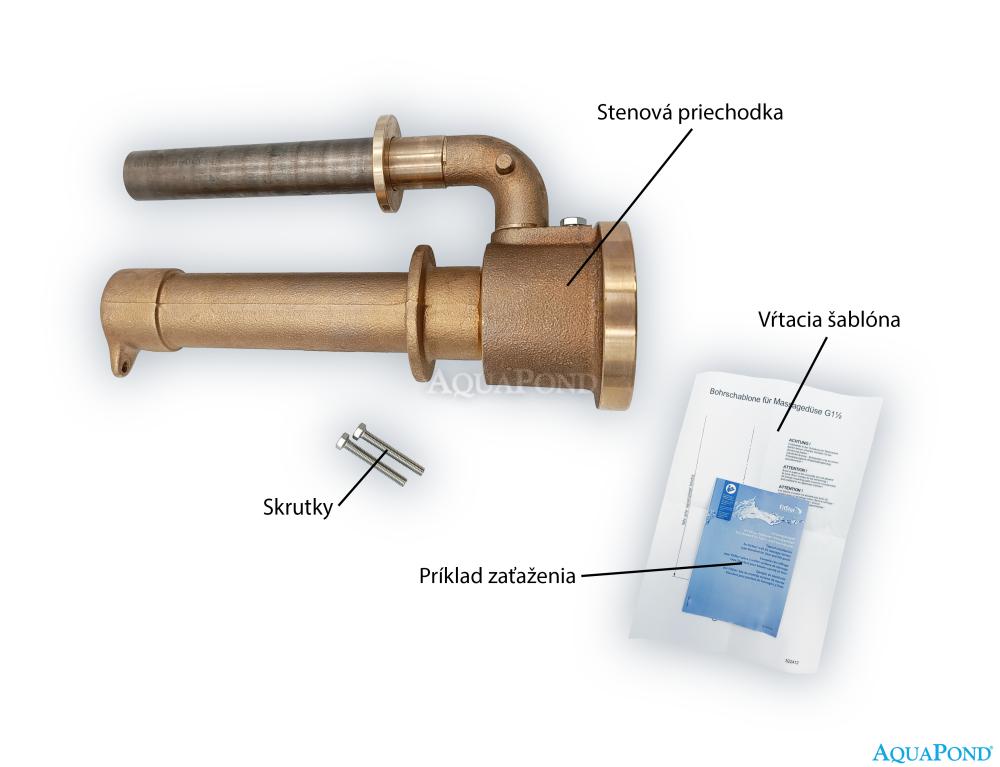

Package contents

Wall fitting
Screws
Drilling template
Load example

Features

Pool detail - transition BUILT-IN HOUSING 8669851 is designed for the installation of hydromassage systems, water return, and pool injection. The transition is an important part of the STANDARD pool hydromassage system.

BUILT-IN HOUSING is made of durable, corrosion-resistant bronze. It has a special opening for air injection. It connects to hydromassage jets 8669221 and 8669421.

Outer housing length - 240 mm; connection diameter – Ø1½”; injection opening diameter – Ø½”; output up to 10 m³/h. Installation on the side of the pool.

Note: When installing the flow into built-in housing 8662251, it is necessary to purchase the additional flange 8669551.

Manufacturer’s warranty - 2 years.
