Hugo Lahme inlet fitting, bronze, 2" external thread, 40 mm length, for ceramic and prefabricated pools
Hugo Lahme inlet fitting, bronze, 2" external thread, 40 mm length, for ceramic and prefabricated pools
Description
The inlet nozzle ensures the return of water from the filtration circuit back into the pool. Read more-
Hugo Lahme inlet fitting, bronze, external thread 2”, length 40 mm, for ceramic and prefabricated pools
Nozzle 3782421 is designed for return flow and for injecting the water jet from massage systems into the pool. The nozzle is an important part of the pool hydromassage system.
They are usually placed opposite the skimmer or in areas where the pool water needs to be circulated. The nozzles must be adjusted so that the entire pool volume circulates and so-called “dead spots” do not form.
It is intended for:
- Outdoor and indoor pools;
- Luxury private pools;
- Public pools;
- Pools with water attractions;
- Hydromassage whirlpools;
- Concrete pools;
- Water parks, water attractions;
- Sports and rehabilitation centers;
- Hotels and sanatoriums.
Features
The INLET RING is made of durable acid-resistant stainless steel AISI 316L and bronze. Thanks to the special design of the nozzle, the hydromassage water jet is directed to the side.
- Outer diameter of the housing - Ø98 mm;
- length – 40 mm;
- spray opening width - 50 mm;
- connection diameter – Ø2”.
- Flow rate up to 4.5 m³/h.
Installed on the side of the pool or on the steps.
Exclusive luxury design and flawless product quality.
Note: nozzle 3782421 is installed in ceramic and prefabricated pools.
Manufacturer’s warranty - 2 years.

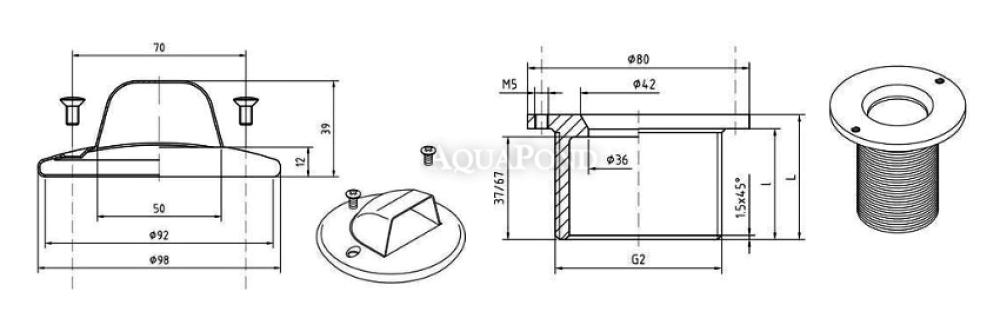

Dimensions of the inlet housing for nozzle 3782421
Advantages of the nozzle
- Made of durable stainless steel and bronze;
- Flawless product quality;
- UV resistant;
- Acid resistant;
- Resistant to aggressive water chemicals;
- Especially long-lasting and durable;
- Attractive exclusive design;
- Easy installation and maintenance.
The product is available only on order. Once confirmed, it can no longer be changed or canceled.
-
